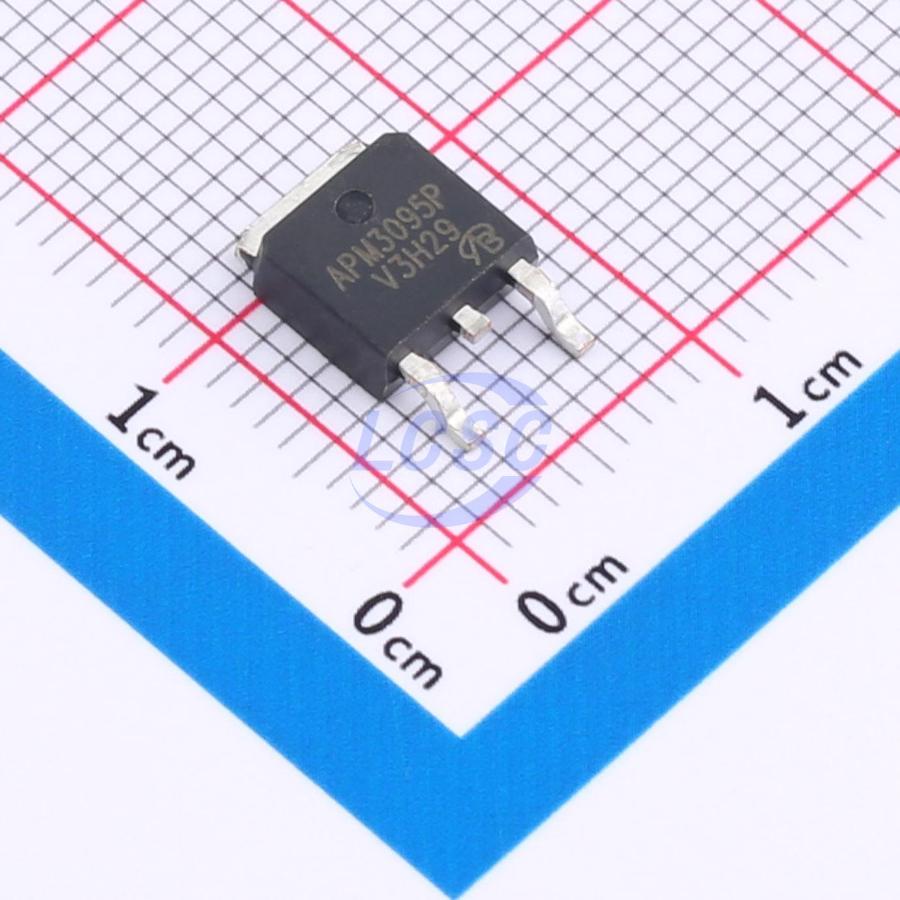

APM3095PUC-TRL-VB
P-Channel 30V 38A 25W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 30V 38A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM3095PUC-TRL-VB
- Store part #
- C558092
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C558092
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.23 | ₹64.23 |
| 10+ | ₹52.91 | ₹529.10 |
| 30+ | ₹48.12 | ₹1,443.60 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹64.23
₹64.23
excl. GST
₹75.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
APM3095PUC-TRL-VB
₹64.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 255pF
- Current - Continuous Drain(Id)
- 38A
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 33mΩ@10V;46mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 27nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.383 g
Overview
Applications
- Load Switch - Notebook Adapter Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% Rg tested
- 100% unclamped inductive switching tested
- RoHS compliant
