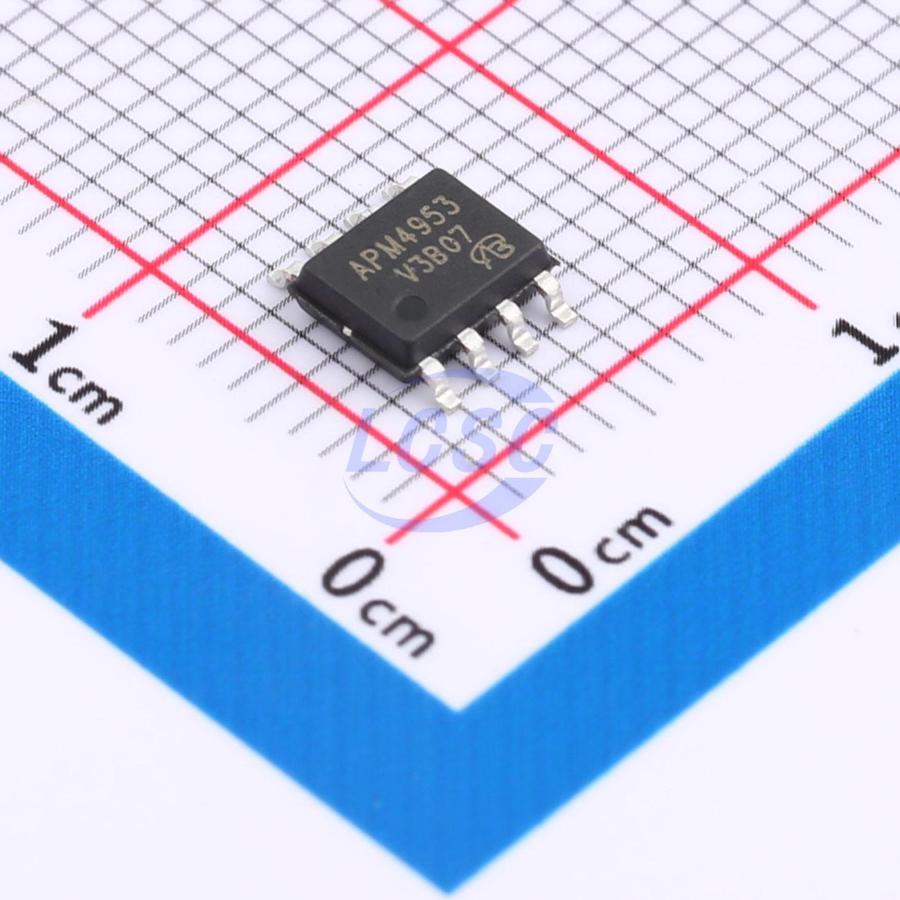

APM4953KC-TRL-VB
P-Channel 30V 7.3A 2.5W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH ARR 30V 7.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM4953KC-TRL-VB
- Store part #
- C7463685
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C7463685
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.10 | ₹52.10 |
| 10+ | ₹41.17 | ₹411.70 |
| 30+ | ₹36.55 | ₹1,096.50 |
| 100+ | ₹30.68 | ₹3,068.00 |
| 500+ | ₹28.15 | ₹14,075.00 |
| 1,000+ | ₹26.68 | ₹26,680.00 |
1 × ₹52.10
₹52.10
excl. GST
₹61.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
APM4953KC-TRL-VB
₹52.10 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 7.3A
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 185pF
- RDS(on)
- 35mΩ@10V;40mΩ@4.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 15nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.122 g
Overview
Applications
- Load Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% unclamped inductive switching (UIS) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI9933ADY-T1-E3-VB#C5441250VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 22 | ₹51.70 · 22 in stock | View |
 | AP4953M-VB#C693138VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 389 | ₹34.98 · 389 in stock | View |
 | FDS9933A-NL-VB#C7463643VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 256 | ₹54.63 · 256 in stock | View |
 | TSM4953DCS RL-VB#C7494513VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 19 | ₹52.93 · 19 in stock | View |
 | SM4927BSKC-TRG-VB#C5456602VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹74.37 · 45 in stock | View |
