VBsemi ElecDatasheet (PDF)

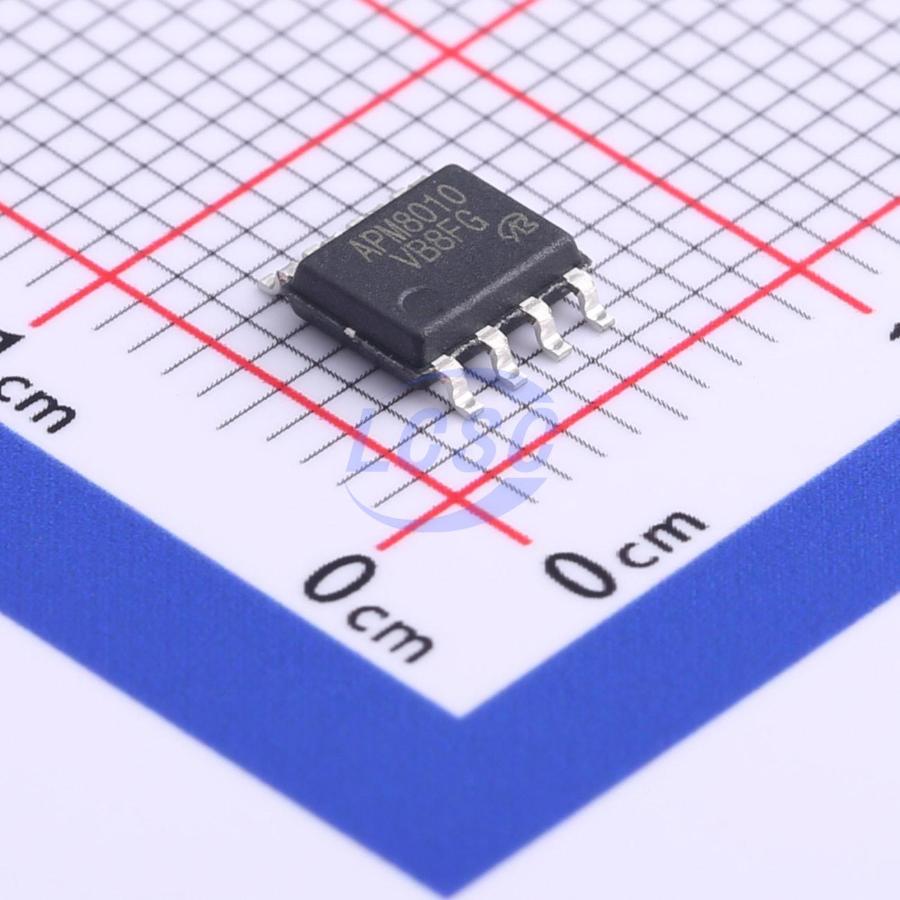

APM8010KC-VB
N-Channel 100V 6.4A 3.1W Surface Mount SO-8
SO-8RoHSSold out at source
MOSFET N-CH 100V 6.4A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM8010KC-VB
- Store part #
- C709920
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C709920
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.45 | ₹96.45 |
| 10+ | ₹81.21 | ₹812.10 |
| 30+ | ₹73.59 | ₹2,207.70 |
| 100+ | ₹65.96 | ₹6,596.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹96.45
₹96.45
excl. GST
₹113.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
APM8010KC-VB
₹96.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 160pF
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 6.4A
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 36mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
Applications
- Primary Side Switch
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- Extremely Low Qgd for Switching Losses
- 100 % Rg Tested
- 100 % Avalanche Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7853TRPBF-VB#C7463450VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 13 | ₹120.60 · 13 in stock | View |
 | SI4482DY-T1-E3-VB#C5441244VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 5 | ₹96.22 · 5 in stock | View |
 | AM4492N-T1-PF-VB#C5456476VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 62 | ₹77.51 · 62 in stock | View |
 | IRF7495TRPBF-VB#C7429018VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 4 | ₹81.92 · 4 in stock | View |
 | APM8010KC-TRL-VB#C7463594VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 134 | ₹82.13 · 134 in stock | View |
