VBsemi ElecDatasheet (PDF)

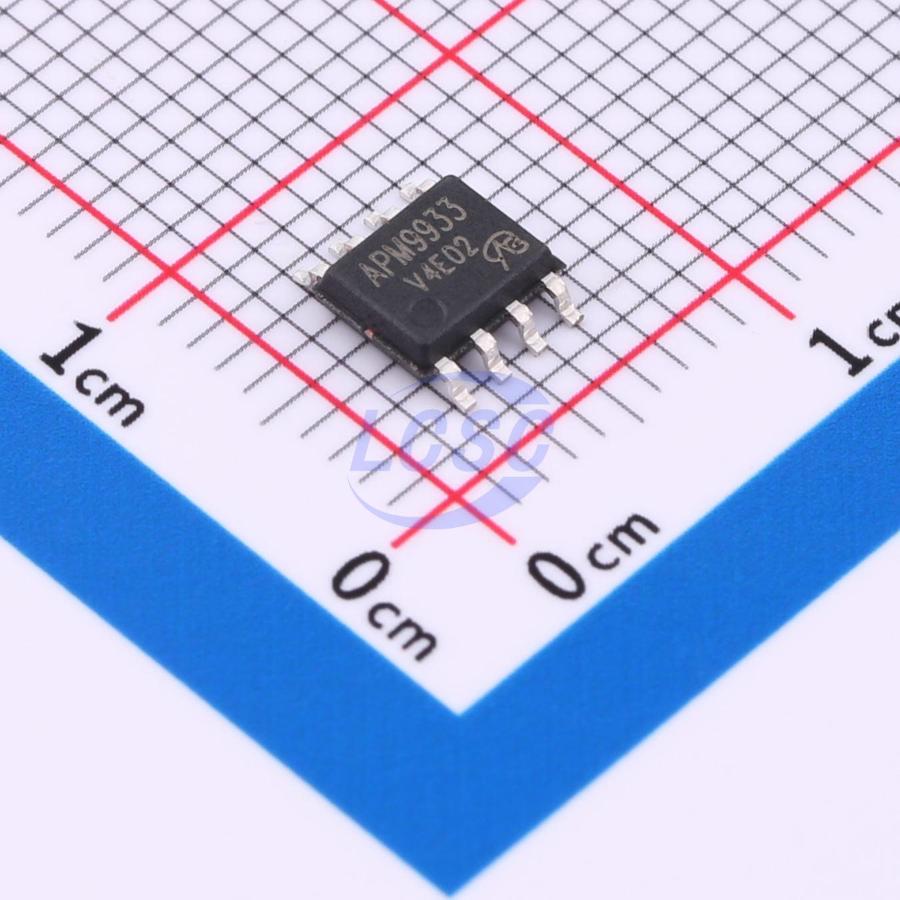

APM9933KC-TRL-VB
P-Channel 30V 7.3A 5W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 7.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APM9933KC-TRL-VB
- Store part #
- C22389502
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389502
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.84 | ₹50.84 |
| 10+ | ₹39.91 | ₹399.10 |
| 30+ | ₹35.30 | ₹1,059.00 |
| 100+ | ₹29.41 | ₹2,941.00 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 1,000+ | ₹25.22 | ₹25,220.00 |
1 × ₹50.84
₹50.84
excl. GST
₹59.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
APM9933KC-TRL-VB
₹50.84 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 7.3A
- Output Capacitance(Coss)
- 215pF
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 5W
- Reverse Transfer Capacitance (Crss)
- 135pF
- RDS(on)
- 35mΩ@10V;40mΩ@4.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 32nC@10V;15nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V;3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
Applications
- Load Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% single-pulse avalanche energy tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM4927BSKC-VB#C693229VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 1 | ₹75.62 · 1 in stock | View |
 | VBZA4805#C700594VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹73.94 · 50 in stock | View |
 | CEM4953-VB#C558105VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 92 | ₹56.00 · 92 in stock | View |
 | FDS4935A-NL-VB#C5878791VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 38 | ₹74.37 · 38 in stock | View |
 | HM4803-VB#C19632119VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 40 | ₹52.93 · 40 in stock | View |
