VBsemi ElecDatasheet (PDF)

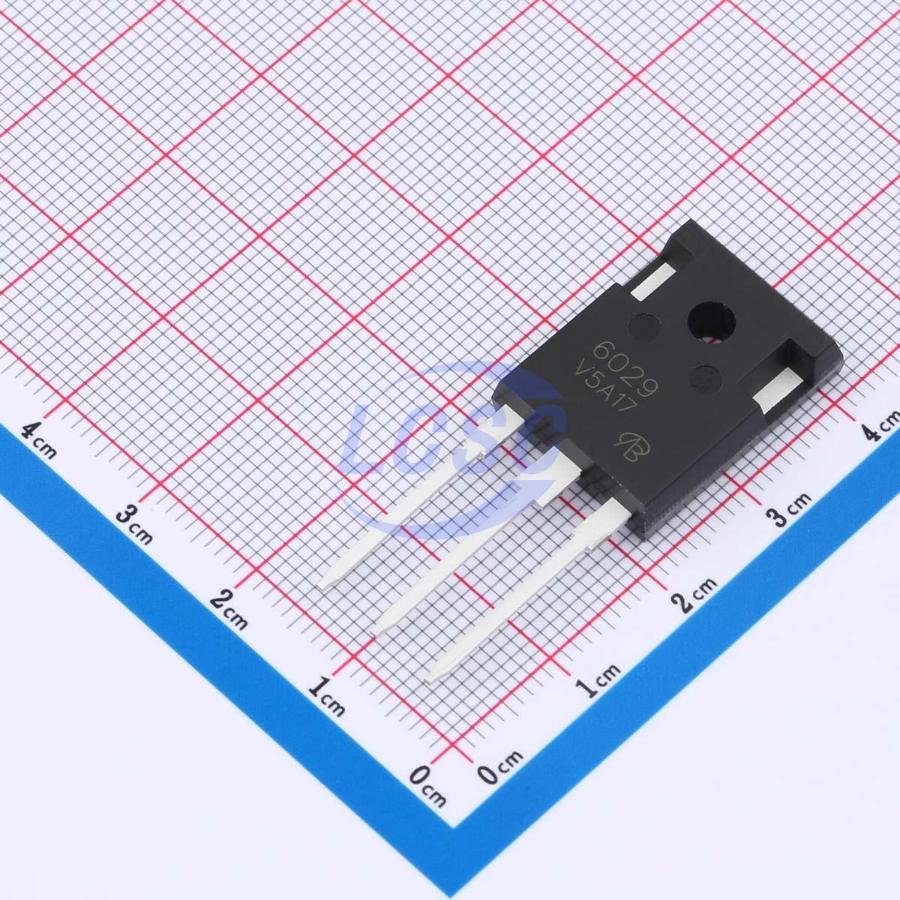

APT6029BLLG-VB
N-Channel 600V 20A 205W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 600V 20A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- APT6029BLLG-VB
- Store part #
- C45350903
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C45350903
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹479.64 | ₹479.64 |
| 10+ | ₹424.52 | ₹4,245.20 |
| 30+ | ₹353.70 | ₹10,611.00 |
| 90+ | ₹318.39 | ₹28,655.10 |
| 600+ | ₹302.46 | ₹1,81,476.00 |
| 900+ | ₹295.58 | ₹2,66,022.00 |
1 × ₹479.64
₹479.64
excl. GST
₹565.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 30 per tube
APT6029BLLG-VB
₹479.64 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20A
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 1.44nF
- Pd - Power Dissipation
- 205W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 96nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.24 g
