ANPEC

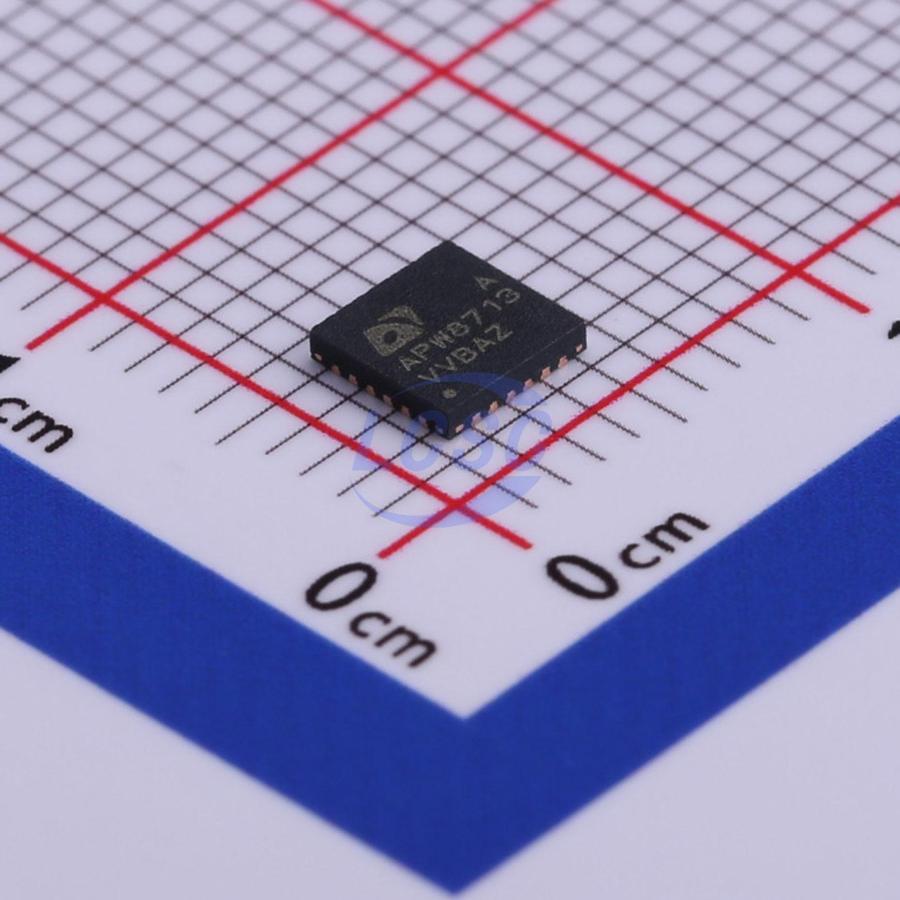

APW8713AQBI-TRG

Step-down type 100kHz~1MHz Adjustable 8A 800mV~13.2V QFN-24(4x4) Voltage Regulators - DC DC Switching Regulators

QFN-24(4x4)RoHSActive

Manufacturer: ANPEC
Manufacturer part #: APW8713AQBI-TRG
Store part #: C122485
Package / case: QFN-24(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,584 in stock

#C122485

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹129.95	₹129.95
10+	₹104.53	₹1,045.30
30+	₹91.92	₹2,757.60
100+	₹79.31	₹7,931.00
500+	₹69.97	₹34,985.00
1,000+	₹66.07	₹66,070.00

Quantity (min 1)

1 × ₹129.95

₹129.95

excl. GST

₹153.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

APW8713AQBI-TRG

₹129.95 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 100kHz~1MHz
Number of Outputs: 1
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~28V
Switch tube (built-in/external): Built-in
Output Current: 8A
Output Voltage: 800mV~13.2V
Quiescent Current: 700uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.212 g

Overview

APW8713A is an 8A synchronous buck converter integrating a 30mΩ N-channel high-side MOSFET and a 9mΩ low-side MOSFET. The device steps down high voltage to low voltage for powering chipsets or memory in notebook computers. The APW8713A delivers excellent transient response and accurate DC voltage output in both PFM and PWM modes. In PFM mode, the device achieves very high efficiency from light to heavy loads, with switching frequency modulated by the load. In PWM mode, the converter operates at a near-constant frequency to meet low-noise requirements. The device features precise current limiting, output undervoltage, and output overvoltage protection, making it suitable for a wide range of applications. A power-on reset function monitors the VLDO pin voltage to prevent false triggering during power-up. The device offers an externally adjustable soft-start function and an integrated output discharge method for soft-stop. The soft-start function ramps up the output voltage through a programmable timing sequence to reduce inrush current. The soft-stop function actively discharges the output capacitor. The APW8713A is available in a TQFN4x4-23 package.

Applications

Laptops
Tablets
Handheld portable devices
All-in-one PCs
Set-top boxes
LCD TVs

Key features

Output voltage adjustable from +0.8V to +12V
0.8V reference voltage
±1% accuracy over full temperature range
Input battery voltage operating range: +2.7V to +28V
20mA LDO with fixed 5.3V output
Power-on reset monitoring on LDO pin
Excellent line and load transient response
Pulse frequency modulation mode for improved light-load efficiency
Programmable PWM frequency range: 100kHz to 1000kHz
Integrated N-channel MOSFET for high-side switching with 30mΩ on-resistance at LDO=5V
Integrated N-channel MOSFET for low-side switching with 9mΩ on-resistance at LDO=5V
Integrated P-channel MOSFET for bootstrap forward
Externally adjustable soft-start and soft-stop
Selectable forced PWM or automatic PFM/PWM mode
Power-good monitoring
70% undervoltage protection
125% overvoltage protection
Current limiting protection (sensed via low-side MOSFET on-resistance)
Overtemperature protection
TQFN-23 4mm×4mm package
Lead-free, RoHS-compliant devices available
