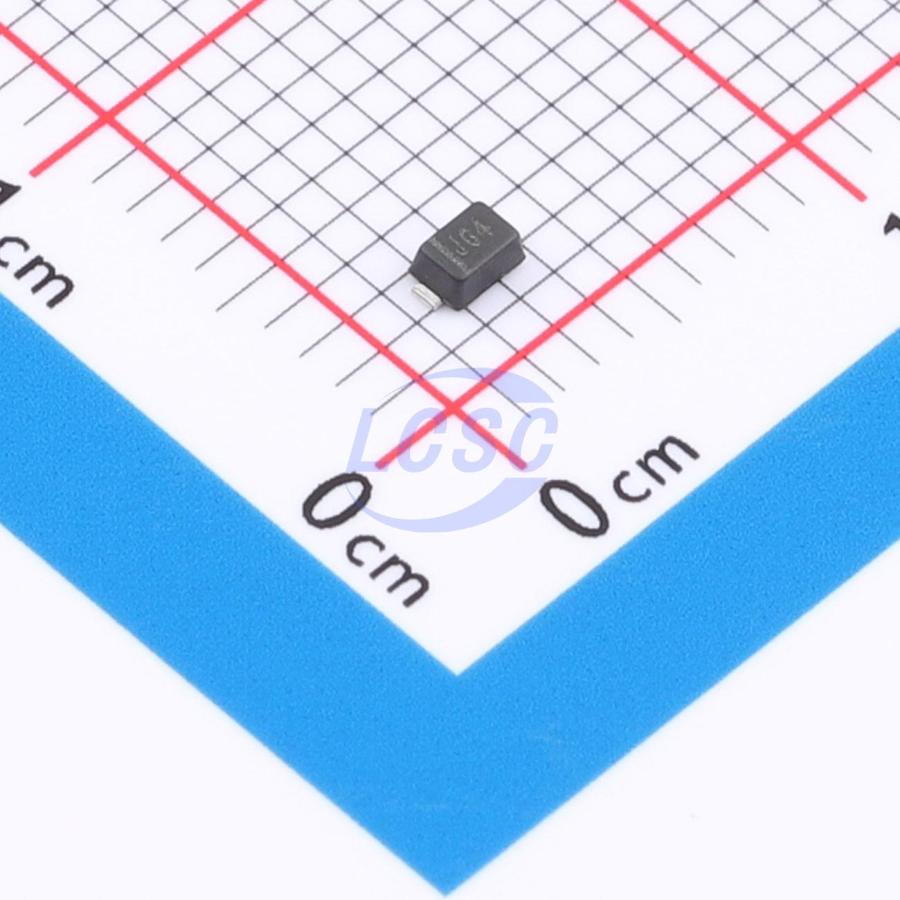

AQ05-01FLTG
13V 200W@10/1000us 7V Unidirectional 5V SOD-323FL TVS Diodes RoHS
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQ05-01FLTG
- Store part #
- C42147336
- Package / case
- SOD-323FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C42147336
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.52 | ₹47.52 |
| 10+ | ₹46.21 | ₹462.10 |
| 30+ | ₹45.35 | ₹1,360.50 |
| 100+ | ₹44.70 | ₹4,470.00 |
1 × ₹47.52
₹47.52
excl. GST
₹56.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AQ05-01FLTG
₹47.52 for 1 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Voltage - Breakdown
- 7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 400uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.084 g
Overview
The AQxx-01FLTG series unidirectional TVS diodes employ proprietary silicon avalanche technology. These diodes provide high ESD protection for electronic equipment. The AQxx-01FLTG series TVS diodes can safely absorb repetitive ±30 kV ESD strikes (contact and air discharge as defined in IEC 61000-4-2) without performance degradation. In addition, they can safely dissipate 200 W peak pulse power under a 10/1000 μs waveform.
Applications
- Battery protection
- Computer peripherals
- Medical devices
- Laptops/Desktops/Servers
- Test equipment/Instrumentation
- VCC
Key features
- ESD, IEC 61000-4-2, ±30 kV contact/air
- ESD, ISO 10605, 330 pF 330 Ω, ±30 kV contact/air
- EFT, IEC 61000-4-4, 40 A (5/50 ns)
- Peak pulse power, 200 W, 10/1000 μs waveform
- Surge withstand capability: IEC 61000-4-5 Edition 2, 10~99 A (t = 8/20 μs)
- Halogen-free, lead-free, and RoHS compliant
- Moisture Sensitivity Level (MSL-1)
- AEC-Q101 qualified and PPAP capable
