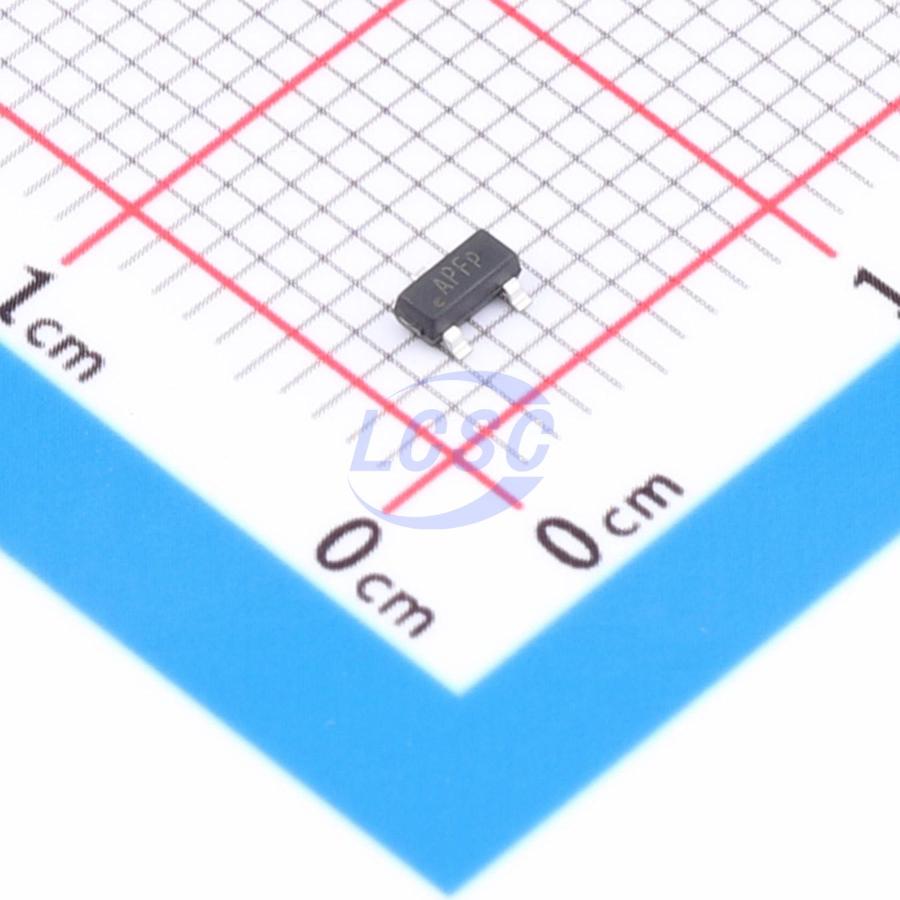

AQ12CANA-02HTG
26.5V 12A@8/20us 13V Bidirectional 12V SOT-23-3 TVS Diodes
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQ12CANA-02HTG
- Store part #
- C20349311
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C20349311
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.27 | ₹83.27 |
| 10+ | ₹70.25 | ₹702.50 |
| 30+ | ₹64.62 | ₹1,938.60 |
| 100+ | ₹57.46 | ₹5,746.00 |
| 500+ | ₹54.43 | ₹27,215.00 |
| 1,000+ | ₹52.47 | ₹52,470.00 |
1 × ₹83.27
₹83.27
excl. GST
₹98.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AQ12CANA-02HTG
₹83.27 for 1 + GST
Specifications
- Clamping Voltage
- 26.5V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 13V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
The AQ12CANA-02HTG bidirectional TVS is manufactured using proprietary silicon avalanche technology. These diodes provide a high ESD protection level for electronic equipment. The AQ12CANA-02HTG TVS can safely absorb repetitive ±30kV ESD strikes (contact and air discharge per IEC 61000-4-2) without performance degradation. In addition, it can safely dissipate 12A 8/20μs surge events per IEC 61000-4-5 Edition 2.
