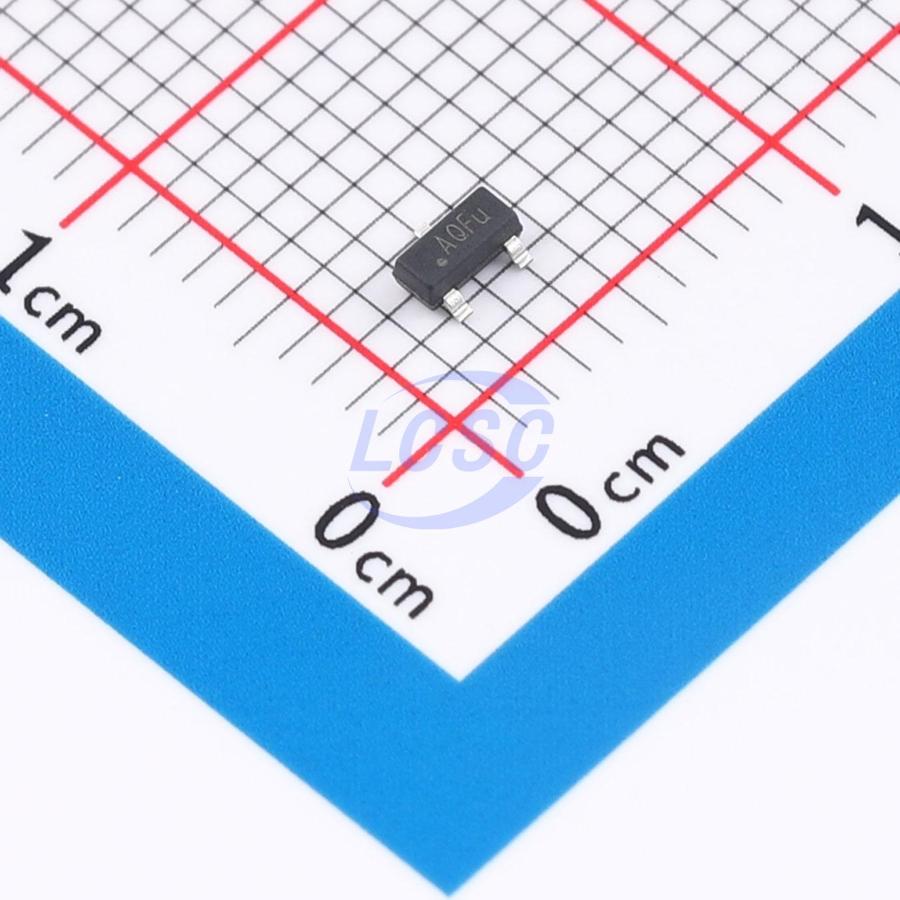

AQ15CANA-02HTG
33V 9A@8/20us 16.7V Bidirectional 15V SOT-23-3 TVS Diodes RoHS
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQ15CANA-02HTG
- Store part #
- C5382097
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
551 in stock
#C5382097
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.24 | ₹59.24 |
| 10+ | ₹45.96 | ₹459.60 |
| 30+ | ₹40.30 | ₹1,209.00 |
| 100+ | ₹33.33 | ₹3,333.00 |
| 500+ | ₹30.06 | ₹15,030.00 |
| 1,000+ | ₹28.31 | ₹28,310.00 |
1 × ₹59.24
₹59.24
excl. GST
₹69.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AQ15CANA-02HTG
₹59.24 for 1 + GST
Specifications
- Clamping Voltage
- 33V
- Operating Temperature
- -40℃~+150℃
- Peak Pulse Current (Ipp)
- 9A@8/20us
- Voltage - Breakdown
- 16.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
The AQ15CANA-02HTG bidirectional TVS diode is manufactured using proprietary silicon avalanche technology. These diodes provide a high ESD protection level for electronic equipment. The AQ15CANA-02HTG TVS can safely absorb repetitive ±30kV ESD strikes (contact and air discharge as defined in IEC 61000-4-2) without performance degradation. In addition, it can safely dissipate 9A, 8/20μs surge events as defined in IEC 61000-4-5 Edition 2.
Applications
- Automotive
- Advanced Driver Assistance Systems (ADAS) Control Units
- Body Control Units
- Controller Area Network (CAN) Bus
- Electronic Control Units
- Factory Automation
- Lighting Control (Digital Addressable Lighting Interface, DALI)
- Powertrain Control Units
Key features
- ESD per IEC 61000-4-2, ±30kV contact/air discharge
- ESD per ISO 10605, 330pF, 330Ω, ±30kV contact/air discharge
- EFT per IEC 61000-4-4, 40A (5/50ns)
- Maximum surge withstand per IEC 61000-4-5 Edition 2, 9A (8/20μs)
- Halogen-free, lead-free, RoHS compliant
- Moisture Sensitivity Level (MSL-1)
- AEC-Q101 qualified, PPAP documentation available
