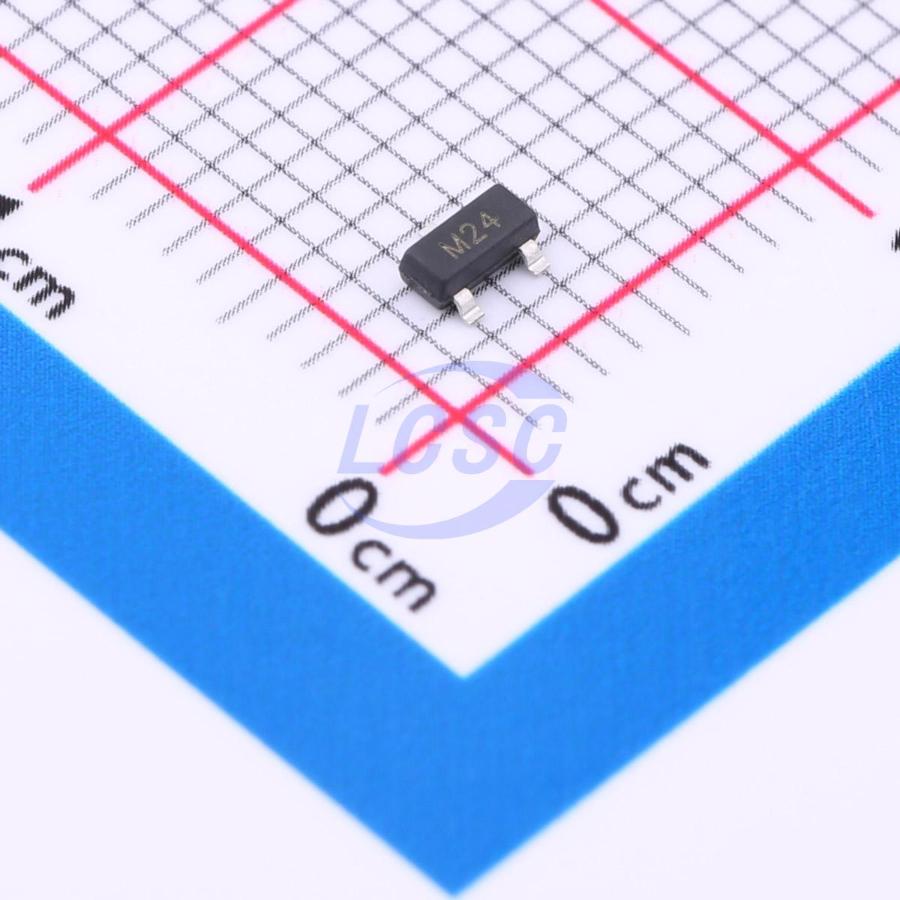

AQ24-02HTG
42VC Clamp 9A@8/20us Ipp TVS DIODE SOT-23-3
TVS DIODE 24VWM 42VC SOT-23-3
- Manufacturer
- Littelfuse
- Manufacturer part #
- AQ24-02HTG
- Store part #
- C3713006
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C3713006
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.48 | ₹110.48 |
| 10+ | ₹96.30 | ₹963.00 |
| 30+ | ₹89.21 | ₹2,676.30 |
| 100+ | ₹82.12 | ₹8,212.00 |
| 500+ | ₹77.82 | ₹38,910.00 |
| 1,000+ | ₹75.66 | ₹75,660.00 |
1 × ₹110.48
₹110.48
excl. GST
₹130.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AQ24-02HTG
₹110.48 for 1 + GST
Specifications
- Clamping Voltage
- 42V
- Peak Pulse Current (Ipp)
- 9A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
The AQxx- 02HTG Series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. This AQxx- 02HTG series can safely absorb repetitive ESD strikes of ± 30kV (contact and air discharge as defined in IEC 61000- 4- 2) without any performance degradation. Additionally, the AQ05 can safely conduct a 33A 8/20 surge event as defined in IEC 61000- 4- 5 2nd Edition at low voltage clamping levels.
Applications
- Industrial Equipment
- Test and Medical Equipment
- Point- of- Sale Terminals
- Motor Controls
- Legacy Ports (RS- 232, RS- 485)
- Security and Alarm Systems
Key features
- ESD, IEC 61000- 4- 2, ± 30kV contact, ± 30kV air
- EFT, IEC 61000- 4- 4, 50A (5/50ns)
- Lightning, 33A (8/20us as defined in IEC 61000- 4- 5 2nd edition) for the AQ05
- Working voltages: 5V, 12V, 15V, 24V and 36V
- ESD, ISO 10605, 330pF 3300, ± 30kV contact, ± 30kV air
- Low clamping voltage
- Low leakage current
- AEC- Q101 qualified
- Moisture Sensitivity Level (MSL- 1)
- Halogen free, lead free and RoHS compliant
- PPAP- capable
