Littelfuse

AQ24COME-02HTG

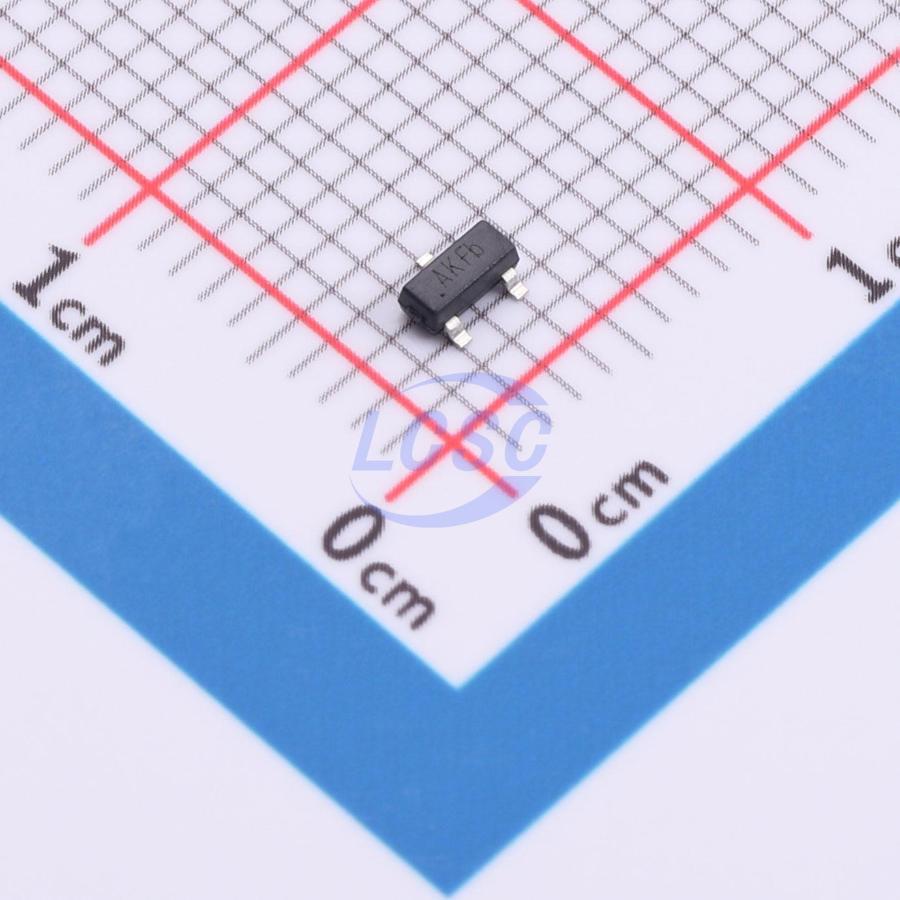

51V 9A@8/20us 450W@8/20us 33V Bidirectional 24V SOT-23-3 TVS Diodes

SOT-23-3RoHSActive

Manufacturer: Littelfuse
Manufacturer part #: AQ24COME-02HTG
Store part #: C20349316
Package / case: SOT-23-3
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

77 in stock

#C20349316

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹118.01	₹118.01
10+	₹116.50	₹1,165.00
30+	₹115.43	₹3,462.90
100+	₹114.35	₹11,435.00

Quantity (min 1)

1 × ₹118.01

₹118.01

excl. GST

₹139.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AQ24COME-02HTG

₹118.01 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 51V
Operating Temperature: -40℃~+150℃
Peak Pulse Current (Ipp): 9A@8/20us
Peak Pulse Power Dissipation (Ppp): 450W@8/20us
Voltage - Breakdown: 33V
type: TVS
Reverse Leakage Current (Ir): 1nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.059 g

Overview

The AQ24COME-02HTG bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The AQ24COME-02HTG TVS can safely absorb repetitive ESD strikes of ±30kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 9A 8/20μs surge event as defined in IEC 61000-4-5, 2nd edition.
