Littelfuse

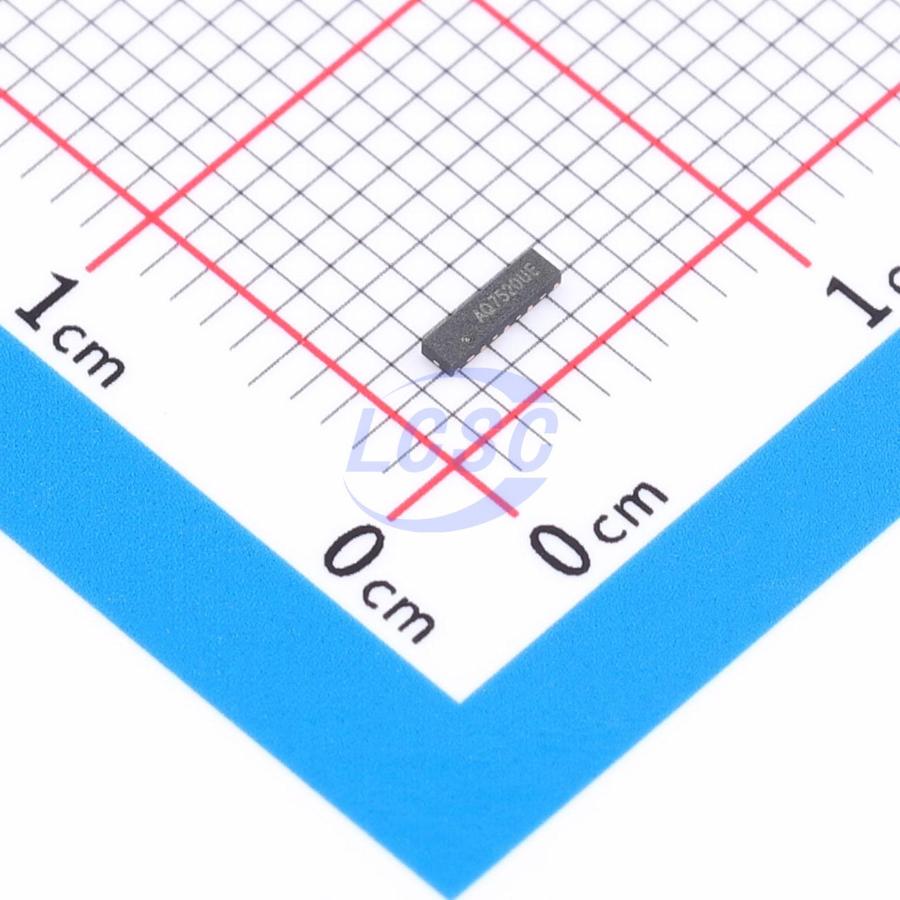

AQ7520-08UTG

6VC Clamp TVS DIODE UDFN-9(1x3.8)

UDFN-9(1x3.8)ROHS3 CompliantActive

Manufacturer: Littelfuse
Manufacturer part #: AQ7520-08UTG
Store part #: C7077564
Package / case: UDFN-9(1x3.8)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

97 in stock

#C7077564

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹133.45	₹133.45
10+	₹130.62	₹1,306.20
30+	₹128.66	₹3,859.80
100+	₹126.70	₹12,670.00

Quantity (min 1)

1 × ₹133.45

₹133.45

excl. GST

₹157.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AQ7520-08UTG

₹133.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 6V
Operating Temperature: -40℃~+150℃
Peak Pulse Current (Ipp): 6A@8/20us
Number of Channels: 8
Voltage - Breakdown: 6.5V
type: TVS
Reverse Leakage Current (Ir): 100nA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.048 g

Overview

The AQ7520-08UTG features eight channels of ultra-low capacitance and high ESD protection diodes, designed to protect high-speed data interfaces such as USB 3.1, DisplayPort, and e-SATA. With a typical capacitance of 0.32pF, it helps ensure signal integrity. This device delivers robust performance, capable of safely absorbing repetitive ESD strikes at the maximum level defined by IEC 61000-4-2 (Level 4, ±8kV contact discharge) without performance degradation, and can safely dissipate 6A of 8/20µs surge current (IEC 61000-4-5 Edition 2).
