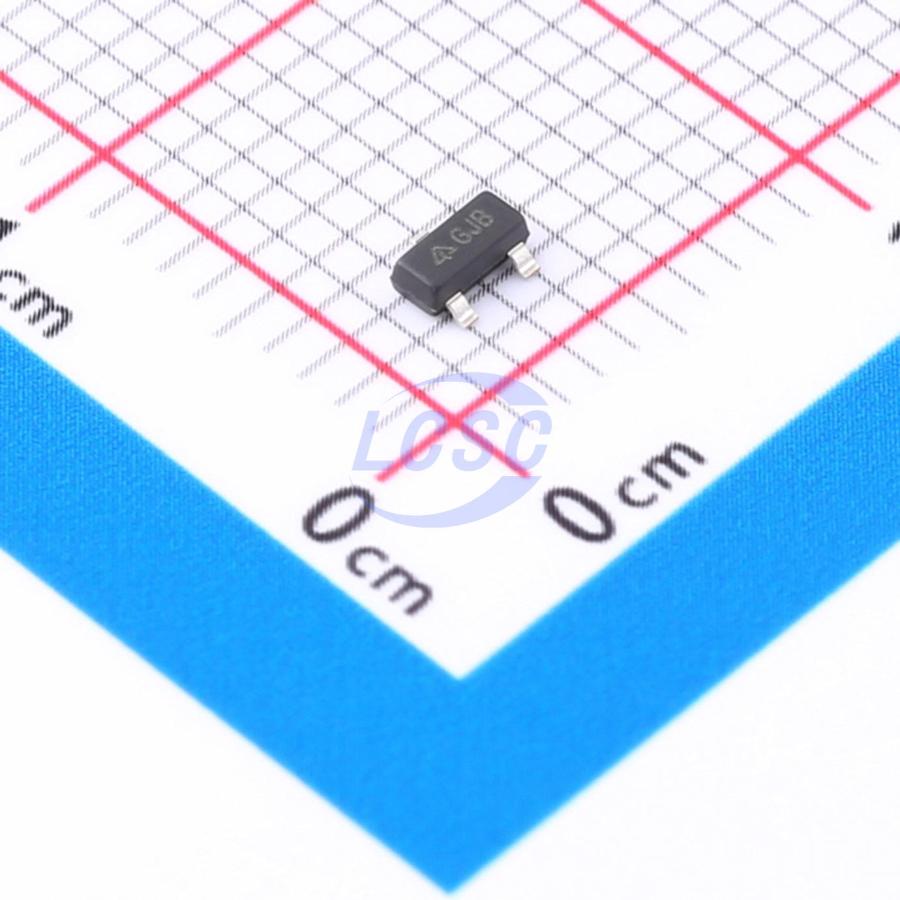

DIODES

AS431HBNTR-G1

2.495V~36V ±1% 100mA Adjustable SOT-23 Voltage Reference RoHS

SOT-23ROHS3 CompliantActive

Adjustable Precision Shunt Regulator

Manufacturer: DIODES
Manufacturer part #: AS431HBNTR-G1
Store part #: C2157667
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,350 in stock

#C2157667

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹6.69	₹66.90
100+	₹5.35	₹535.00
300+	₹4.66	₹1,398.00
3,000+	₹4.16	₹12,480.00
6,000+	₹3.76	₹22,560.00
9,000+	₹3.55	₹31,950.00

Quantity (min 10, multiples of 10)

10 × ₹6.69

₹66.90

excl. GST

₹78.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AS431HBNTR-G1

₹66.90 for 10 + GST

Specifications

Output Voltage: 2.495V~36V
Tolerance: ±1%
Minimum Cathode Current for Regulation: 500uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃@(Ta)
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The AS431H is a three- terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn- on characteristics, low temperature coefficient, and low output impedance, which make the AS431H an ideal substitute for Zener diodes in applications such as switching power supplies, chargers, and other adjustable regulators. The output voltage of the AS431H can be set to any value between VREF (2.495V) and the corresponding maximum cathode voltage (36V). The AS431H precision reference is offered in two voltage tolerances: 0.5% and 1.0% This IC is available in two packages: TO92 (Ammo Packing) and SOT23.

Applications

Chargers
Voltage adapters
Switching power supplies
Graphic cards
Precision voltage references

Key features

Programmable Precise Output Voltage from 2.495V to 36V
High Stability under Capacitive Load
Low Temperature Deviation: 5mV Typical
Low Equivalent Full- range Temperature Coefficient with 26PPM/°C Typical
Sink Current Capacity from 0.5mA to 100mA
Low Output Noise
Wide Operating Range of - 40 to +125°C
Lead- Free Packages, Available in "Green" Molding Compound: SOT23, TO92 (Ammo Packing)
Totally Lead- Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
