ASDsemi

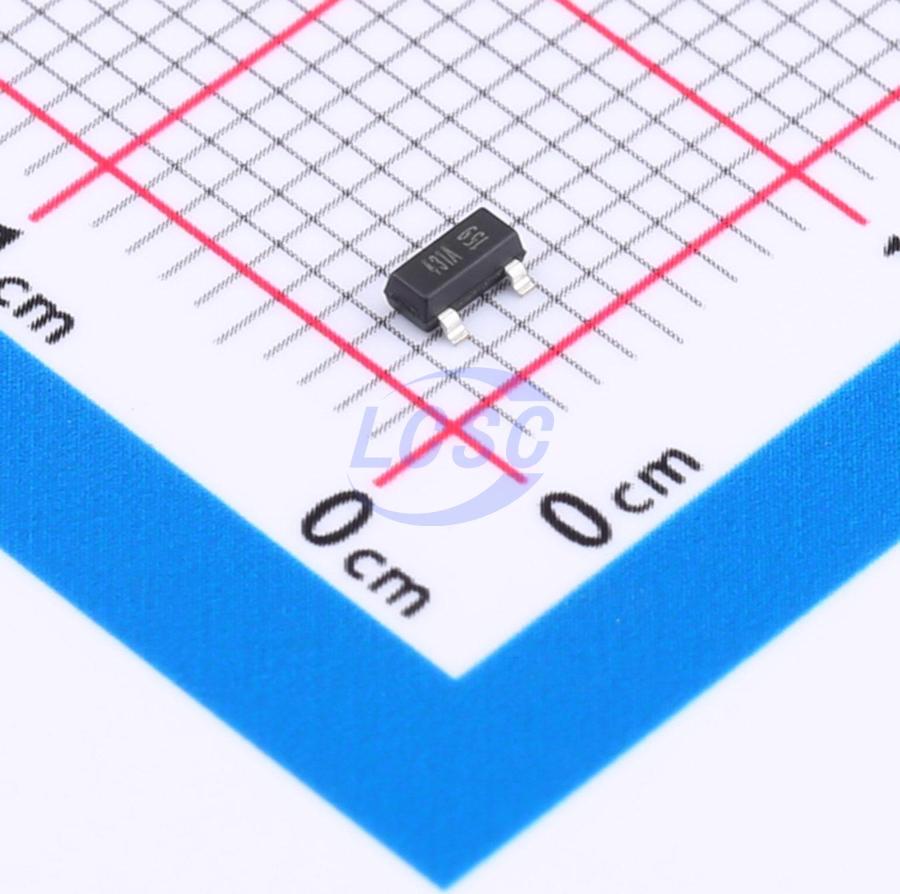

ASPL431AZA-R

2.5V~36V ±0.8% 100mA Adjustable SOT-23 Voltage Reference RoHS

SOT-23ROHS CompliantActive

ADJUSTABLE PRECISION SHUNT REGULATORS

Manufacturer: ASDsemi
Manufacturer part #: ASPL431AZA-R
Store part #: C5244140
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,740 in stock

#C5244140

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹4.90	₹98.00
200+	₹3.84	₹768.00
600+	₹3.25	₹1,950.00
3,000+	₹2.78	₹8,340.00
9,000+	₹2.47	₹22,230.00
21,000+	₹2.32	₹48,720.00

Quantity (min 20, multiples of 20)

20 × ₹4.90

₹98.00

excl. GST

₹115.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ASPL431AZA-R

₹98.00 for 20 + GST

Specifications

Output Voltage: 2.5V~36V
Tolerance: ±0.8%
Minimum Cathode Current for Regulation: 150uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -25℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.034 g

Overview

The ASPL431A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of ASPL431A can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The ASPL431A precision reference is offered in two voltage tolerance: 0.4% and 0.8%. This IC is available in 3 packages: TO92 (Bulk or Ammo Packing), SOT23.
