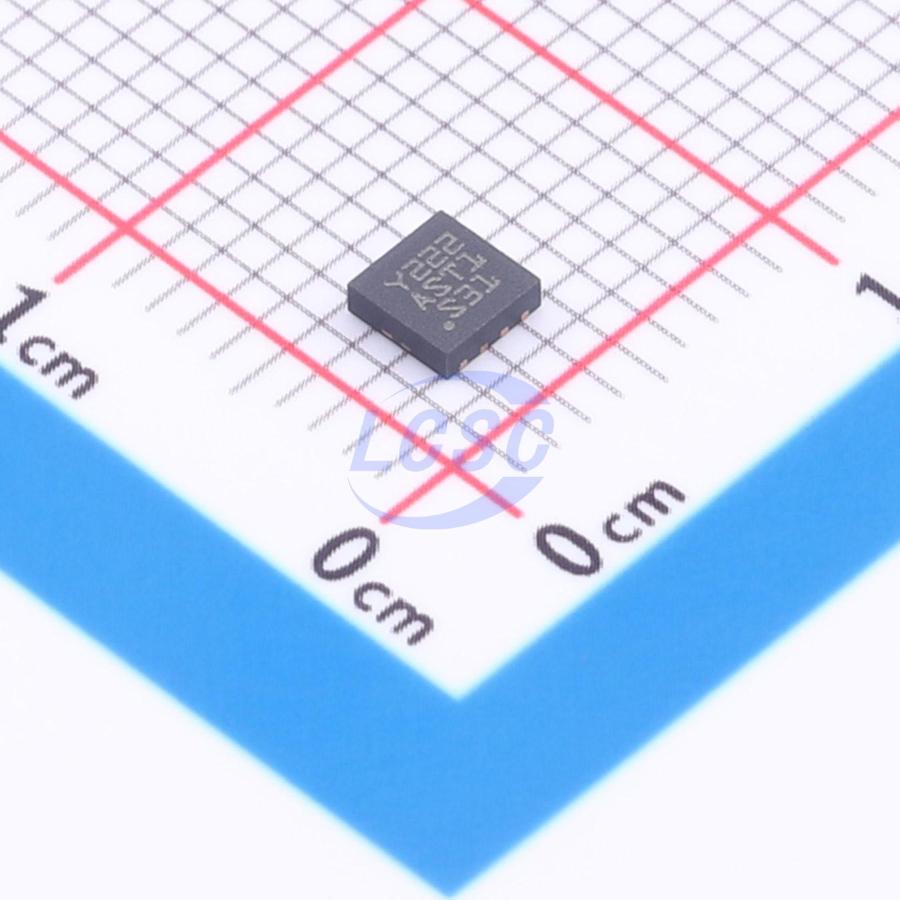

AST1S31PUR
1.5MHz Step-down type Adjustable 800mV~4V 3A VFDFPN-8(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
VFDFPN-8(3x3)ROHS CompliantActive
Up to 4 V, 3 A step-down 1.5 MHz switching regulator
- Manufacturer
- ST
- Manufacturer part #
- AST1S31PUR
- Store part #
- C5268089
- Package / case
- VFDFPN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67 in stock
#C5268089
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹720.19 | ₹720.19 |
| 10+ | ₹616.77 | ₹6,167.70 |
| 30+ | ₹555.29 | ₹16,658.70 |
| 100+ | ₹492.94 | ₹49,294.00 |
| 500+ | ₹464.27 | ₹2,32,135.00 |
| 1,000+ | ₹451.45 | ₹4,51,450.00 |
1 × ₹720.19
₹720.19
excl. GST
₹849.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AST1S31PUR
₹720.19 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 1.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Operating status indication;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.8V~4V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~4V
- Output Current
- 3A
- Quiescent Current
- 630uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.491 g
Overview
The AST1S31 device is an internally compensated 1.5 MHz d-f ency PWM synchronous step-down regulator. The device regulates an output voltage as 0.8 V up to Vin. The AST1S31 integrates a 70 mΩ high-side switch, allowing very high efficiency with very low output voltages. The peak current mode control with compensation delivers a very compact 3x3 mm with a minimum component.
Applications
- Car body applications
Key features
- 2.8 V - 4 V input voltage
- 1.5 MHz switching frequency
- 70 mΩ high-side switch, 55 mΩ low-side switch
- 3x3-8L package
