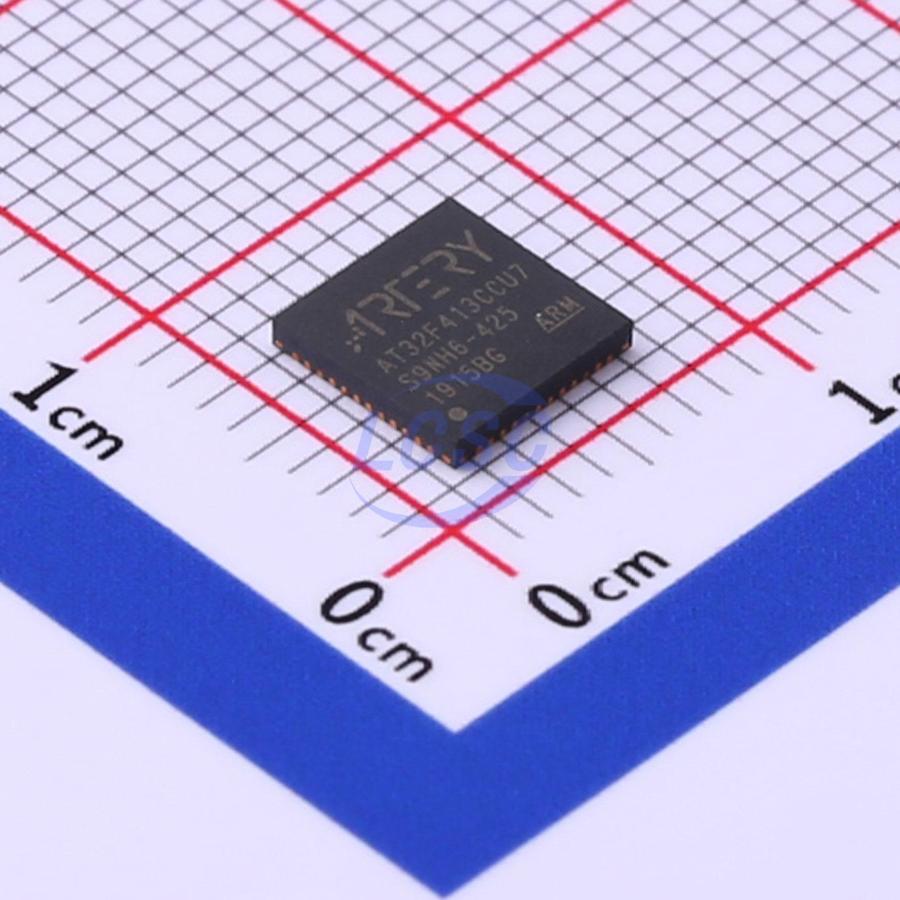

AT32F413CCU7

ARM Cortex-M4 32 Bit 200MHz QFN-48-EP(6x6) Microcontrollers RoHS

QFN-48-EP(6x6)ROHS CompliantActive

Based on ARM 32-bit Cortex - M4 microcontroller + FPU, with internal flash memory, timers, ADC, and communication interfaces

Manufacturer: ARTERY
Manufacturer part #: AT32F413CCU7
Store part #: C528421
Package / case: QFN-48-EP(6x6)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,306 in stock

#C528421

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹285.86	₹285.86
10+	₹238.33	₹2,383.30
30+	₹208.50	₹6,255.00
100+	₹178.05	₹17,805.00
490+	₹164.21	₹80,462.90
980+	₹158.16	₹1,54,996.80

Quantity (min 1)

1 × ₹285.86

₹285.86

excl. GST

₹337.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 490 per tray

AT32F413CCU7

₹285.86 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 39
Operating Temperature: -40℃~+105℃
Program Memory Type: FLASH
Voltage - Supply: 2.6V~3.6V
CPU Core: ARM Cortex-M4
Program Storage Size: 256KB
Core Size: 32 Bit
CPU Maximum Speed: 200MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tray
Standard pack: 490 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

This device is a microcontroller based on an ARM 32-bit Cortex-M4 core with an integrated FPU, featuring 64 KB to 256 KB of internal flash memory. It includes up to 12 timers, 2 ADCs, and 13 communication interfaces, including 2 CAN interfaces and 1 USB FS interface. The operating frequency reaches up to 200 MHz, and it incorporates an MPU. The device supports single-cycle multiplication and hardware division, with a built-in FPU and DSP instruction set. Supply voltage range is 2.6 to 3.6 V, and operating temperature range is -40 to +105°C. Multiple package options are available, including LQFP64, LQFP48, QFN48, and QFN32.

Key features

ARM 32-bit Cortex-M4 core with integrated FPU, up to 200 MHz operating frequency, MPU, single-cycle multiplication, hardware division, and DSP instruction set
64 KB to 256 KB internal flash with sLib support; SPIM interface for external SPI flash (up to 16 MB); up to 64 KB SRAM
Supply voltage range 2.6 to 3.6 V; integrated POR, LVR, and PVM; sleep, deep sleep, and standby low-power modes; dedicated VBAT pin powering LEXT, RTC, and 42 × 16-bit battery-powered registers (BPR)
Clock system: 4 to 25 MHz HEXT; factory-trimmed 48 MHz HICK (±1% at 25℃, ±2.5% over -40 to +105℃, with auto clock calibration); 32 kHz LEXT; LICK
2 × 12-bit ADCs, up to 2 MSPS, up to 16 input channels; integrated temperature sensor and internal reference voltage
14-channel DMA controller
Up to 55 fast GPIO ports, all mappable to 16 EXINT lines, nearly all 5 V tolerant
Up to 12 timers: 2 × 16-bit advanced timers (PWM with dead-time control and emergency brake, motor control); 5 × 16-bit and 2 × 32-bit general-purpose timers (up to 4 channels each, input capture, output compare, PWM, pulse counter, incremental encoder input); 1 × WDT and 1 × WWDT; 1 × 24-bit SysTick down-counter
Up to 13 communication interfaces: 2 × I2C (SMBus/PMBus); up to 5 × USART (ISO7816, LIN, IrDA, modem control); 2 × SPI (up to 36 Mbps, both multiplexed with I2S); 2 × CAN (2.0B Active); 1 × USB 2.0 full-speed device (crystal-free operation); 1 × SDIO
CRC calculation unit
96-bit chip UID
SWD and JTAG debug interfaces
