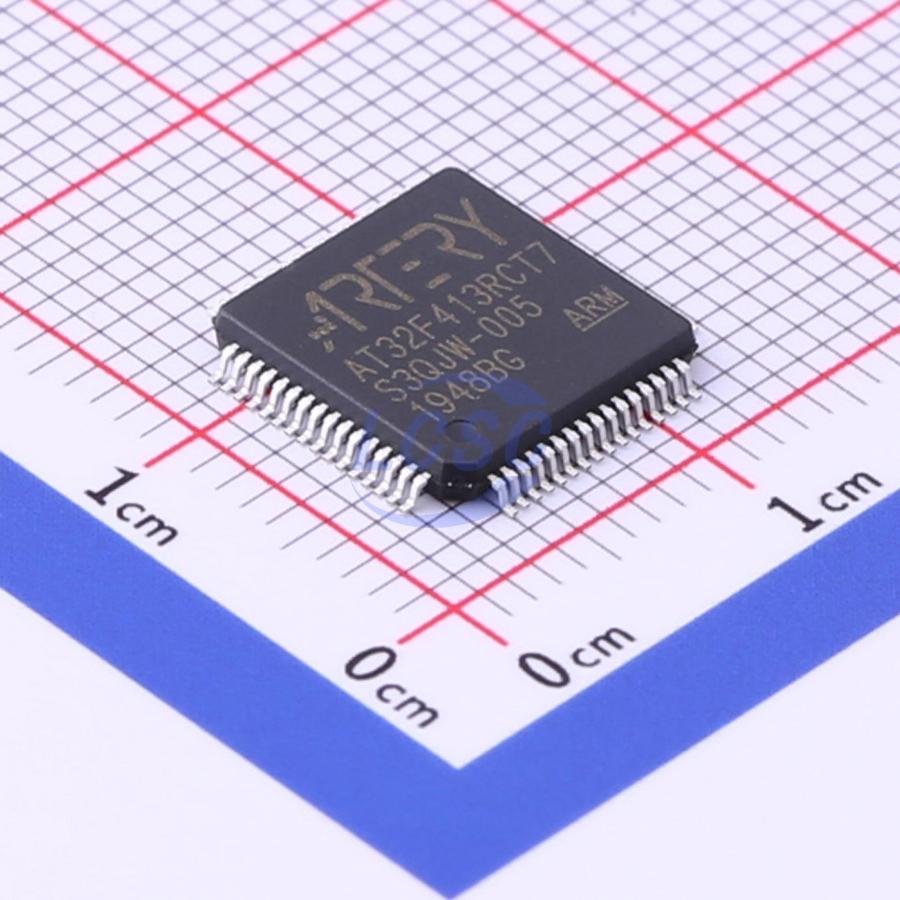

AT32F413RCT7

ARM Cortex-M4F 32 Bit 200MHz LQFP-64(10x10) Microcontrollers RoHS

LQFP-64(10x10)ROHS CompliantActive

Based on ARM 32-bit Cortex-M4F microcontroller + FPU, with internal flash memory, sLib, USB, CAN, timers, ADC, and communication interfaces

Manufacturer: ARTERY
Manufacturer part #: AT32F413RCT7
Store part #: C528423
Package / case: LQFP-64(10x10)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,008 in stock

#C528423

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹409.02	₹409.02
10+	₹340.95	₹3,409.50
30+	₹298.18	₹8,945.40
160+	₹254.53	₹40,724.80
480+	₹234.87	₹1,12,737.60
960+	₹226.22	₹2,17,171.20

Quantity (min 1)

1 × ₹409.02

₹409.02

excl. GST

₹482.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 160 per tray

AT32F413RCT7

₹409.02 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 55
Operating Temperature: -40℃~+105℃
Program Memory Type: FLASH
Voltage - Supply: 2.6V~3.6V
CPU Core: ARM Cortex-M4F
Program Storage Size: 256KB
Core Size: 32 Bit
CPU Maximum Speed: 200MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tray
Standard pack: 160 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.35 g

Overview

ARM 32-bit Cortex -M4F microcontroller + FPU, with 64 Kbytes to 256 Kbytes internal flash, sLib, USB, 2 CAN, 12 timers, 2 ADC, 13 communication interfaces

Key features

Up to 200 MHz operating frequency with MPU, single-cycle multiplication and hardware division
Embedded FPU
DSP instruction set
64 KB to 256 KB internal Flash program/data memory
SPIM interface: additional up to 16 MB external SPI Flash program/data memory interface
Up to 64 KB SRAM
sLib: designates a specified main memory region as a secure execution-only code library — code in this region can be called but not read
2.6 to 3.6 V power supply and I/O pins
POR/PDR, PVD
4 to 25 MHz crystal oscillator
Embedded factory-trimmed 48 MHz RC oscillator (1% accuracy at 25℃, 2.5% accuracy at -40℃ to +105℃) with ACC
Embedded calibrated 40 kHz RC oscillator
32 kHz crystal oscillator with calibration
Sleep, Stop, and Standby modes; VBAT supplies RTC and 42 × 16-bit backup registers
2 × 12-bit ADC, 0.5 μs conversion time (up to 16 input channels)
Conversion range: 0 to 3.6 V
Dual sample-and-hold
Temperature sensor
12-channel DMA controller
Supported peripherals: timers, ADC, SDIO, I2S, SPI, I2C, and USART
SWD and JTAG interface
27/39/55 multifunctional bidirectional I/O pins; all I/O pins mappable to 16 external interrupts; almost all I/O pins 5 V tolerant
All I/O pins are fast I/O with register access up to fAHB/2
Up to 5 × 16-bit timers + 2 × 32-bit timers, each with up to 4 channels for input capture/output compare/PWM or pulse counting, and quadrature encoder input
Up to 2 × 16-bit advanced PWM timers with dead-time control and emergency brake for motor control
2 watchdog timers (independent and windowed)
SysTick timer: 24-bit down counter
2 I2C interfaces (SMBus/PMBus support)
Up to 5 USART interfaces (ISO7816, LIN, IrDA, and modem control support)
2 SPI interfaces (50 Mbit/s), both remappable as I2S
2 CAN interfaces (2.0B Active)
Crystal-less USB 2.0 full-speed interface
SDIO interface
CRC calculation unit, 96-bit unique chip ID
