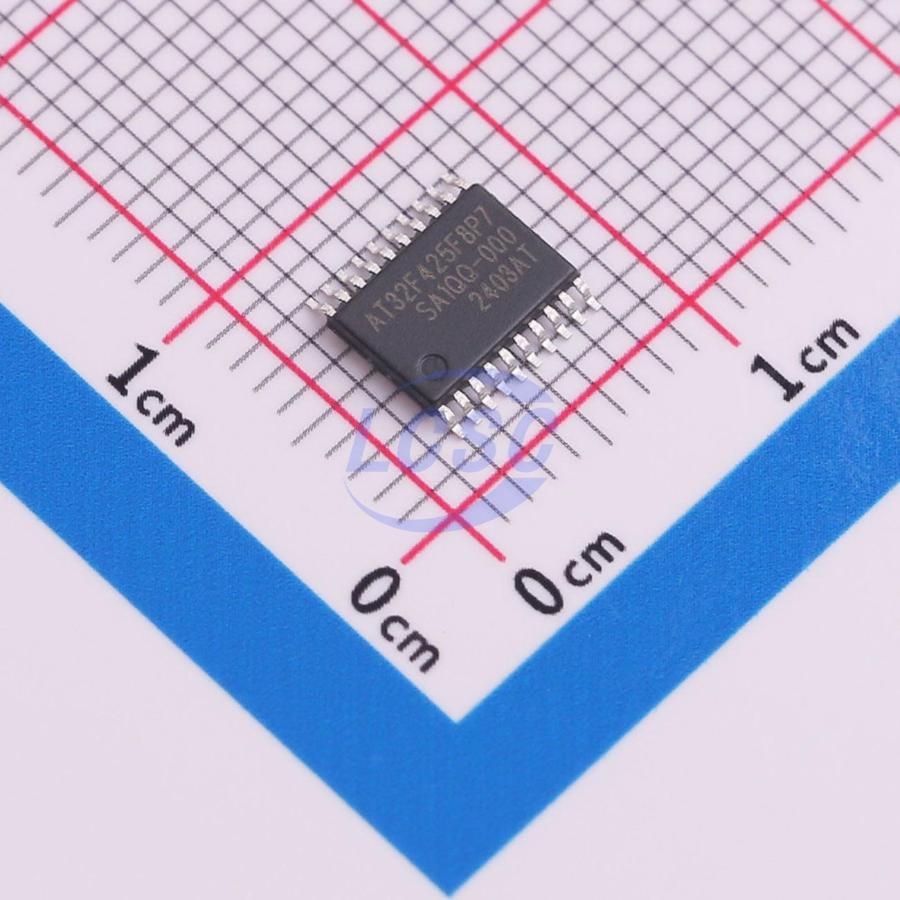

AT32F425F8P7

ARM Cortex-M4 32 Bit 96MHz TSSOP-20 Microcontrollers

TSSOP-20RoHSActive

Based on the ARM 32-bit Cortex - M4 microcontroller, equipped with flash memory, sLib, CAN, OTGFS, timers, ADC, and communication interfaces

Manufacturer: ARTERY
Manufacturer part #: AT32F425F8P7
Store part #: C4153157
Package / case: TSSOP-20
Category: Microcontrollers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,318 in stock

#C4153157

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹154.33	₹154.33
10+	₹121.98	₹1,219.80
30+	₹105.71	₹3,171.30
70+	₹89.65	₹6,275.50
490+	₹80.09	₹39,244.10
980+	₹75.11	₹73,607.80

Quantity (min 1)

1 × ₹154.33

₹154.33

excl. GST

₹182.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 70 per tube

AT32F425F8P7

₹154.33 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 15
Operating Temperature: -40℃~+105℃
Voltage - Supply: 2.4V~3.6V
Program Memory Type: FLASH
CPU Core: ARM Cortex-M4
Program Storage Size: 64KB
Core Size: 32 Bit
CPU Maximum Speed: 96MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 70 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.211 g

Overview

Equipped with 32 KB to 64 KB Flash, sLib, 1x CAN, 1x OTGFS, 13x Timers, 1x ADC, 12x communication interfaces

Key features

Core: ARM 32-bit Cortex-M4 CPU up to 96 MHz, with MPU, single-cycle multiplication and hardware division, DSP instruction set
32 KB to 64 KB Flash memory
4 KB boot code area for Bootloader, one-time configurable as general user area
sLib: designates a specified main memory region as a secure execution-only library; code in this region can be called but not read
20 KB SRAM
2.4V to 3.6V supply voltage
POR, LVR, PVM
Low-power modes: Sleep, Deep Sleep, and Standby; 6 WKUP pins to wake from Standby
5 × 32-bit battery-powered registers (BPR)
4 to 25 MHz crystal oscillator (HEXT)
Factory-trimmed 48 MHz HICK; 1% accuracy at 25°C, 0.2% accuracy at -40°C to +105°C; with ACC
Flexible PLL multiplier and divider configuration
32 kHz crystal oscillator (LEXT)
Low-speed internal clock (LICK)
1 × 12-bit, 2 MSPS ADC; up to 16 external input channels; hardware oversampling up to 16-bit resolution
Internal reference voltage (VINTRV)
1 DMA controller with fully flexible mapping
7 channels
Up to 55 fast GPIO ports
All GPIOs mappable to 16 EXINTs
Almost all GPIOs 5V-tolerant
1 × 16-bit, 7-channel advanced timer: 6-channel PWM output with dead-time control and emergency stop
Up to 6 × 16-bit and 1 × 32-bit general-purpose timers; up to 4 channels each for input capture / output compare / PWM / pulse counting, and incremental encoder input
Up to 24 PWM channels combined across advanced and general-purpose timers
2 × 16-bit basic timers
2 watchdog timers (WDT and WWDT)
SysTick: 24-bit down counter
ERTC: enhanced RTC with auto-wakeup, alarm, sub-second precision, hardware calendar, and calibration
2 × I2C interfaces, SMBus/PMBus support
4 × USART interfaces; master synchronous SPI and modem control; ISO7816, LIN, IrDA, and RS485 driver enable; configurable TX/RX pin swap
3 × SPI interfaces (36 Mbit/s), all multiplexable as half-duplex I2S; any 2 half-duplex I2S combinable into 1 full-duplex I2S
CAN interface (2.0B Active) with 256-byte dedicated buffer
OTG full-speed controller with 1280-byte dedicated buffer; Crystal-less support in device mode
IR transmitter (IRTMR)
96-bit unique ID (UID)
Debug: SWD and SWO interfaces
Temperature range: -40 to +105°C
