ARTERY

AT32F425K8U7-4

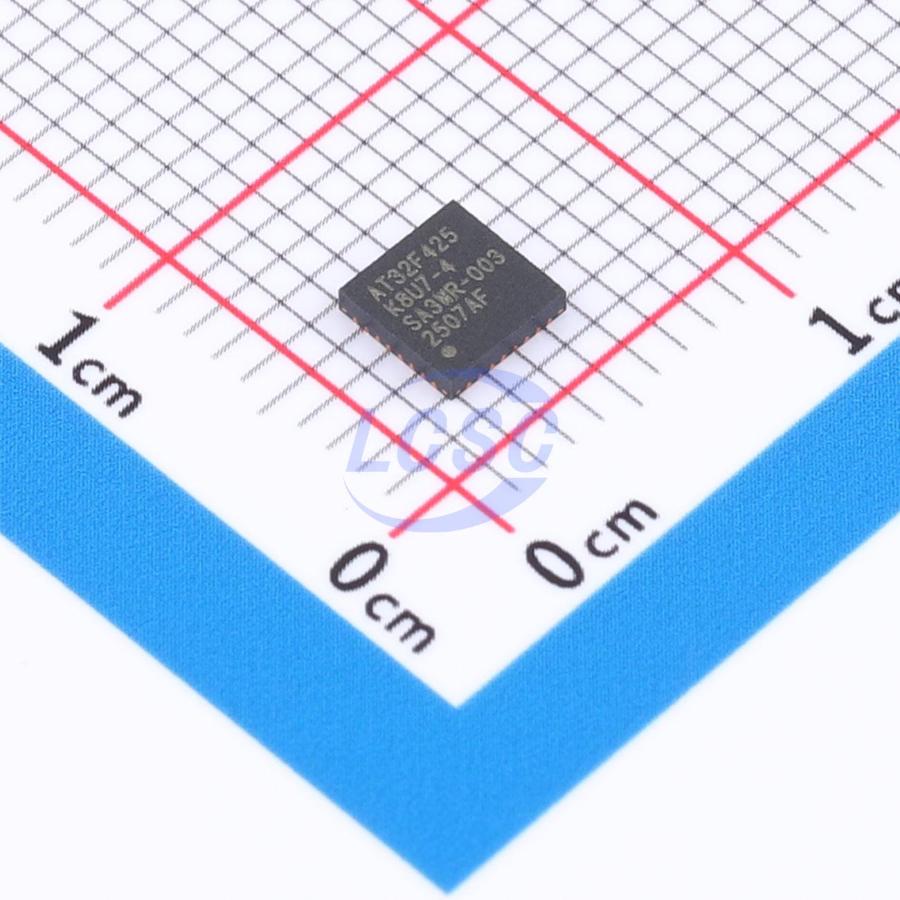

ARM Cortex-M4 32 Bit 96MHz QFN-32(4x4) Microcontrollers

QFN-32(4x4)RoHSActive

Based on the ARM 32-bit Cortex-M4 microcontroller

Manufacturer: ARTERY
Manufacturer part #: AT32F425K8U7-4
Store part #: C5454459
Package / case: QFN-32(4x4)
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,954 in stock

#C5454459

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹143.77	₹143.77
10+	₹119.27	₹1,192.70
30+	₹105.81	₹3,174.30
100+	₹90.64	₹9,064.00
490+	₹83.92	₹41,120.80
980+	₹80.89	₹79,272.20

Quantity (min 1)

1 × ₹143.77

₹143.77

excl. GST

₹169.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 490 per tray

AT32F425K8U7-4

₹143.77 for 1 + GST

Specifications

ADC (Bit): 12bit
Number of I/O: 27
Operating Temperature: -40℃~+105℃
Voltage - Supply: 2.4V~3.6V
Program Memory Type: FLASH
CPU Core: ARM Cortex-M4
Program Storage Size: 64KB
Core Size: 32 Bit
CPU Maximum Speed: 96MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tray
Standard pack: 490 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.8 g

Overview

Based on ARM 32-bit Cortex-M4 microcontroller, with 32 KB to 64 KB flash, sLib, 1x CAN, 1x OTG FS, 13x timers, 1x ADC, 12x communication interfaces

Key features

Core: ARM 32-bit Cortex-M4 CPU, up to 96 MHz operating frequency, with MPU, single-cycle multiplication and hardware division, DSP instruction set
Memory: 32 KB to 64 KB flash memory; 4 KB boot code area for Bootloader, one-time configurable as general user area; sLib designates specified main memory region as secure execution code library — code in this region is callable but not readable; 20 KB SRAM
Power Control (PWC): 2.4V to 3.6V supply; POR, LVR, PVM; low-power modes: Sleep, Deep Sleep, and Standby, with 6 WKUP pins to wake from Standby; 5 battery-powered 32-bit backup registers (BPR)
Clock and Reset Management (CRM): 4 to 25 MHz crystal oscillator (HEXT); factory-trimmed 48 MHz HICK, ±1% accuracy at 25℃, ±0.2% accuracy over -40℃ to +105℃, with ACC; flexible PLL multiplication and division configuration; 32 kHz crystal (LEXT); LICK
Analog: 1× 12-bit 2 MSPS ADC, up to 16 external input channels; hardware oversampling up to 16-bit resolution; internal reference voltage (VINTRV)
DMA: 1× DMA controller, full flexible mapping, 7 channels
Up to 55 fast GPIO ports: all GPIOs mappable to 16 EXINTs; almost all GPIOs 5V-tolerant
Up to 13 timers (TMR): 1× 16-bit 7-channel advanced timer with 6-channel PWM output, dead-time control, and emergency stop; up to 6× 16-bit and 1× 32-bit general-purpose timers, each with up to 4 channels for input capture/output compare/PWM or pulse counting, and incremental encoder input; up to 24 PWM channels combined across advanced and general-purpose timers; 2× 16-bit basic timers; 2× watchdog timers (WDT and WWDT); SysTick 24-bit down counter
ERTC: enhanced RTC with auto-wakeup, alarm, sub-second precision, hardware calendar, and calibration
Up to 12 communication interfaces: 2× I2C, SMBus/PMBus support; 4× USART with master synchronous SPI and modem control, ISO7816, LIN, IrDA, RS485 driver enable, and configurable TX/RX pin swap; 3× SPI (36 Mbit/s), each remappable as half-duplex I2S, any 2 half-duplex I2S combinable into 1 full-duplex I2S; CAN (2.0B Active) with dedicated 256-byte SRAM; OTG full-speed controller with dedicated 1280-byte SRAM, Crystal-less support in device mode; IRTMR
CRC calculation unit; 96-bit unique chip ID (UID)
Debug: SWD and SWO interfaces
Temperature range: -40℃ to +105℃
