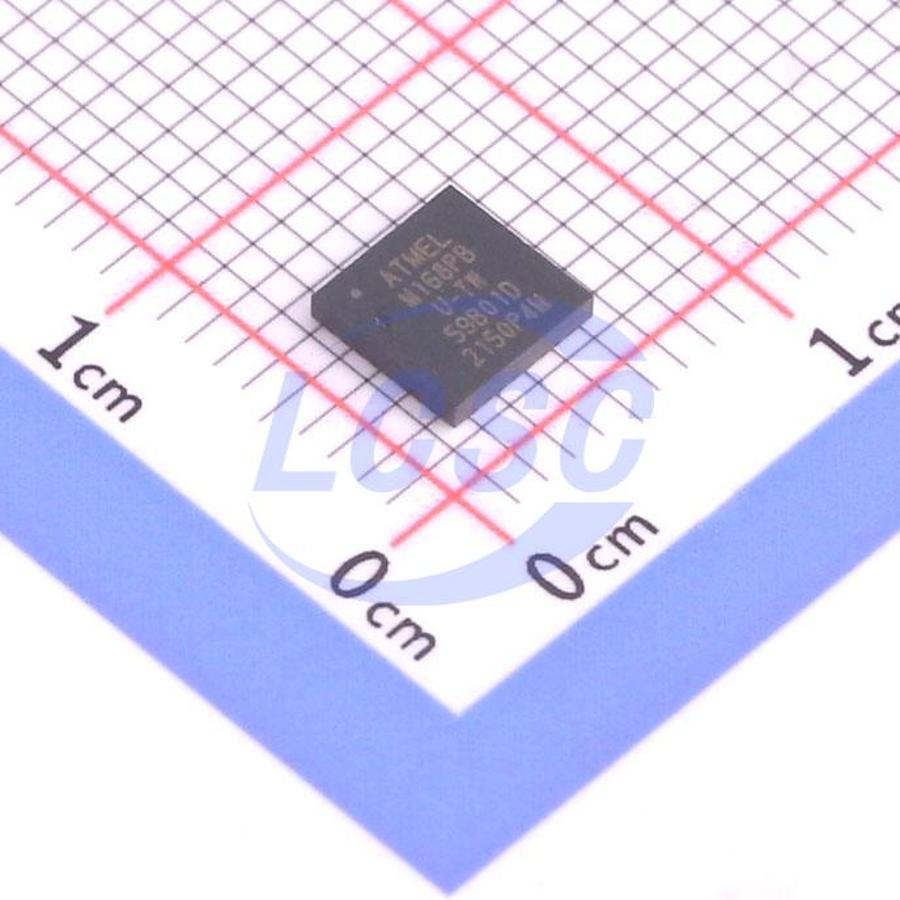

ATMEGA168PB-MU

The ATmega48PB/88PB/168PB is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega48PB/88PB/ 168PB achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Key features

• High Performance, Low Power Microchip AVR 8 -Bit Microcontroller Family
• Advanced RISC Architecture
• 131 Powerful Instructions – Most Single Clock Cycle Execution
• 32x8 General Purpose Working Registers
• Fully Static Operation
• Up to 20 MIPS Throughput at 20MHz
• On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory Segments
• 4/8/16KBytes of In-System Self-Programmable Flash program
• 256/512/512Bytes EEPROM
• 512/1K/1KBytes Internal SRAM
• Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
• Data retention: 20 years at 85℃/100 years at 25℃
• Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
• Programming Lock for Software Security
• Microchip QTouch library support
• Capacitive touch buttons, sliders and wheels
• QTouch and QMatrix acquisition
• Up to 64 sense channels
• Peripheral Features
• Two 8-bit Timer/Counters (TC) with Separate Prescaler and Compare Mode
• 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
• Real Time Counter (RTC) with Separate Oscillator
• Six Pulse Width Modulation (PWM) channels
• 8-channel 10-bit ADC with temperature measurement
• Programmable Serial USART with start-of-frame detection
• Master/Slave SPI Serial Interface
• Byte-oriented Two-Wire Serial Interface (Phillips I²C compatible)
• Programmable Watchdog Timer (WDT) with separate on-chip oscillator
• On-chip Analog Comparator
• Interrupt and Wake-up on Pin Change
• 256-channel capacitive touch and proximity sensing
• Special Microcontroller Features
• Power-on Reset (POR) and Programmable Brown-out Detection (BOD)
• Internal calibrated oscillator
• External and internal interrupt sources
• Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
• Unique Device ID
• I/O and Packages
• 27 Programmable I/O Lines
• 32-lead TQFP and 32-pad VQFN
• Operating Voltage: 1.8 - 5.5V
• Temperature Range: -40℃ to 105℃
• Speed Grade: 0 - 4MHz@1.8 - 5.5V, 0 - 10MHz@2.7 - 5.5V, 0 - 20MHz @ 4.5 - 5.5V
• Power Consumption at 1MHz, 1.8V, 25℃
• Active Mode: 0.35mA
• Power-down Mode: 0.23μA
• Power-save Mode: <1.4μA (Including 32kHz RTC)
