MICROCHIP

ATMEGA2560-16AUR

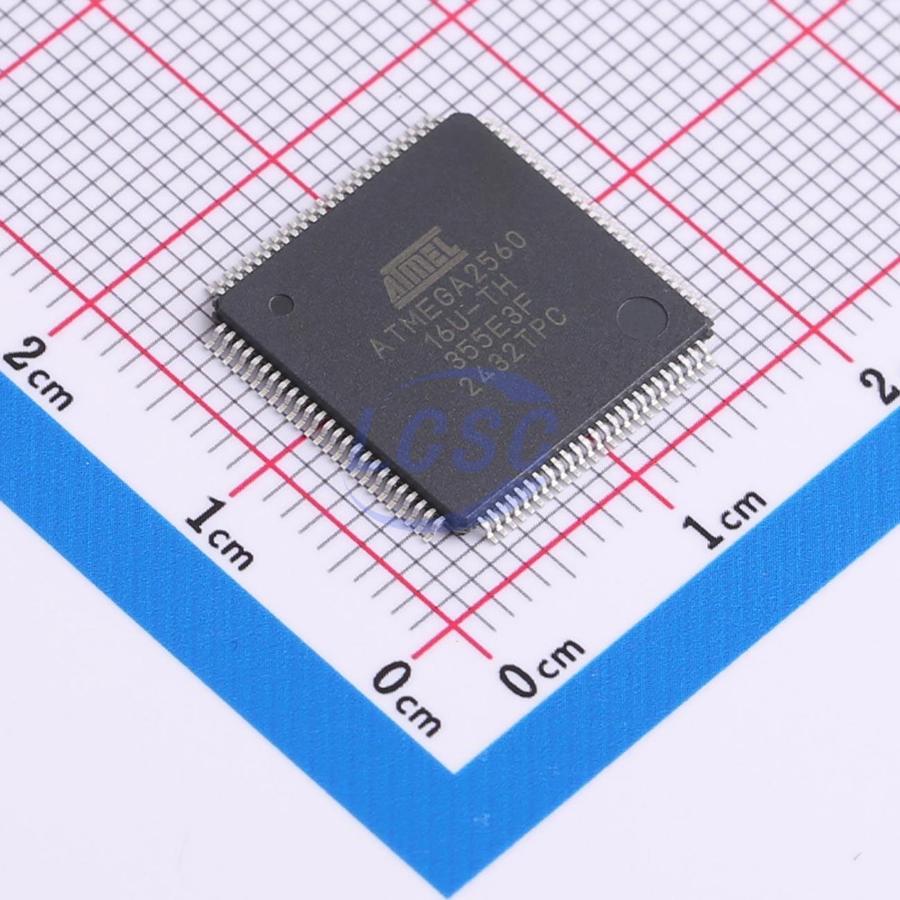

AVR 8 Bit 16MHz TQFP-100(14x14) Microcontrollers RoHS

TQFP-100(14x14)ROHS3 CompliantActive

8-bit Microcontroller with In-System Programmable Flash

Manufacturer: MICROCHIP
Manufacturer part #: ATMEGA2560-16AUR
Store part #: C2052777
Package / case: TQFP-100(14x14)
Category: Microcontrollers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,212 in stock

#C2052777

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹1,779.71	₹1,779.71
10+	₹1,692.39	₹16,923.90
30+	₹1,541.44	₹46,243.20
100+	₹1,409.83	₹1,40,983.00

Quantity (min 1)

1 × ₹1,779.71

₹1,779.71

excl. GST

₹2,100.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

ATMEGA2560-16AUR

₹1,779.71 for 1 + GST

Specifications

ADC (Bit): 10bit
Number of I/O: 86
Operating Temperature: -40℃~+85℃
Voltage - Supply: 4.5V~5.5V
Program Memory Type: FLASH
EEPROM: 4KB
Program Storage Size: 256KB
CPU Core: AVR
Core Size: 8 Bit
CPU Maximum Speed: 16MHz
Oscillator Type: Built-in

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.545 g

Overview

The ATmega640/1280/1281/2560/2561 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega640/1280/1281/2560/2561 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Key features

High Performance, Low Power AVR 8- Bit Microcontroller
Advanced RISC Architecture
168 Powerful Instructions - Most Single- Clock Cycle Execution
32×8 General Purpose Working Registers
Fully Static Operation - Up to 16 MIPS Throughput at 16MHz
On- Chip 2- cycle Multiplier
High Endurance Non- volatile Memory Segments
64K/128K/256KBbytes of In- System Self- Programmable Flash
4Kbytes EEPROM
8Kbytes Internal SRAM
Write/Erase Cycles:10,000 Flash/100,000 EEPROM
Data retention:20 years at 85°C / 100 years at 25°C
Optional Boot Code Section with Independent Lock Bits - In- System Programming
On- chip Boot Program
True Read- While- Write Operation
Endurance: Up to 64kbytes
Optional External Memory Space
QTouch library support - Capacitive touch buttons, sliders and wheels
QTouch and QMatrix acquisition - Up to 64 sense channels
JTAG (IEEE std. 1149.1 compliant) Interface - Boundary- scan Capabilities According to the JTAG Standard
Extensive On- chip Debug Support
Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
Peripheral Features
Two 8- bit Timer/Counters with Separate Prescaler and Compare Mode
Four 16- bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode
Real Time Counter with Separate Oscillator
Four 8- bit PWM Channels
Six/Twelve PWM Channels with Programmable Resolution from 2 to 16 Bits (ATmega1281/2561, ATmega640/1280/2560)
Output Compare Modulator
8/16- channel, 10- bit ADC (ATmega1281/2561, ATmega640/1280/2560)
Two/Four Programmable Serial USART (ATmega1281/2561, ATmega640/1280/2560)
Master/Slave SPI series interface
Byte Oriented 2- Wire Serial Interface
Programmable Watchdog Timer with Separate On- chip Oscillator
On- chip Analog Comparator
Interrupt and Wake- up on Pin Change
Special Microcontroller Features
Power- on Reset and Programmable Brown- out Detection
Internal Calibrated Oscillator
External and Internal interrupt Source
Six Sleep Modes: Idle, ADC Noise Reduction, Power- save, Power- down, Standby, and Extended Standby
I/O and Packages
54/86 Programmable I/O Lines (ATmega1281/2561, ATmega640/1280/2560)
64- pad QFN/MLF, 64- lead TQFP (ATmega1281/2561)
164- head TQFP, 164- lead SGS4A (ATmega640/1280/2560)
RoHS/Fully Green
Temperature Range: - 40°C to 85°C Industrial
Ultra-Low Power Consumption
Active Mode: 1MHz, 1.8V: 500uA
Power-down Mode: 0.1uA at 1.8V
Speed Grade:
ATmega640V/ATmega1280V/ATmega1281V: 0 - 4MHz @ 1.8V - 5.5V, 0 - 8MHz @ 2.7V - 5.5V
ATmega2560V/ATmega2561V: 0 - 2MHz @ 1.8V - 5.5V, 0 - 8MHz @ 2.7V - 5.5V
ATmega2560: 0 - 2MHz @ 2.7V - 5.5V, 0 - 8MHz @ 2.7V - 5.5V
ATmega1281: 0 - 8MHz @ 2.7V - 5.5V, 0 - 16MHz @ 4.5V - 5.5V
ATmega640/1280/2560: 0 - 16MHz @ 4.5V - 5.5V
