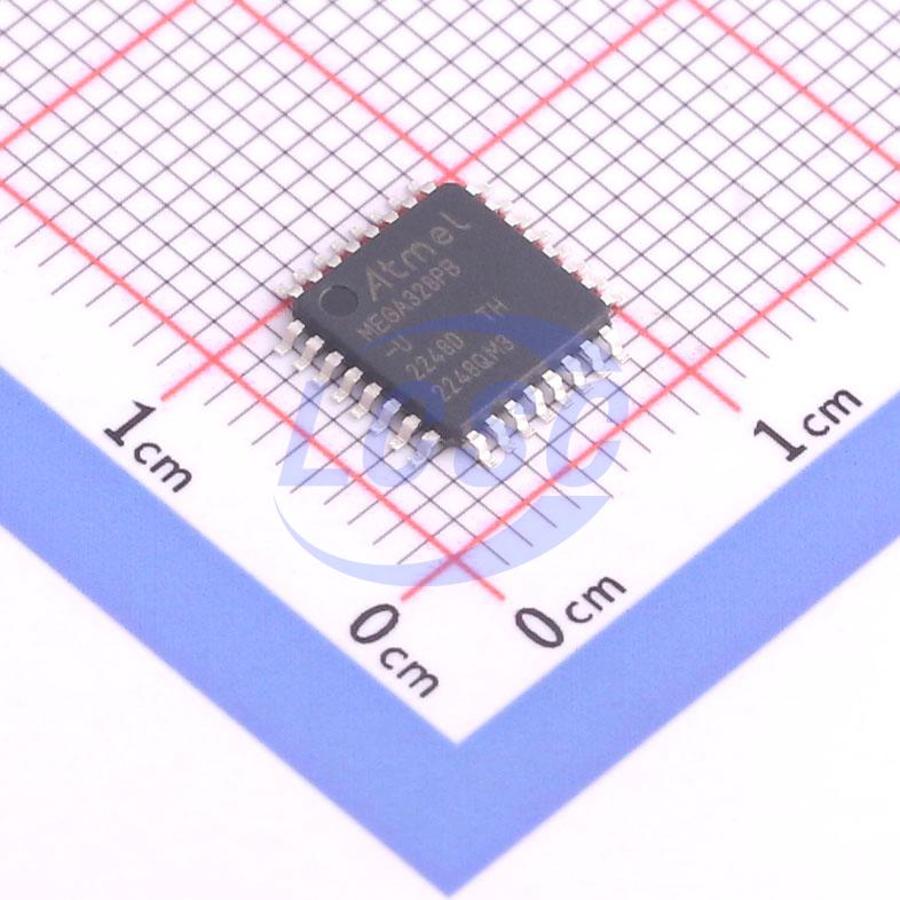

ATMEGA328PB-AUR

The picoPower ATmega328PB is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328PB achieves throughputs close to 1 MIPS per MHz. This empowers system designers to optimize the device for power consumption versus processing speed.

Key features

• High Performance, Low-Power AVR 8-bit Microcontroller Fam
• Advanced RISC Architecture
• 131 Powerful Instructions
• Most Single Clock Cycle Execution
• 32x8 General Purpose Working Registers
• Fully Static Operation
• Up to 20 MIPS Throughput at 20 MHz
• On-Chip 2-Cycle Multiplier
• High Endurance Nonvolatile Memory Segments
• 32 KB of In-System Self-Programmable Flash program memory
• 1 KB EEPROM
• 2 KB Internal SRAM
• Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
• Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program True Read-While-Write Operation
• Programming Lock for Software Security
• Peripheral Touch Controller (PTC) Capacitive Touch Buttons, Sliders, and Wheels
• 24 Self-Cap Channels and 144 Mutual Cap Channels
• Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
• Three 16-bit Timer/Counters with Separate Prescaler, Compare Mode, and Capture Mode
• Real-Time Counter with Separate Oscillator
• Ten PWM Channels
• 8-channel 10-bit ADC
• Two Programmable Serial USARTs
• Two Master/Slave SPI Serial Interfaces
• Two Byte-Oriented Two-Wire Serial Interfaces (Philips I²C Compatible)
• Programmable Watchdog Timer with Separate On-chip Oscillator
• On-Chip Analog Comparator
• Interrupt and Wake-Up on Pin Change
• Power-On Reset and Programmable Brown-Out Detection
• Internal 8 MHz Calibrated Oscillator
• External and Internal Interrupt Sources
• Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
• Clock Failure Detection Mechanism and Switch to Internal 8 MHz RC Oscillator in case of Failure
• Individual Serial Number to Represent a Unique ID
• 27 Programmable I/O Lines
• 32-pin TQFP and 32-pin QFN /MLF
• Operating Voltage: 1.8 - 5.5V
• Temperature Range: -40℃ to 105℃
• Speed Grade: 0 - 4 MHz @ 1.8 - 5.5V 0 - 10 MHz @ 2.7 - 5.5V 0 - 20 MHz @ 4.5 - 5.5V
• Power Consumption at 1 MHz, 1.8V, 25℃
• Active Mode: 0.24 mA
• Power-Down Mode: 0.2 μA
• Power-Save Mode: 1.3 μA (Including 32 kHz RTC)
