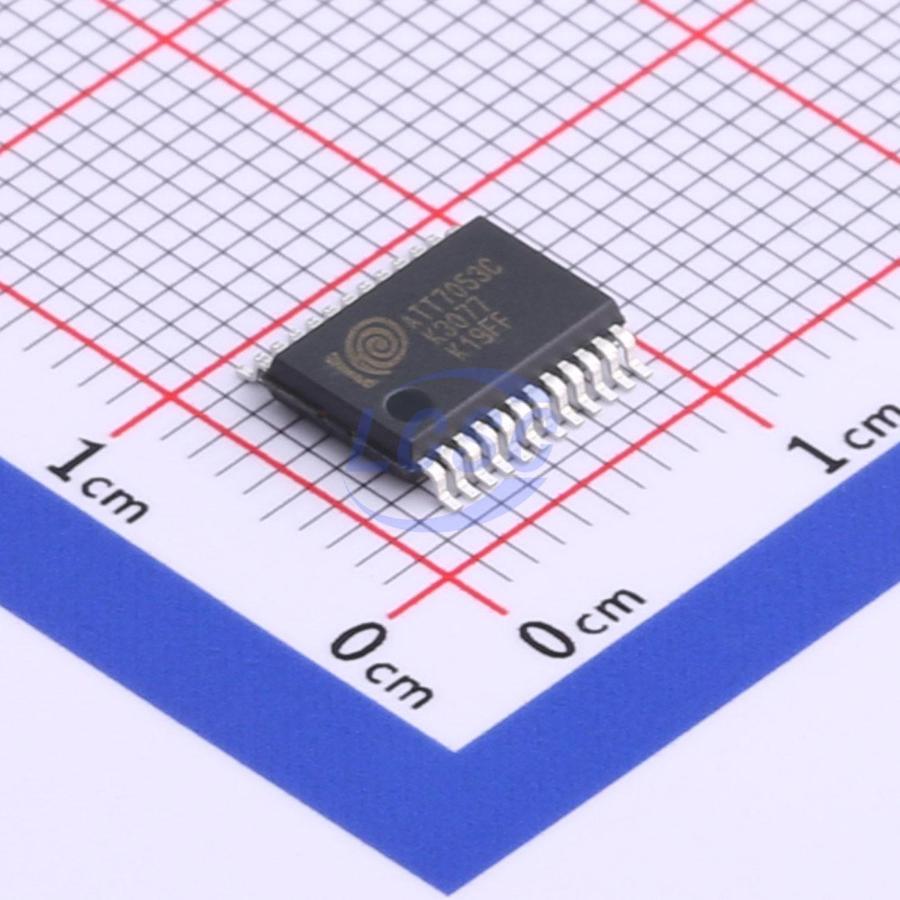

HiTrend Tech (Shanghai)Datasheet (PDF)
ATT7053C-TR
3V~5.5V 4mA SSOP-24 Energy Metering
SSOP-24RoHSActive
- Manufacturer
- HiTrend Tech (Shanghai)
- Manufacturer part #
- ATT7053C-TR
- Store part #
- C696259
- Package / case
- SSOP-24
- Category
- Energy Metering
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,222 in stock
#C696259
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.67 | ₹129.67 |
| 10+ | ₹105.17 | ₹1,051.70 |
| 30+ | ₹93.02 | ₹2,790.60 |
| 100+ | ₹81.10 | ₹8,110.00 |
| 500+ | ₹70.25 | ₹35,125.00 |
| 1,000+ | ₹66.57 | ₹66,570.00 |
1 × ₹129.67
₹129.67
excl. GST
₹153.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
ATT7053C-TR
₹129.67 for 1 + GST
Specifications
- Clock Frequency
- 6MHz
- Operating Temperature
- -40℃~+85℃
- Voltage Reference Value
- 1.2V
- Voltage - Supply
- 3V~5.5V
- Dynamic Range
- 8000:1
- Function
- Pulse output;Interrupt control;Anti-tamper detection;FIFO buffer;Digital calibration and compensation
- Number of Channels
- 3
- Interface
- SPI;UART
- Meter Type
- Single-Phase Energy Metering IC
- Current - Supply
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.263 g
Overview
Key features
- Triple-channel 19-bit Sigma-Delta ADC
- 8000:1 dynamic range support
- Better small-signal accuracy than 5000:1 version
- Simultaneous active and reactive power measurement for two metering channels
- Active, reactive, apparent power and energy pulse output support
- Simultaneous RMS measurement across all three ADC channels, plus voltage channel frequency
- SPI communication support (3-wire and 4-wire SPI) or UART communication
- Interrupt support: zero-crossing, sampling, energy pulse, meter calibration, etc.
- Full-speed operating current < 4mA
- Power supply monitoring
- Voltage sag and peak detection
- Enhanced metering reliability mechanism
- Shunt resistor live-wire loss detection support
- CRC verification for calibration parameters
- 128-point ADC waveform buffer
- New chip-select pin S0
