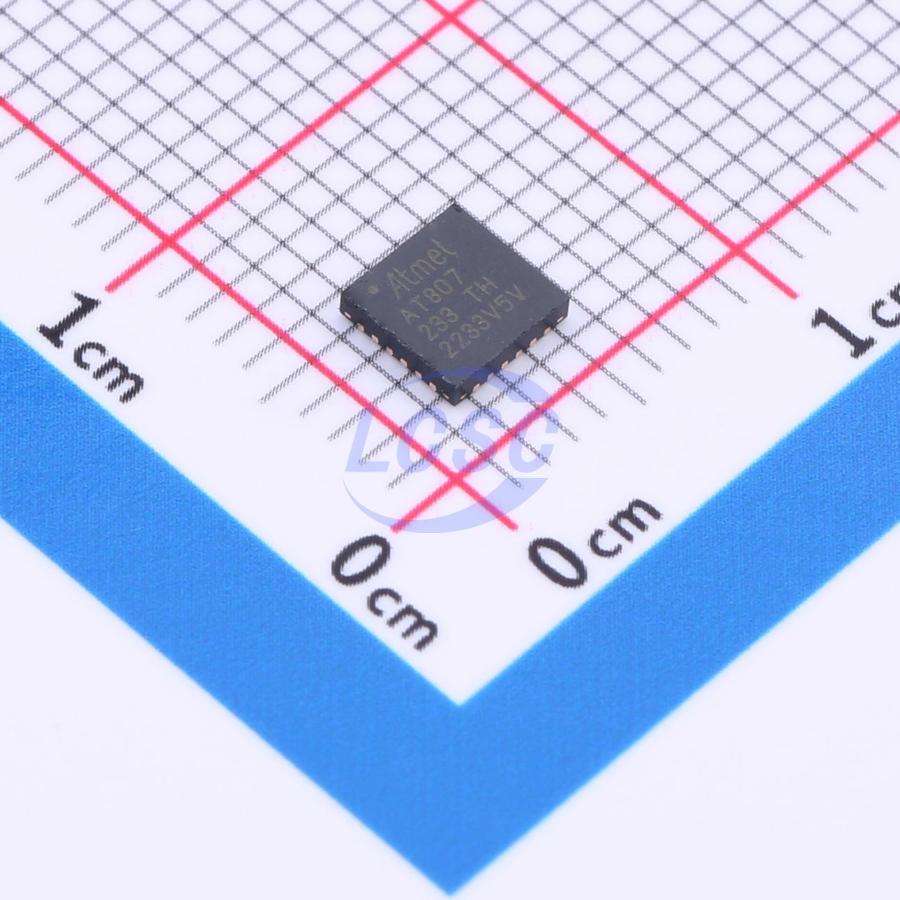

ATTINY807-MN

The ATtiny804/806/807/1604/1606/1607 are members of the tinyAVR 0-series of microcontrollers, using the AVR processor with hardware multiplier, running at up to 20 MHz, with 8/16 KB Flash, 512/1024 bytes of SRAM, and 128/256 bytes of EEPROM in a 14-, 20-, or 24-pin package. The tinyAVR 0-series uses the latest technologies with a flexible, low-power architecture, including Event System, accurate analog features, and Core Independent Peripherals (CIPs).

Key features

• AVR CPU
• Running at up to 20 MHz
• Single-cycle I/O access
• Two-level interrupt controller
• Two-cycle hardware multiplier
• 8/16 KB In-system self-programmable Flash memory
• 128/256 bytes EEPROM
• 512/1024 bytes SRAM
• Write/erase endurance:
• Flash 10,000 cycles
• EEPROM 100,000 cycles
• Data retention:
• 40 years at 55℃
• 16/20 MHz low-power internal RC oscillator
• 32.768 kHz Ultra Low-Power (ULP) internal RC oscillator
• External clock input
• Single-Pin Unified Program and Debug Interface (UPDI)
• Idle with all peripherals running for immediate wake-up
• Standby
• Configurable operation of selected peripherals
• Power-Down with full data retention
• One 16-bit Timer/Counter type A (TCA) with a dedicated period register and three compare channels
• One 16-bit Timer/Counter type B (TCB) with input capture
• One 16-bit Real-Time Counter (RTC) running from an external clock or internal RC oscillator
• Watchdog Timer (WDT) with Window mode, with a separate on-chip oscillator
• One USART with fractional baud rate generator, auto-baud, and start-of-frame detection
• One host/client Serial Peripheral Interface (SPI)
• One Two-Wire Interface (TWI) with dual address match Philips I²C compatible
• Standard mode (Sm, 100 kHz)
• Fast mode (Fm, 400 kHz)
• Fast mode plus (Fm+, 1 MHz)
• One Analog Comparator (AC) with a low propagation delay
• One 10-bit 115 ksps Analog-to-Digital Converter (ADC)
• Multiple voltage references (VREF)
• Event System (EVSYS) for CPU independent and predictable inter-peripheral signaling
• Configurable Custom Logic (CCL) with two programmable look-up tables
• Automated CRC memory scan
• External interrupt on all general purpose pins
• Up to 22 programmable I/O lines
• 14-pin SOIC150
• 20-pin SOIC300
• 20-pin VQFN 3x3 mm
• 24-pin VQFN 4x4 mm
• Temperature Ranges: -40℃ to 105℃, -40℃ to 125℃
• Speed Grades:
• 0 - 5 MHz @ 1.8V – 5.5V
• 0 - 10 MHz @ 2.7V – 5.5V
• 0 - 20 MHz @ 4.5V – 5.5V
