VBsemi ElecDatasheet (PDF)

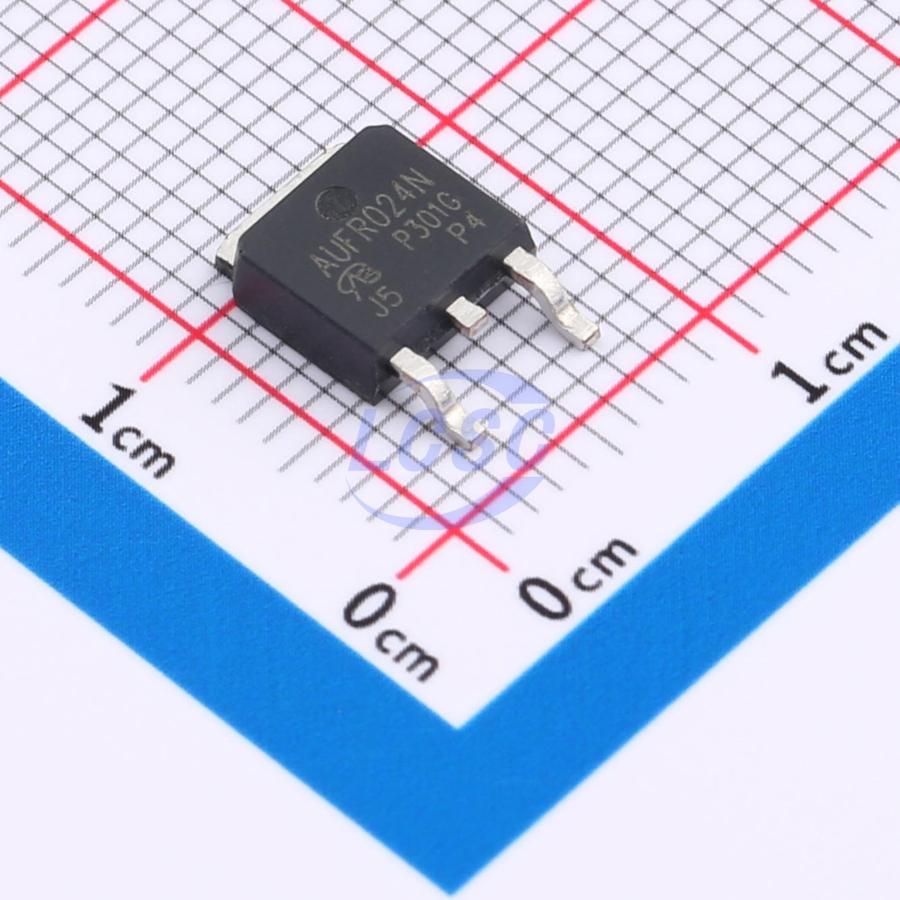

AUFR024N-VB
N-Channel 60V 18A 41.7W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 60V 18A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AUFR024N-VB
- Store part #
- C7568982
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C7568982
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.60 | ₹57.60 |
| 10+ | ₹46.42 | ₹464.20 |
| 30+ | ₹41.49 | ₹1,244.70 |
| 100+ | ₹35.68 | ₹3,568.00 |
| 500+ | ₹29.45 | ₹14,725.00 |
| 1,000+ | ₹27.73 | ₹27,730.00 |
1 × ₹57.60
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AUFR024N-VB
₹57.60 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 85pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 73mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.505 g
Overview
Applications
- DC/DC Converters - DC/AC Inverters - Motor Drivers
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
