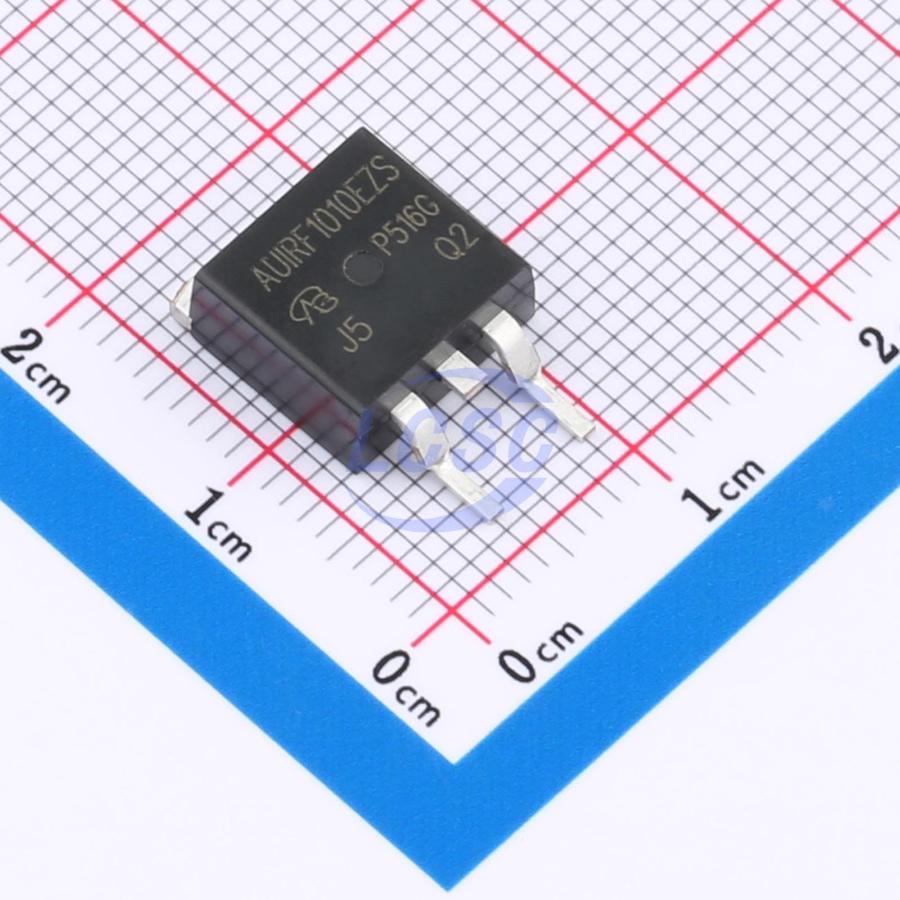

AUIRF1010EZSTRL-VB
N-Channel 60V 150A 220W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AUIRF1010EZSTRL-VB
- Store part #
- C47994011
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47994011
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹186.13 | ₹186.13 |
| 10+ | ₹158.48 | ₹1,584.80 |
| 50+ | ₹144.78 | ₹7,239.00 |
| 100+ | ₹92.53 | ₹9,253.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 1,000+ | ₹80.12 | ₹80,120.00 |
1 × ₹186.13
₹186.13
excl. GST
₹219.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AUIRF1010EZSTRL-VB
₹186.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 150A
- Output Capacitance(Coss)
- 715pF
- Ciss-Input Capacitance
- 7nF
- Pd - Power Dissipation
- 220W
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 145nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Applications
- Power Supply
- Uninterruptible Power Supply
- AC/DC Switching Power Supply
- Lighting
- Synchronous Rectification
- DC-DC Converter
- Motor Drive Switch
- DC-AC Inverter
- Solar Micro Inverter
- Class D Audio Amplifier
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SUB75N06-07L-VB#C20755400VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹136.96 · 5 in stock | View |
 | IPB45N06S4L-08-VB#C22389649VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
 | IPB110N06LG-VB#C22389793VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
 | 2SK4066_12-VB#C29778777VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
 | SPB100N06S2-05-VB#C29779196VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹136.96 · 50 in stock | View |
