InfineonDatasheet (PDF)

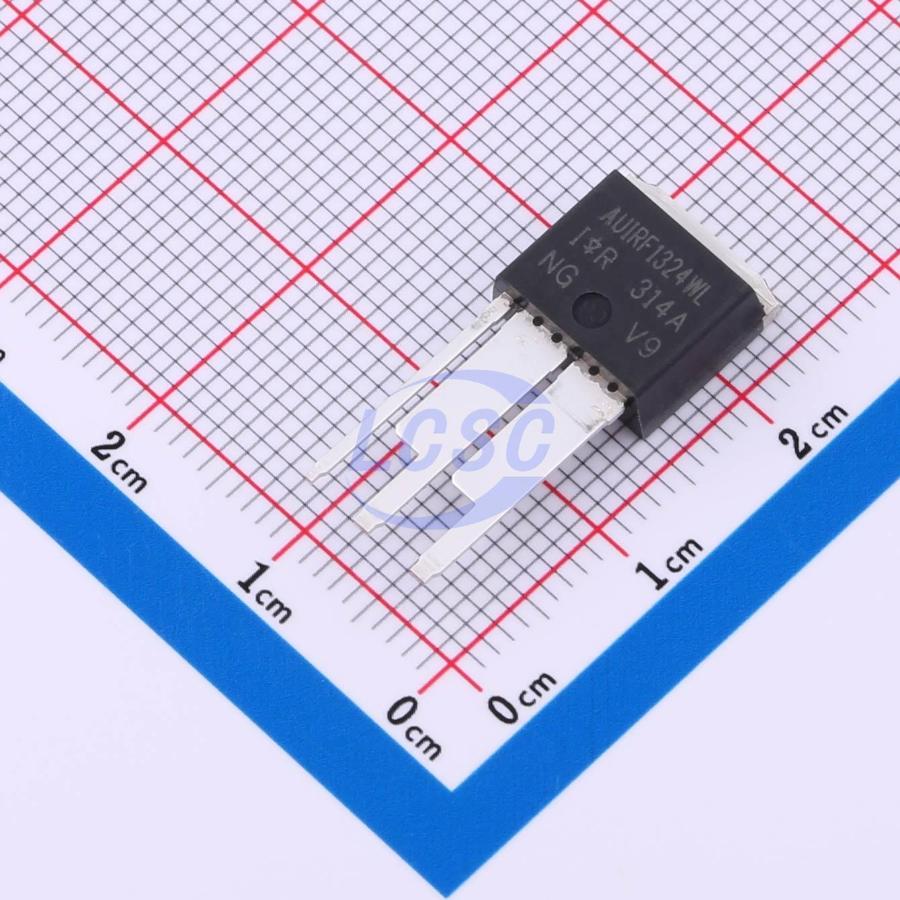

AUIRF1324WL
300W 24V 240A 1.3mΩ@10V 1 N-channel N-Channel TO-262W-3 Single FETs, MOSFETs RoHS
TO-262W-3ROHS CompliantActive
MOSFET N-CH 24V 240A TO-262W-3
- Manufacturer
- Infineon
- Manufacturer part #
- AUIRF1324WL
- Store part #
- C533221
- Package / case
- TO-262W-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C533221
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,651.67 | ₹1,651.67 |
| 10+ | ₹1,420.48 | ₹14,204.80 |
| 30+ | ₹1,279.45 | ₹38,383.50 |
| 100+ | ₹1,161.46 | ₹1,16,146.00 |
1 × ₹1,651.67
₹1,651.67
excl. GST
₹1,948.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
AUIRF1324WL
₹1,651.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.39nF
- Ciss-Input Capacitance
- 7.63nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 24V
- Current - Continuous Drain(Id)
- 240A
- Reverse Transfer Capacitance (Crss)
- 1.96nF
- RDS(on)
- 1.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.767 g
Overview
This product in a wide-lead TO-262 package is designed for automotive applications. Compared to products using the same silicon die in a standard TO-262 package, it offers more than 50% reduction in lead resistance and over 20% reduction in on-resistance Rds(on). This significantly helps reduce conduction losses, achieve higher current levels, or enable cooler system operation with improved efficiency. Additional features include a 175°C junction operating temperature, fast switching speed, and higher repetitive avalanche ratings. Combined, these characteristics make the design a highly efficient and reliable device for automotive and other applications.
Key features
- Advanced process technology
- Ultra-low on-resistance
- 50% reduction in lead resistance
- Operating temperature up to 175°C
- Fast switching
- Repetitive avalanche rated up to maximum junction temperature Tjmax
- Lead-free, RoHS compliant
- AEC-Q qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| AUIRF2804WL#C533241Infineon · TO-262W-3 | Infineon | TO-262W-3 | On request | ₹837.43 · 0 in stock | View | |
| AUIRF3004WL#C533245Infineon · TO-262W-3 | Infineon | TO-262W-3 | On request | ₹883.79 · 0 in stock | View | |
