InfineonDatasheet (PDF)

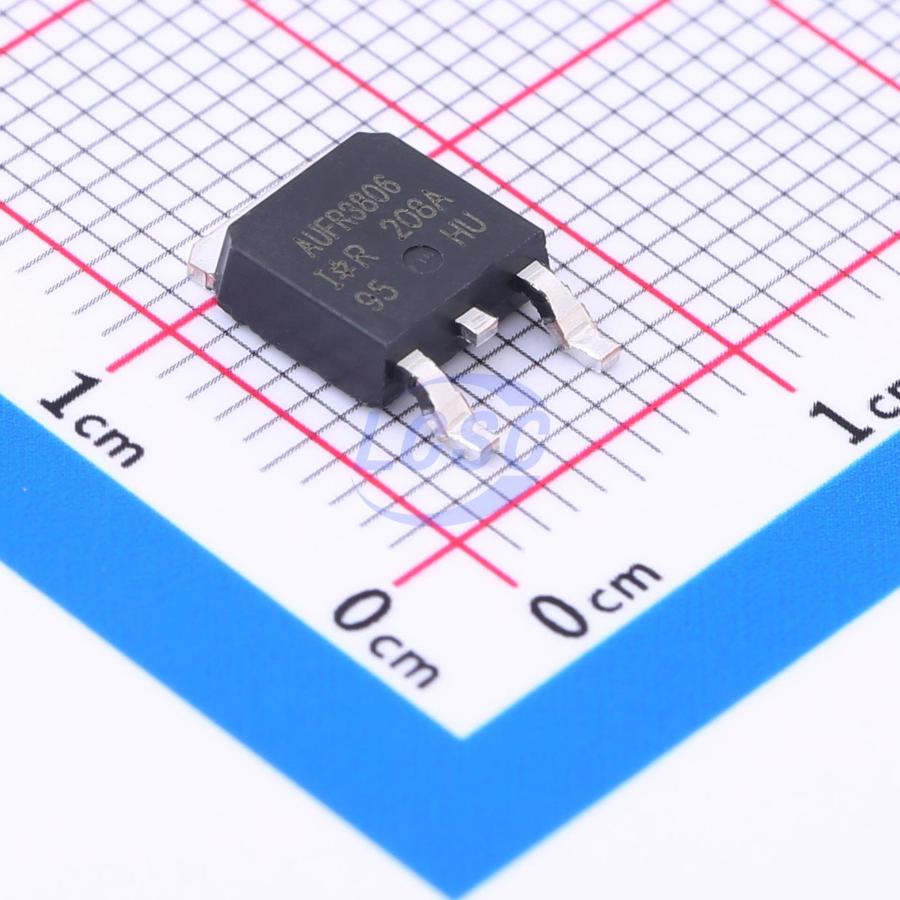

AUIRFR3806TRL
N-Channel 60V 43A 71W Surface Mount DPAK(TO-252AA)
DPAK(TO-252AA)ROHS3 CompliantActive
MOSFET N-CH 60V 43A DPAK(TO-252AA)
- Manufacturer
- Infineon
- Manufacturer part #
- AUIRFR3806TRL
- Store part #
- C533337
- Package / case
- DPAK(TO-252AA)
- Category
- Single FETs, MOSFETs
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C533337
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹474.77 | ₹474.77 |
| 10+ | ₹452.44 | ₹4,524.40 |
| 30+ | ₹439.12 | ₹13,173.60 |
| 100+ | ₹425.79 | ₹42,579.00 |
| 500+ | ₹419.66 | ₹2,09,830.00 |
| 1,000+ | ₹416.78 | ₹4,16,780.00 |
1 × ₹474.77
₹474.77
excl. GST
₹560.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AUIRFR3806TRL
₹474.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 1.15nF
- Pd - Power Dissipation
- 71W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 43A
- Reverse Transfer Capacitance (Crss)
- 67pF
- RDS(on)
- 12.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.65 g
Overview
Specifically designed for Automotive applications, this HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- Dynamic dV/dT Rating
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free, RoHS Compliant Automotive Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SQD40N06-14L_GE3#C3291003VISHAY · TO-252 | VISHAY | TO-252 | 111 | ₹235.26 · 111 in stock | View | |
 | IRFR3806TRPBF#C148157Infineon · TO-252 | Infineon | TO-252 | 28,169 | ₹82.09 · 28,169 in stock | View |
 | IPD50N08S4-13#C536779Infineon · TO-252-3 | Infineon | TO-252-3 | 30 | ₹220.74 · 30 in stock | View |
 | SP60N15HTH#C41354979Siliup · TO-252 | Siliup | TO-252 | 240 | ₹12.78 · 240 in stock | View |
| IRFR3806TR(UMW)#C5375972UMW · TO-252 | UMW | TO-252 | 70 | ₹23.14 · 70 in stock | View | |
