VBsemi ElecDatasheet (PDF)

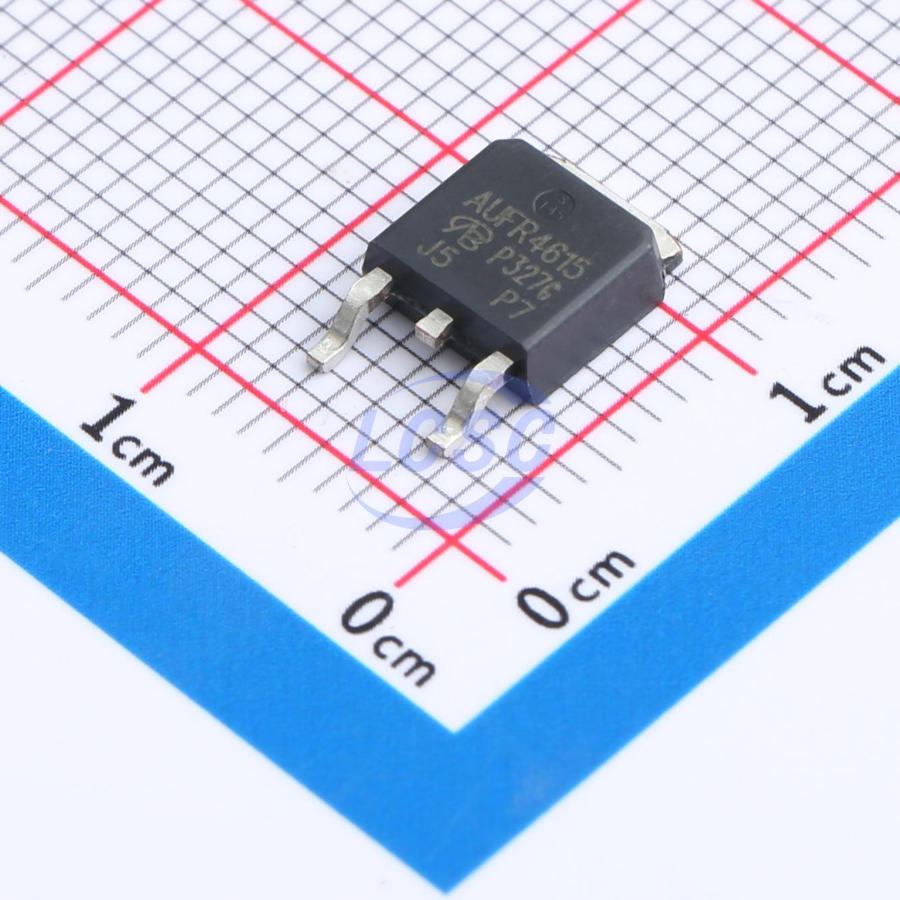

AUIRFR4615TR-VB
N-Channel 150V 35.5A 3.1W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 150V 35.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- AUIRFR4615TR-VB
- Store part #
- C7494544
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C7494544
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.11 | ₹139.11 |
| 10+ | ₹116.91 | ₹1,169.10 |
| 30+ | ₹105.80 | ₹3,174.00 |
| 100+ | ₹94.93 | ₹9,493.00 |
| 500+ | ₹67.71 | ₹33,855.00 |
| 1,000+ | ₹64.23 | ₹64,230.00 |
1 × ₹139.11
₹139.11
excl. GST
₹164.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AUIRFR4615TR-VB
₹139.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Output Capacitance(Coss)
- 160pF
- Current - Continuous Drain(Id)
- 35.5A
- Ciss-Input Capacitance
- 1.735nF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 32mΩ@10V;45mΩ@8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 23nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Applications
- Primary-side switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Ultra-low Qg for reduced switching losses
- 100% Rg tested
- 100% avalanche tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBE1154N#C7429147VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹115.58 · 15 in stock | View |
 | IRFR4615TRPBF-VB#C7494588VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 23 | ₹115.83 · 23 in stock | View |
 | IRFR4615TRLPBF-VB#C7568889VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹133.24 · 40 in stock | View |
 | FDD86252-VB#C29779289VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 8 | ₹110.07 · 8 in stock | View |
 | AOD254-VB#C18212601VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹136.90 · 20 in stock | View |
