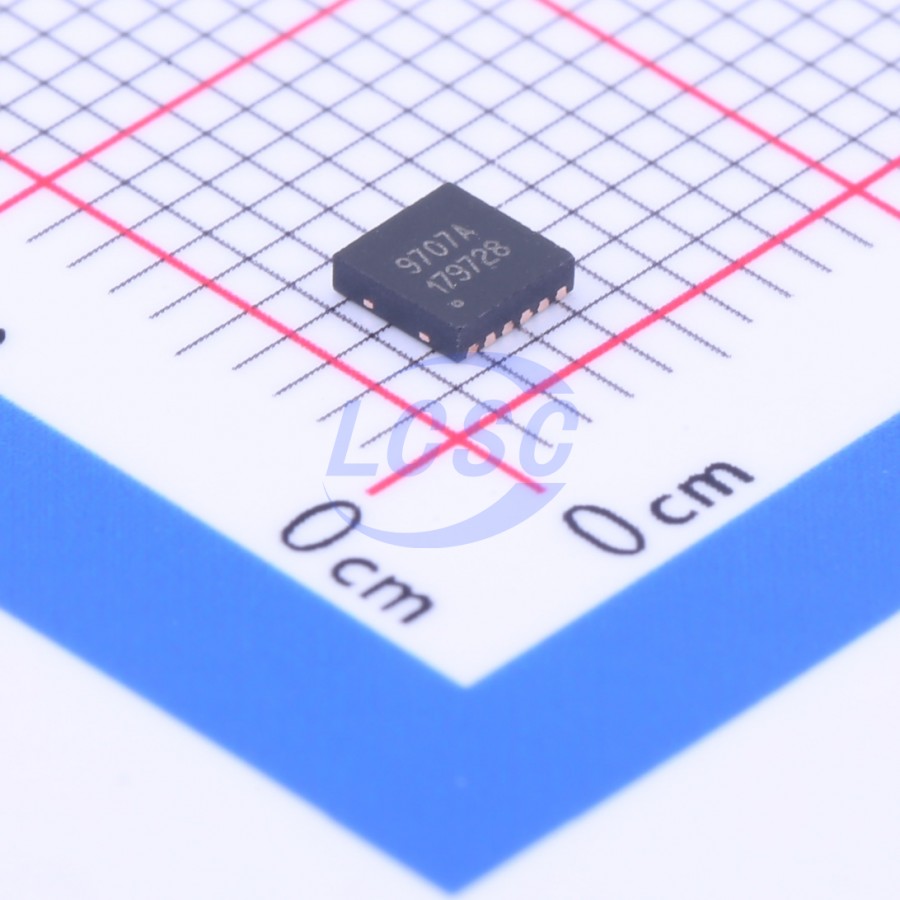

AUR9707AGD

The AUR9707 is a high efficiency step-down DC-DC voltage converter. The chip operation is optimized using constant frequency, peak-current mode architecture with built-in synchronous power MOSFET switchers and internal compensators to reduce external part counts. It is automatically switching between the normal PWM mode and LDO mode to offer improved system power efficiency covering a wide range of loading conditions. The oscillator and timing capacitors are all built-in providing an internal switching frequency of 1.5MHz that allows the use of small surface mount inductors and capacitors for portable product implementations. Additional features included Soft Start (SS), Under Voltage Lock Out (UVLO), Input Over Voltage Protection (IOVP) and Thermal Shutdown Detection (TSD) are integrated to provide reliable product applications. The device is available in adjustable output voltage versions ranging from 1V to 3.3V, and is able to deliver up to 1A. The AUR9707 is available in WDFN-3×3-12 package.

Applications

• Mobile Phone
• Digital Camera
• MP3 Player
• Headset
• Radio
• Other Hand-held Instrument
• Post DC-DC Voltage Regulation
• PDA
• Notebook Computer

Key features

• Dual Channel High Efficiency Buck Power Converter
• Low Quiescent Current
• Output Current: 1A
• Adjustable Output Voltage from 1V to 3.3V
• Wide Operating Voltage Range: 2.5V to 5.5V
• Built-in Power Switches for Synchronous Rectification with High Efficiency
• Feedback Voltage: 600mV
• 1.5MHz Constant Frequency Operation
• Automatic PWM/LDO Mode Switching Control
• Thermal Shutdown Protection
• Low Drop-out Operation at 100% Duty Cycle
• No Schottky Diode Required
• Internal Input Over Voltage Protection
