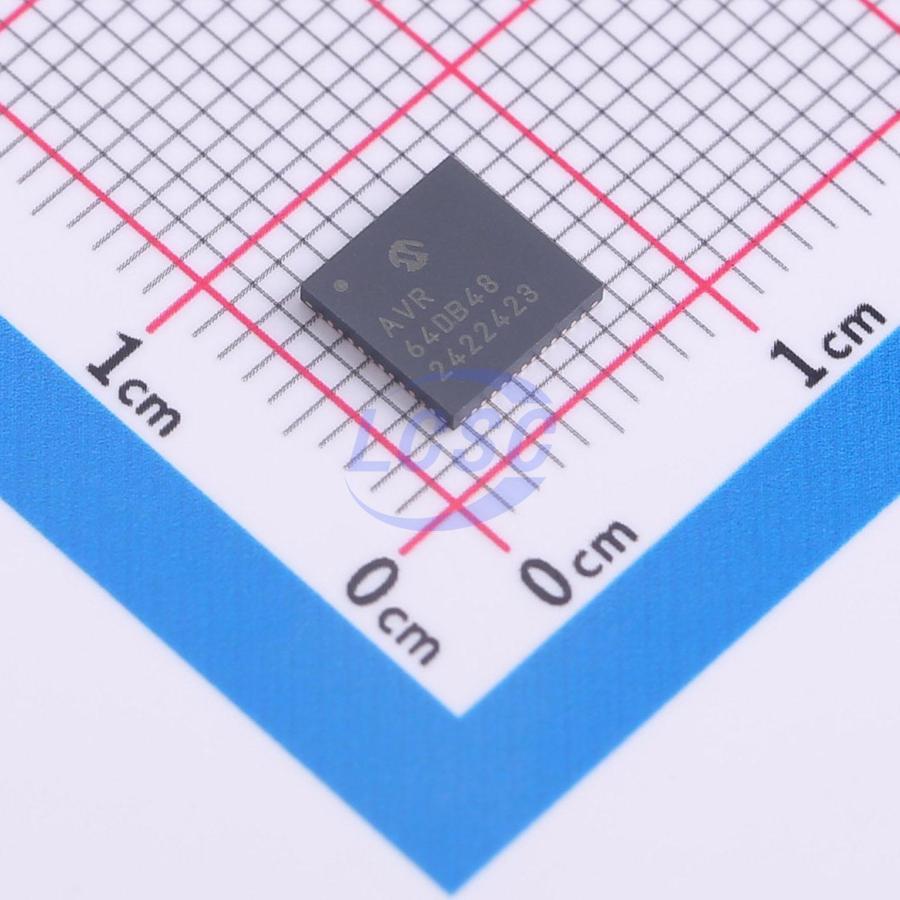

AVR64DB48T-I/6LX

The AVR64DB28/32/48/64 microcontrollers of the AVR DB family of microcontrollers are using the AVR CPU with hardware multiplier running at clock speeds up to 24 MHz. They come with 64 KB of Flash, 8 KB of SRAM, and 512 bytes of EEPROM. The microcontrollers are available in 28-, 32-, 48- and 64-pin packages. The AVR DB family uses the latest technologies from Microchip with a flexible and low-power architecture, including Event System, accurate analog subsystems, and advanced digital peripherals.

Key features

• AVR CPU
• Running at up to 24 MHz
• Single-cycle I/O register access
• Two-level interrupt controller
• Two-cycle hardware multiplier
• Supply voltage range: 1.8V to 5.5V
• 64 KB In-System self-programmable Flash memory
• 512B EEPROM
• 8 KB SRAM
• 32B of user row in nonvolatile memory that can keep data during chip-erase and be programmed while the device is locked
• Write/erase endurance: Flash: 10,000 cycles; EEPROM: 100,000 cycles
• Data retention: 40 Years at 55℃
• Power-on Reset (POR) circuit
• Brown-out Detector (BOD) with user-programmable levels
• Voltage Level Monitor (VLM) with interrupt at a programmable level above the BOD level
• Clock failure detection
• Clock options:
• High-precision internal oscillator with selectable frequency up to 24 MHz (OSCHF)
• Auto-tuning for improved internal oscillator accuracy
• Internal PLL up to 48 MHz for high-frequency operation of Timer/Counter type D (PLL)
• Internal ultra-low power 32.768 kHz oscillator (OSC32K)
• External 32.768 kHz crystal oscillator (XOSC32K)
• External clock input
• External high-frequency crystal oscillator (XOSCHF) with clock failure detection
• Single pin Unified Program and Debug Interface (UPDI)
• Three sleep modes:
• Idle with all peripherals running for immediate wake-up
• Standby with a configurable operation of selected peripherals
• Power-Down with full data retention
• Up to two 16-bit Timer/Counters type A (TCA) with three compare channels for PWM and waveform generation
• Up to five 16-bit Timer/Counters type B (TCB) with input capture for capture and signal measurements
• One 12-bit PWM Timer/Counter type D (TCD) optimized for power control
• One 16-bit Real-Time Counter (RTC) that can run from external crystal or internal oscillator
• Up to six USARTs
• Operation modes: RS-485, LIN client, host SPI, and IrDA
• Fractional baud rate generator, auto-baud, and start-of-frame detection
• Two SPIs with host/client operation modes
• Up to two Two-Wire Interface (TWI) with dual address match
• Independent host and client operation (Dual mode)
• Phillips I²C compatible
• Standard mode (Sm, 100 kHz)
• Fast mode (Fm, 400 kHz)
• Fast mode plus (Fm+, 1 MHz)
• Event System for CPU-independent and predictable inter-peripherals signaling
• Configurable Custom Logic (CCL) with up to six programmable Look-up Tables (LUTs)
• One 12-bit 130 ksps differential Analog-to-Digital Converter (ADC)
• Three Analog Comparators (ACs) with window compare functions
• One 10-bit Digital-to-Analog Converter (DAC)
• Up to three Zero-Cross Detectors (ZCDs)
• Analog Signal Conditioning (OPAMP) peripheral with up to three op amps, each with an internal resistor ladder that allows for many useful configurations with no external components
• Multiple voltage references:
• 1.024V
• 2.048V
• 2.500V
• 4.096V
• External Voltage Reference (VREFA)
• Supply Voltage (VDD)
• Automated Cyclic Redundancy Check (CRC) Flash program memory scan
• Watchdog Timer (WDT) with Window mode, and separate on-chip oscillator
• External interrupt on all general purpose pins
• I/O and Packages:
• Multi-Voltage I/O (MVIO) on I/O port C
• Selectable input voltage threshold
• Up to 55/54 programmable I/O pins
• 28-pin SSOP, SOIC and SPDIP
• 32-pin VQFN 5x5 mm and TQFP 7x7 mm
• 48-pin VQFN 5x5 mm and TQFP 7x7 mm
• 64-pin VQFN 9x9 mm and TQFP 10x10 mm
• Temperature Ranges:
• Industrial: -40℃ to 85℃
• Extended: -40℃ to 125℃
