AWINIC(Shanghai Awinic Tech)

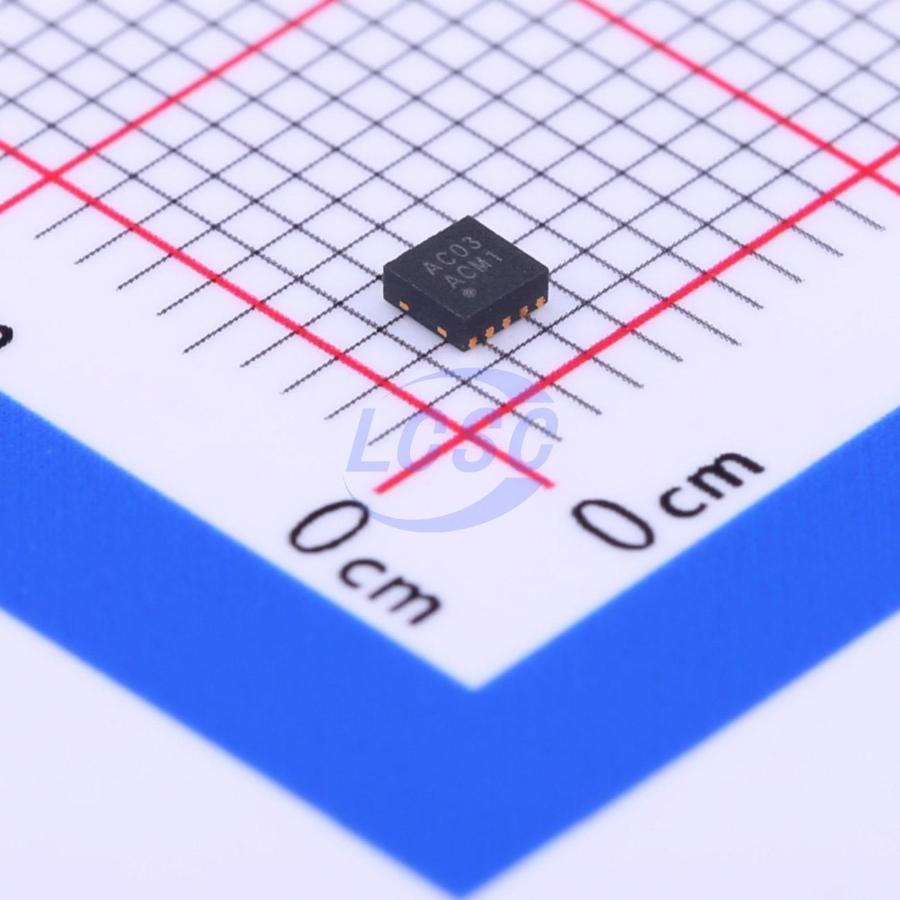

AW2013DNR

400kHz 3 15mA 2.5V~3.3V DFN-10-EP(2x2) LED Drivers ICs RoHS

DFN-10-EP(2x2)ROHS CompliantActive

3-channel LED Driver with I²C Compatible Interface

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW2013DNR
Store part #: C252440
Package / case: DFN-10-EP(2x2)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,915 in stock

#C252440

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
5+	₹27.45	₹137.25
50+	₹21.76	₹1,088.00
150+	₹19.33	₹2,899.50
500+	₹16.27	₹8,135.00
3,000+	₹13.81	₹41,430.00
6,000+	₹13.01	₹78,060.00

Quantity (min 5, multiples of 5)

5 × ₹27.45

₹137.25

excl. GST

₹161.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW2013DNR

₹137.25 for 5 + GST

Specifications

Frequency - Switching: 400kHz
Operating temperature: -40℃~+85℃
Number of Channels: 3
Output Current: 15mA
Voltage - Input(DC): 2.5V~3.3V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

AW2013 is a 3-channel LED driver supporting auto breathing mode with I2C interface. It can drive 3 individual LEDs or one group of RGB. It drives LEDs with common anode, constant current. The brightness can be modulated in PWM with 256 steps. The output current can be configured in 4 levels: 15mA, 10mA, 5mA, 0mA (default). It supports fade-in and fade-out effect for brightness control. There are two modes: the Direct PWM Control mode and One Short Programming mode. In the one short programming mode, it’s flexible to set the breathing speed, timing, brightness and repeat times.
