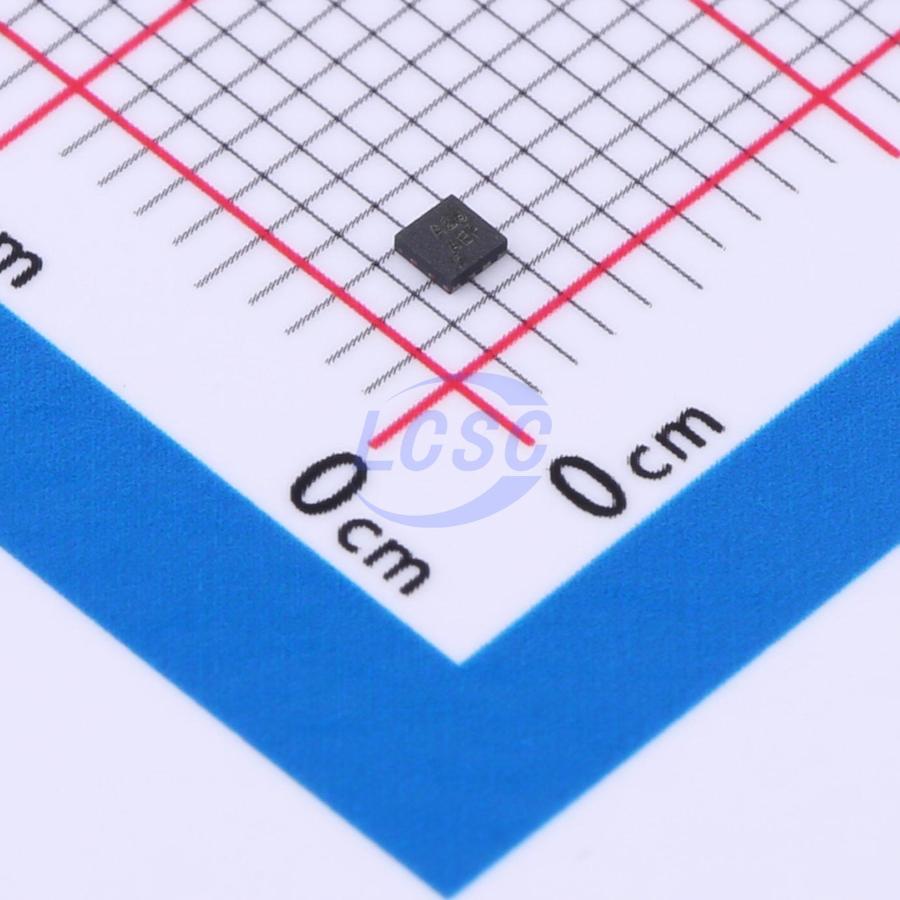

AW2026DNR

400kHz 3 25.5mA 2.4V~5.5V DFN-8-EP(1.5x1.5) LED Drivers ICs RoHS

DFN-8-EP(1.5x1.5)ROHS CompliantActive

3-Channel Breathing LED Driver with I2C Interface

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW2026DNR
Store part #: C5162548
Package / case: DFN-8-EP(1.5x1.5)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,060 in stock

#C5162548

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
5+	₹37.26	₹186.30
50+	₹29.41	₹1,470.50
150+	₹26.04	₹3,906.00
500+	₹21.84	₹10,920.00
3,000+	₹19.04	₹57,120.00
6,000+	₹17.91	₹1,07,460.00

Quantity (min 5, multiples of 5)

5 × ₹37.26

₹186.30

excl. GST

₹219.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW2026DNR

₹186.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency - Switching: 400kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 3
Output Current: 25.5mA
Voltage - Input(DC): 2.4V~5.5V
Constant Current Accuracy: 5%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.015 g

Overview

A three channels constant current LED driver. The max output current is 4-level selectable among 3mA, 6mA, 12mA and 25.5mA. Each LED is 256 current levels configurable so as to achieve 256*256*256 color mixing. The 256-level dimming and 12 bits PWM resolution create fine and smooth dimming effect even in low brightness. In shut down mode, it turns off all internal circuit and the consumption is less than 1μA. In standby mode, I²C interface works and the consumption is less than 10μA. The device requires only 2.4V~5.5V single power supply. An I²C compatible interface in 400kHz fast mode is provided, the device address is 64h. Available in a 1.5mm×1.5mm×0.45mm DFN-8L package.

Key features

3-channel constant current LED drivers
4-level IMAX selections: 3/6/12/25.5mA
256 current levels setting for each LED
Supports 256*256*256 color-mixing
256-level PWM dimming, 12-bit PWM resolution
Automatic breathing light with flexible pattern configuration and running mode
Three independent pattern controllers: pulses repeating, multiple colors alternative, multiple patterns running successively or cyclically
