AWINIC(Shanghai Awinic Tech)

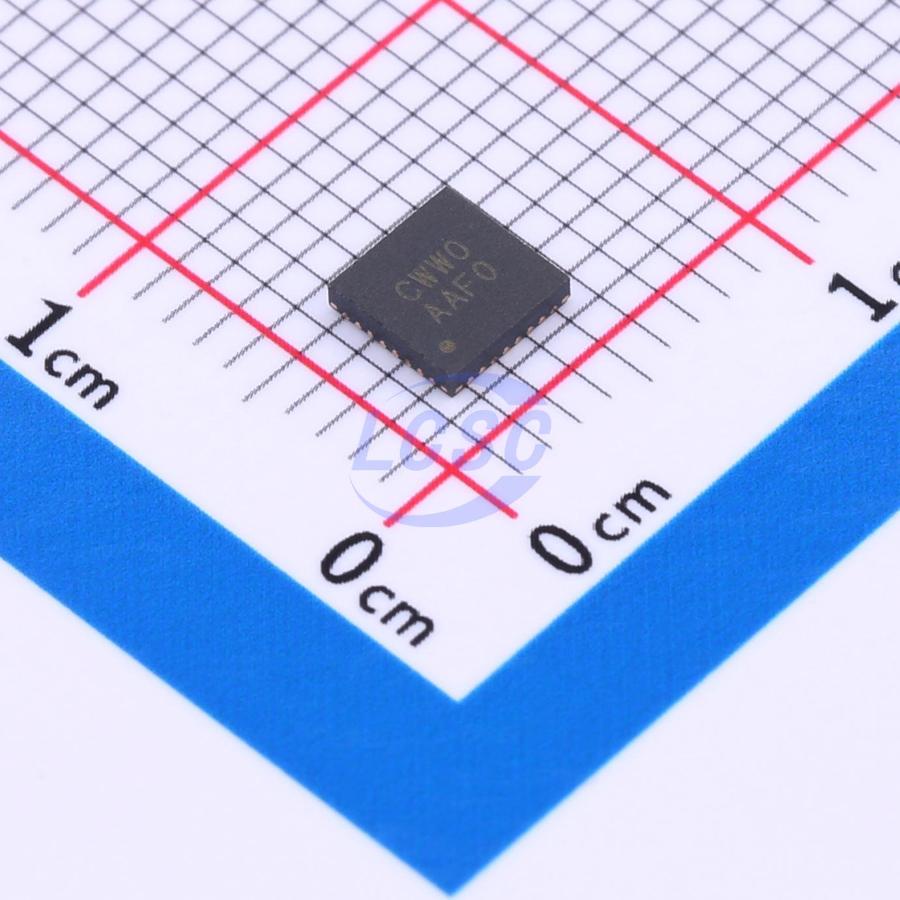

AW21024QNR

0V~5.5V 24 20mA 2.7V~5.5V QFN-32-EP(4x4) LED Drivers ICs RoHS

QFN-32-EP(4x4)ROHS CompliantActive

24-Channel Intelligent 8-Bit RGB LED Driver

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW21024QNR
Store part #: C2891574
Package / case: QFN-32-EP(4x4)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,337 in stock

#C2891574

Stock & price checked 40 h ago

Quantity	Unit price	Pack price
1+	₹58.45	₹58.45
10+	₹51.72	₹517.20
30+	₹48.46	₹1,453.80
100+	₹44.98	₹4,498.00
500+	₹43.02	₹21,510.00
1,000+	₹41.94	₹41,940.00

Quantity (min 1)

1 × ₹58.45

₹58.45

excl. GST

₹68.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 6,000 per reel

AW21024QNR

₹58.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 0V~5.5V
Features: Over-Temperature Protection (OTP);LED open-circuit protection;Short Circuit Protection
Operating temperature: -40℃~+85℃
Number of Channels: 24
Output Current: 20mA
Voltage - Input(DC): 2.7V~5.5V
Constant Current Accuracy: 5%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.076 g

Overview

24-channel high precision constant current LED driver. Each channel has individual 8-bit DC current setting for color-mixing and 8-bit PWM current for brightness control. The maximum global current of each channel is recommended to be 50mA configured via internal register and external resistor REXT. Group control mode, autonomous breathing pattern and rapid RGB control mode are provided for flexible, high efficiency lighting effect programming and fast display updating. Programmable phase-shifting and spread spectrum technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on or off simultaneously. Can be turned off with minimum current consumption by pulling the EN pin low. Operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.
