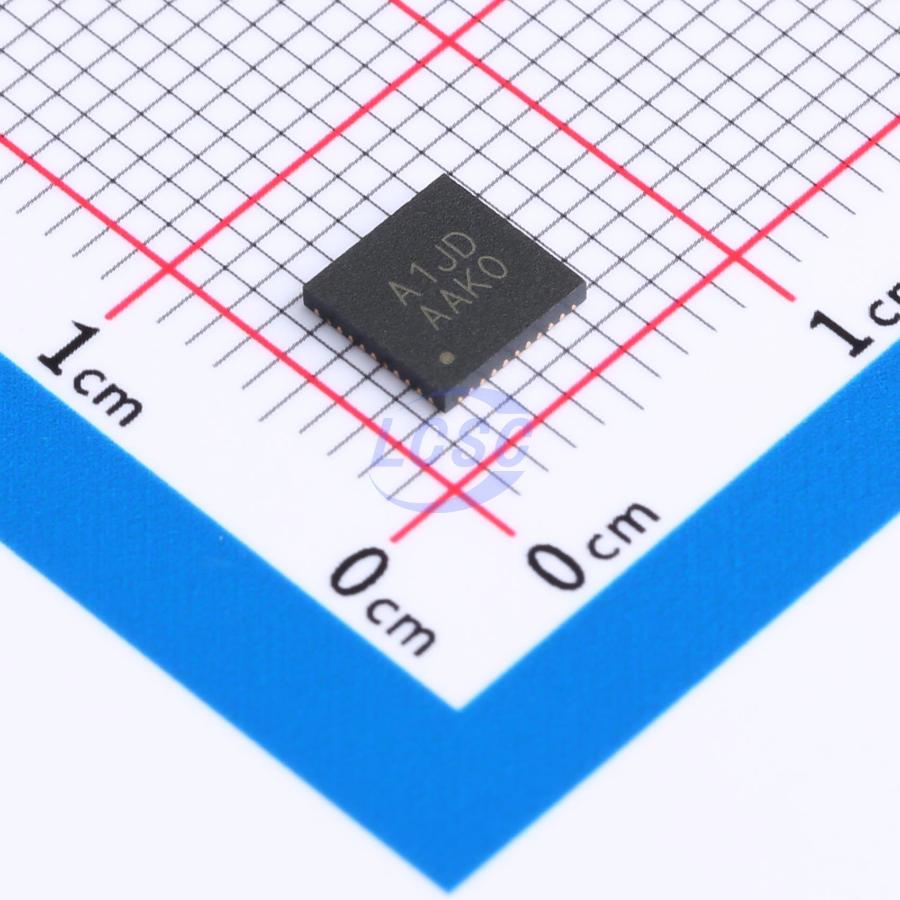

AWINIC(Shanghai Awinic Tech)

AW21036QNR

36 20mA 2.7V~5.5V QFN-44-EP(5x5) LED Drivers ICs RoHS

QFN-44-EP(5x5)ROHS CompliantActive

36-CHANNEL INTELLIGENT 8-BIT RGB LED DRIVER

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW21036QNR
Store part #: C5125743
Package / case: QFN-44-EP(5x5)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,716 in stock

#C5125743

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹86.09	₹86.09
10+	₹69.60	₹696.00
30+	₹61.36	₹1,840.80
100+	₹53.13	₹5,313.00
500+	₹46.41	₹23,205.00
1,000+	₹44.02	₹44,020.00

Quantity (min 1)

1 × ₹86.09

₹86.09

excl. GST

₹101.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 6,000 per reel

AW21036QNR

₹86.09 for 1 + GST

Specifications

Features: Over-Temperature Protection (OTP);LED open-circuit protection;Short Circuit Protection
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 36
Output Current: 20mA
Voltage - Input(DC): 2.7V~5.5V
Constant Current Accuracy: 5%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

36-channel RGB LED Driver Global 256-level DC current configuration Individual 256-level PWM for dimming Individual 256-level current for color-mixing High-precision current sinks Device-to-device error: ±5% Channel-to-channel error: ±5% EMI and audible noise reduction Phase delay and phase inverting scheme Spread spectrum function Flexible LED lighting pattern control LED open/short detection per channel Auto power saving mode when all LEDs off > 32ms Over-temperature protection 400kHz I²C interface, four selectable addresses Power supply: 2.7V~5.5V QFN 5mmX5mmX0.75mm-44L package
