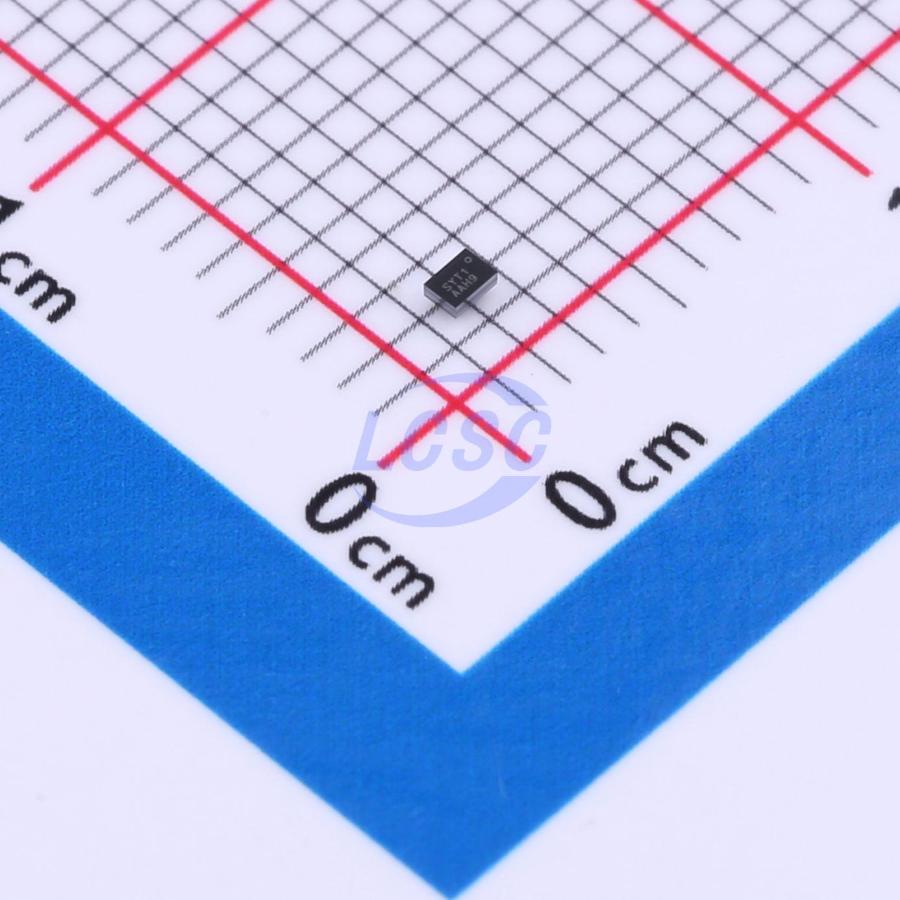

AWINIC(Shanghai Awinic Tech)

AW36099CSR

Boost Adjustable 2.5V~5.5V 500mA WLCSP-6(1.2x0.9) Voltage Regulators - DC DC Switching Regulators RoHS

WLCSP-6(1.2x0.9)ROHS CompliantActive

Synchronous Step-up Converter with Ultra Low Quiescent Current

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW36099CSR
Store part #: C5125806
Package / case: WLCSP-6(1.2x0.9)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C5125806

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹50.21	₹251.05
50+	₹39.69	₹1,984.50
150+	₹35.18	₹5,277.00
500+	₹28.31	₹14,155.00
3,000+	₹25.81	₹77,430.00
6,000+	₹24.30	₹1,45,800.00

Quantity (min 5, multiples of 5)

5 × ₹50.21

₹251.05

excl. GST

₹296.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW36099CSR

₹251.05 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Load disconnect;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 800mV~5.2V
Switch tube (built-in/external): Built-in
Output Voltage: 2.5V~5.5V
Output Current: 500mA
Quiescent Current: 350nA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.01 g

Overview

The AW36099 is a high efficiency synchronous step-up converter with ultra-low quiescent current down to 1 μA. It is optimized for battery-powered applications, such as alkaline battery, coin-cell battery, Li-ion or Li-Polymer battery, that requires long battery life and tiny solution size. The AW36099 uses a hysteretic current mode control scheme with typical 1.4A peak switch current limit when VOUT voltage exceed 2.5V. It consumes 1 μA quiescent current under light load condition and can achieve up to 80% efficiency at 100 μA load with fixed output voltage versions. It supports up to 500 mA output current when input voltage is above 3V, and achieve up to 93% efficiency at 200mA load. The AW36099 operates in down mode and passthrough mode when input voltage is close to or higher than output voltage. In the down mode, the AW36099 will continue to regulate the output voltage even when the input voltage exceeds the output voltage. When VIN > VOUT + 0.37V, It enters pass-through mode and the device stops switching. The rectifying PMOS constantly turns on and lowside switch constantly turns off. The AW36099 build-in true shutdown function when it is disabled, which isolates the load from the input to reduce the current consumption. Also, the AW36099 integrates OVP, OTP, UVLO protections. The AW36099 offers both adjustable output voltage version and fixed output voltage versions. It is available in WLCSP 1.245mm x 0.885mm x 0.600mm-6B and DFN 2mm x 2mm x 0.75mm-6L packages.

Applications

Portable Products
Battery Powered Systems
Wearable Applications
Low Power Wireless Applications
Optical Heart Rate Monitor LED Bias

Key features

Ultra Low Quiescent Current: IQ into VIN Pin: 200nA, IQ into VOUT Pin: 800nA
Operating Input Voltage Range: 0.8V ~ 5.2V
Adjustable Output Voltage from 2.5V ~ 5.5V
ILoad ≤ 0.5A at VOUT = 5V, VIN ≥ 3V
Support Fixed Output Voltage Versions
Operation Mode: Boost Mode, Down Mode, Pass-through Mode
True Cutoff VIN to VOUT path During Shutdown
Up to 80% Efficiency at 100 μA Current Load with fixed output voltage versions
Up to 93% Efficiency at 10mA ~ 300mA Current Load
Build-in OVP, OTP, UVLO Protection
Available in WLCSP 1.245mm x 0.885mm x 0.600mm-6B and DFN 2mm x 2mm x 0.75mm-6L Package
