AWINIC(Shanghai Awinic Tech)

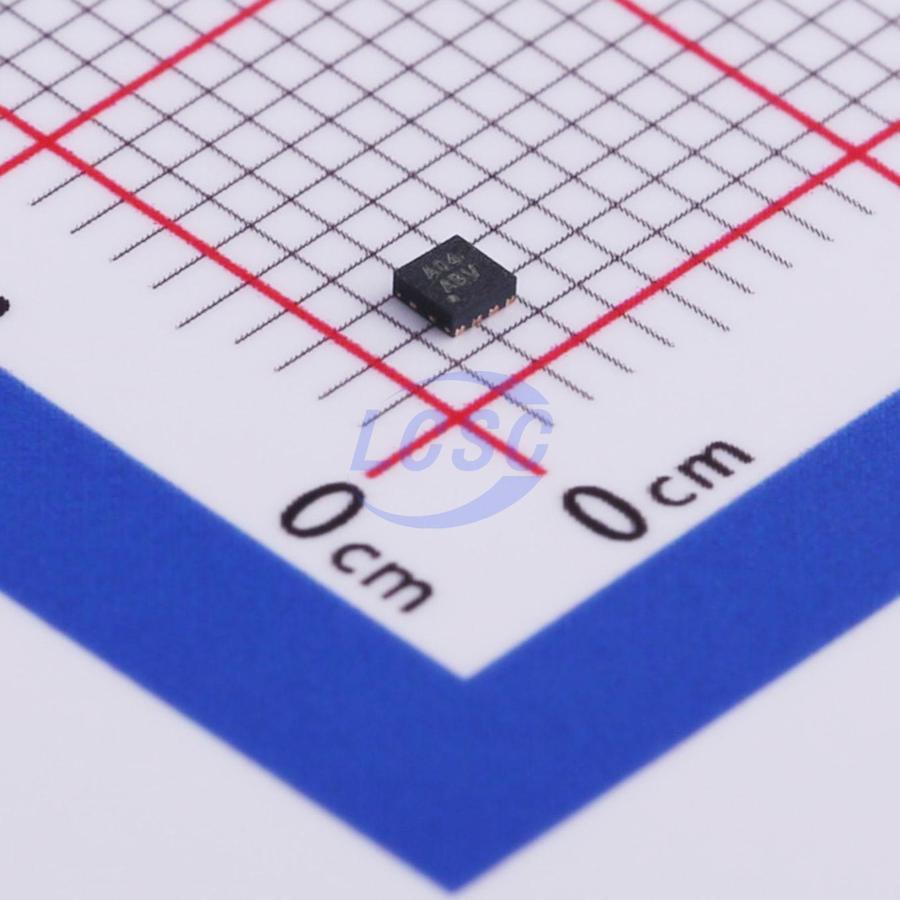

AW36404DNR

1 DC-DC 400mA 2.7V~5.5V DFN-8-EP(1.5x1.5) LED Drivers ICs RoHS

DFN-8-EP(1.5x1.5)ROHS CompliantActive

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW36404DNR
Store part #: C498337
Package / case: DFN-8-EP(1.5x1.5)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,910 in stock

#C498337

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
5+	₹13.92	₹69.60
50+	₹11.01	₹550.50
150+	₹9.54	₹1,431.00
500+	₹8.45	₹4,225.00
3,000+	₹7.58	₹22,740.00
6,000+	₹7.14	₹42,840.00

Quantity (min 5, multiples of 5)

5 × ₹13.92

₹69.60

excl. GST

₹82.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW36404DNR

₹69.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Built-in soft-start;Short Circuit Protection;Over-Temperature Protection (OTP)
Operating temperature: -40℃~+85℃
Number of Channels: 1
Type: DC-DC
Output Current: 400mA
Voltage - Input(DC): 2.7V~5.5V
Constant Current Accuracy: 8%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.014 g

Overview

The AW36404 is a low dropout current-sink LED driver supporting both flash and torch modes. An integrated current-regulating sink maintains constant LED current despite variations in input voltage, LED forward voltage, or temperature. LED current is adjustable across 64 levels via single-wire pulses on the EN pin, with a maximum of 400mA. The AW36404 requires only a single MLCC to form a complete peripheral solution. In shutdown mode, all internal circuits are disabled, with power consumption below 1μA. The device operates over an input voltage range of 2.7V~5.5V and a temperature range of -40°C~85°C.
