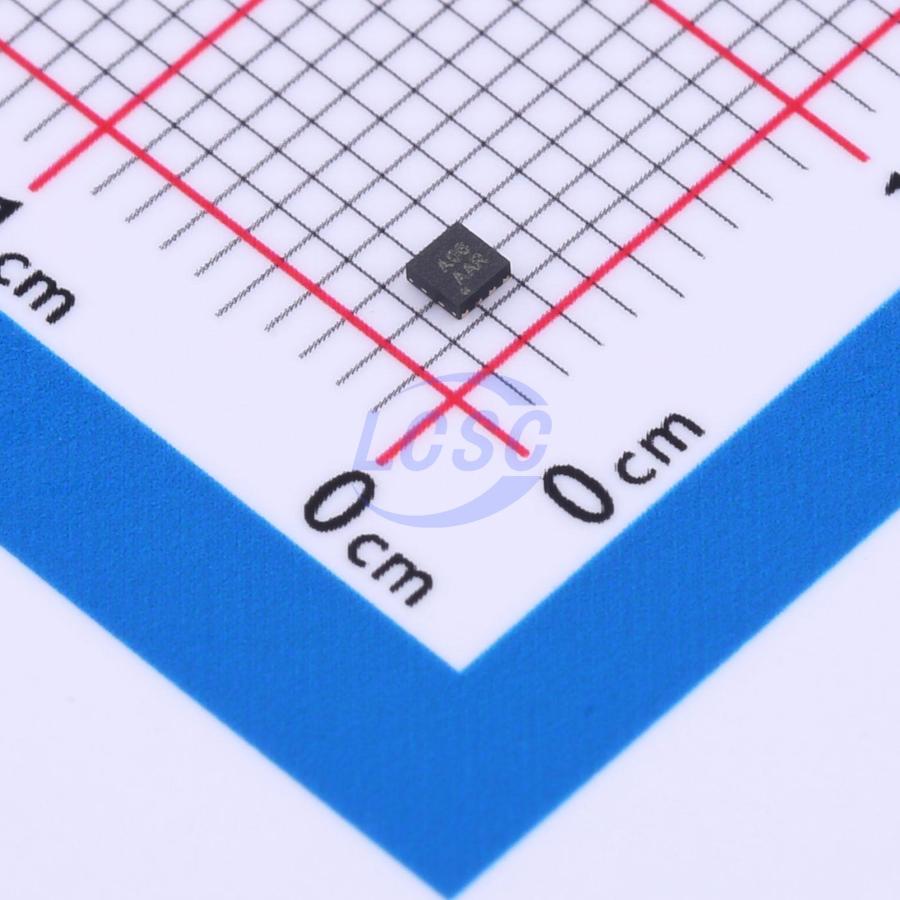

AW36406DNR

The AW36406 is a low voltage-drop current sink LED driver, which supports both flash and torch modes. The current-regulation sink integrated in the chip makes the LED current be capable of keeping constant when input voltage, LED forward voltage or temperature are changing. The LED current can be adjusted by PWM signal into the EN pin, and the maximum value is 600mA. The AW36406 is available in an ultra-small 1.5mm × 1.5mm × 0.55mm DFN-8 package. And only one multi-layer ceramic capacitor is needed for the peripheral of the solution. In shut down mode, the AW36406 turns off all internal circuit and the consumption is less than 1μA. The device requires 2.7V ~ 5.5V input voltage range and an operating temperature range of -40 ~ 85 °C

Applications

• Cell Phone

Key features

• Front Flash LED Driving 600mA Maximum Flash Current
• PWM Dimming Input
• Flash Timeout Protection: 1.2s
• LED Current Accuracy: ±8%
• Low Dropout Voltage: 140mV@600mA (Typ.)
• Efficiency: 94% V1N = 3.6V, VF = 3.4V
• LED Short Protection
• Under Voltage Lock Out (UVLO)
• Over Thermal Protection(OTP)
• Ultra Small 1.5mm x 1.5mm DFN-8 Package
• Compatible with AW36404
