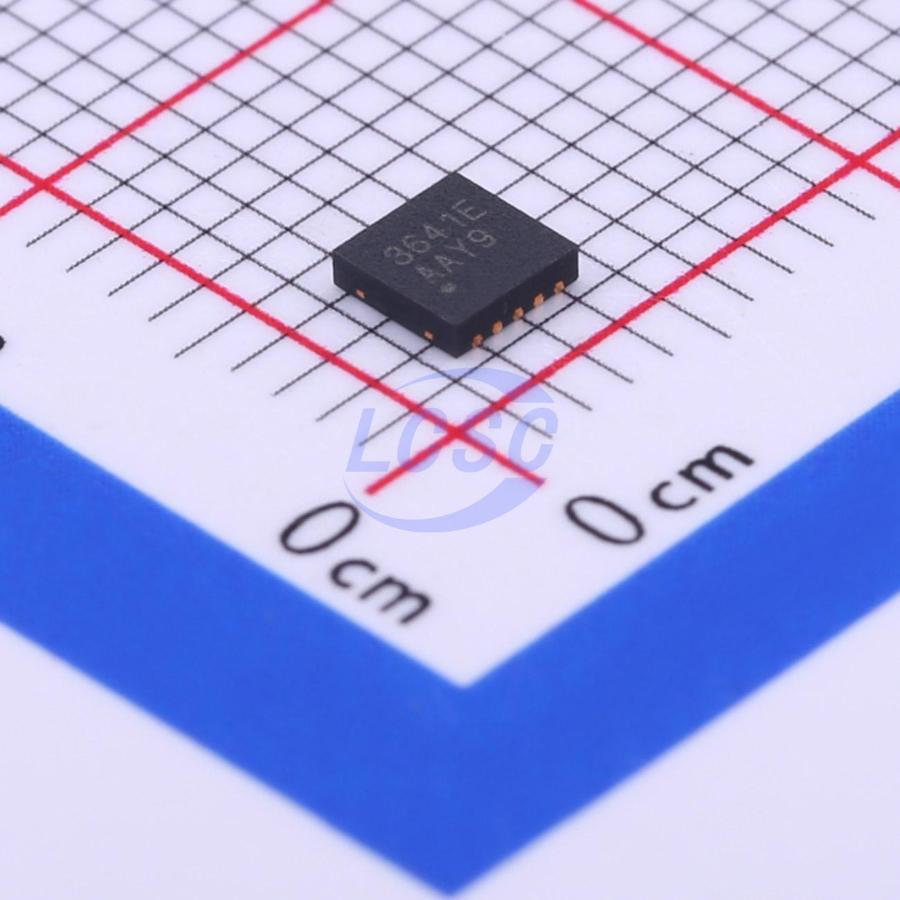

Flash Current & Flash Timer Programmable 1A Flash LED Driver

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW3641EDNR
Store part #: C164096
Package / case: WDFN-10-EP(3x3)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,590 in stock

#C164096

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹20.93	₹104.65
50+	₹16.45	₹822.50
150+	₹14.52	₹2,178.00
500+	₹12.12	₹6,060.00
2,500+	₹11.43	₹28,575.00
6,000+	₹10.78	₹64,680.00

Quantity (min 5, multiples of 5)

5 × ₹20.93

₹104.65

excl. GST

₹123.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 6,000 per reel

AW3641EDNR

₹104.65 for 5 + GST

Specifications

Frequency - Switching: 1.4MHz~2.4MHz
Features: Built-in soft-start;Over-Temperature Protection (OTP);Over Voltage Protection;Short Circuit Protection
Operating temperature: -40℃~+85℃
Number of Channels: 1
Output Current: 1A
Voltage - Input(DC): 2.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.31 g

Overview

A current-regulated charge pump ideal for powering high brightness LEDs for camera flash applications. The charge pump can be set to regulate two current levels for FLASH and TORCH modes. It incorporates a 1-wire interface to program the flash LED current at 8 levels and flash timeout at 2 levels. It supports PWM dimming to adjust the LED brightness during torch application by simply providing a PWM signal to FLASH pin. It features an ultra low RDSON, and automatically switches modes between 1X and 2X, not only ensuring that LED current does not depend on the forward voltage, but also optimizing the efficiency at the whole power supply and load range. It also features an automatic soft-start mode to limit inrush current, as well as over-temperature, over-voltage and short-circuit protection. It is available in a small 3mm*3mm DFN-10L package and is specified over the -40 °C to +85 °C ambient temperature range.

Applications

Mobile Phones
PAD

Key features

Flash LED Current up to 1A Among Full Power Supply Range
8 Flash LED Current Levels Selectable by 1-wire Interface: 100% * IFLASH, 90% * IFLASH……30% * IFLASH
2 Flash Timeout Levels Selectable by 1-wire Interface: 220ms, 1.3s
Ultra low RDSON: 0.4Ω(1X Mode), 2Ω(2X Mode)
PWM Dimming Control in Torch Mode
Automatic 1X/2X Mode Switchover
Up to 92% Efficiency in Torch Mode
Low 47mV Reference for Low Loss Sensing
Built-In Soft Start Limits Inrush Current
Over-Temperature Protection
Over-Voltage and Short-Circuit Protection
Low Ripple and EMI
Available in 3mm*3mm-10L DFN Package
