AWINIC(Shanghai Awinic Tech)

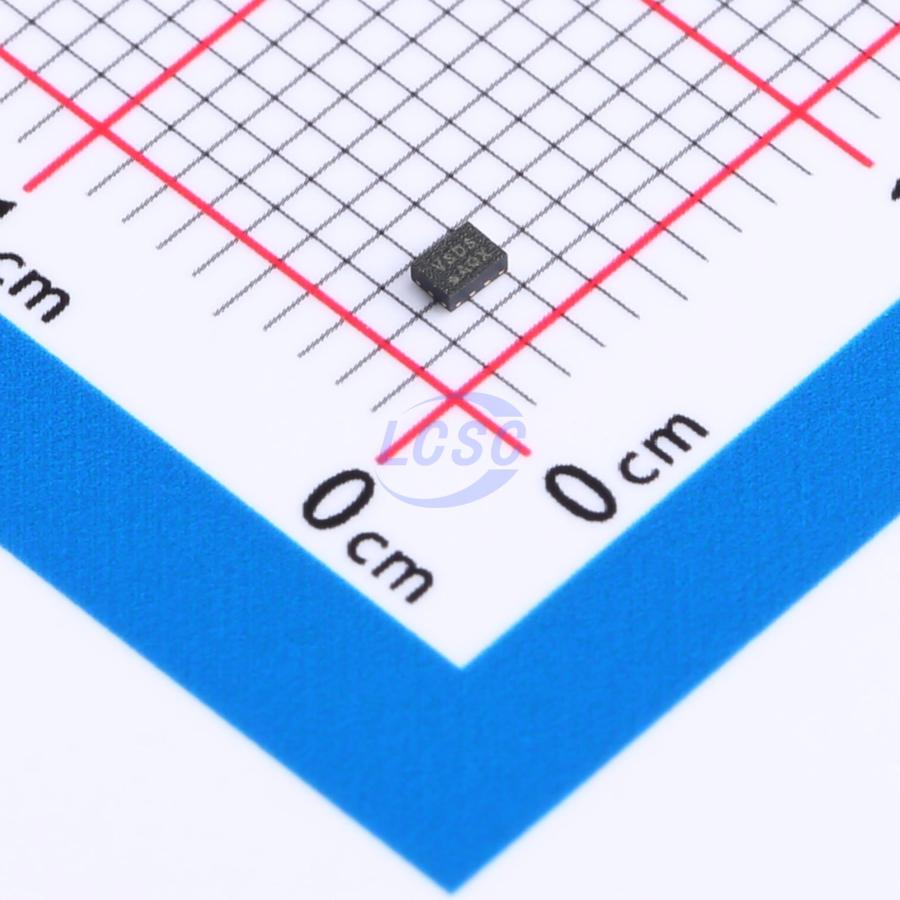

AW36515FCR

2MHz~4MHz 2 Boost DC-DC 2A 2.7V~5.5V FCQFN-10(1.2x1.6) LED Drivers ICs RoHS

FCQFN-10(1.2x1.6)ROHS CompliantActive

High Efficiency, Dual Independent 2A Flash LED Driver

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW36515FCR
Store part #: C2844183
Package / case: FCQFN-10(1.2x1.6)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,380 in stock

#C2844183

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹45.76	₹228.80
50+	₹35.93	₹1,796.50
150+	₹31.71	₹4,756.50
500+	₹26.46	₹13,230.00
3,000+	₹23.34	₹70,020.00
6,000+	₹21.94	₹1,31,640.00

Quantity (min 5, multiples of 5)

5 × ₹45.76

₹228.80

excl. GST

₹269.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW36515FCR

₹228.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Over Voltage Protection;Built-in soft-start;Short Circuit Protection;Over-Temperature Protection (OTP)
Frequency - Switching: 2MHz~4MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 2
Topology: Boost
Type: DC-DC
Output Current: 2A
Constant Current Accuracy: 7%
Voltage - Input(DC): 2.7V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

The AW36515 is a dual LED flash driver that provides a high level of adjustability within a small solution size. The AW36515 utilizes a 2MHz or 4MHz fixed - frequency synchronous boost converter to provide power to the dual 2A constant current LED sources. The dual 256 levels current sources provide the flexibility to adjust the current of LED1 and LED2 in Flash/Torch/IR modes. The AW36515 provides IVFM protection to prevent system reset or shutdown under low battery condition. The AW36515 are controlled via an I2C compatible interface. The main features of the AW36515 include: flash/torch current, flash timeout duration, IVFM and TX interrupt. The AW36515 also provides hardware flash/torch pin (STROBE/TORCH) to control Flash/Torch events. The 2MHz or 4MHz switching frequency options, overvoltage protection (OVP), and adjustable current limit allow for the use of tiny, low - profile inductors and 10μF ceramic capacitors. The device operates over a - 40°C to + 85°C ambient temperature range. The AW36515 is available in small 0.4mm pitch FCQFN 1.6mm×1.2mm - 10l package.

Applications

Smartphone Camera Flash

Key features

Dual Independent and Programmable 2A LED Current Source
Flash: 3.91mA ~ 2.0A, 256 levels 7.83mA/level Torch: 0.98mA ~ 500mA, 256 levels 1.96mA/level
Flash Timeout: 40ms ~ 1.6s, 16 levels
Flash/Torch/IR Mode
Up to 85% Flash Efficiency
Optimized Flash LED Current During Low Battery Conditions (IVFM)
Hardware Flash/Torch Enable (STROBE/TORCH)
Synchronization Input for RF Power Amplifier Pulse Events (TX)
400kHz I²C: AW36515 (I2C Address = 0x63)
0.4mm Pitch, FCQFN - 10L Package
Compatible with AW3643, AW3644, AW36413
