AWINIC(Shanghai Awinic Tech)

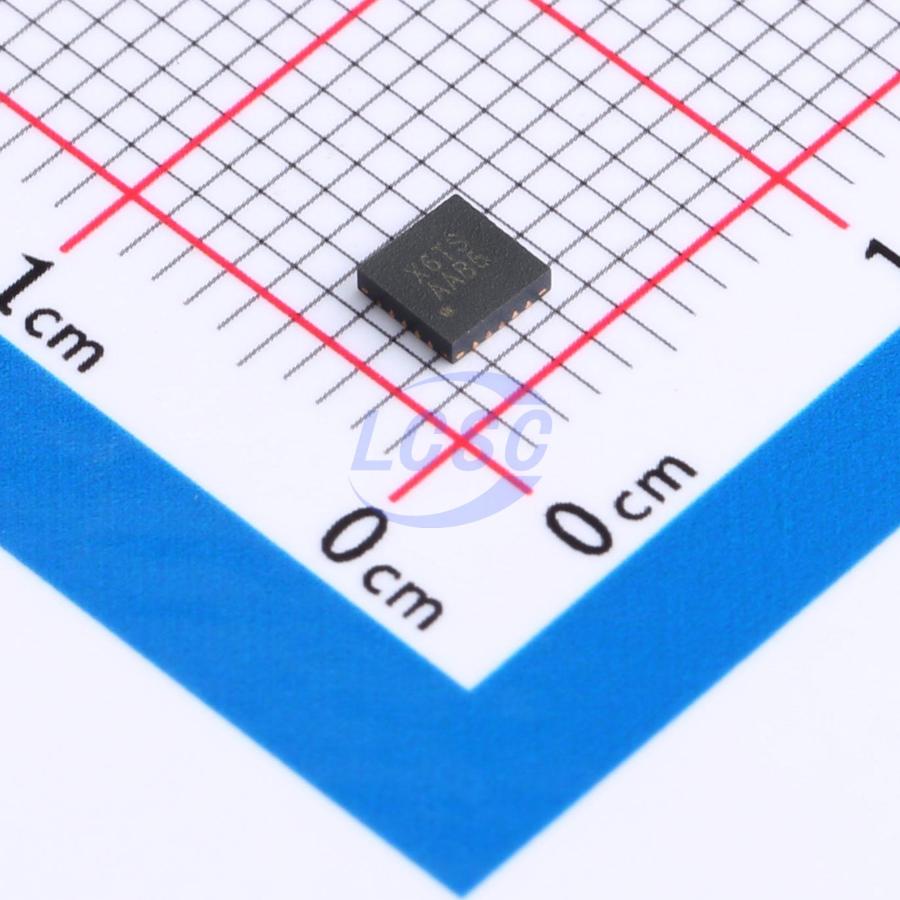

AW9106CQNR

720kHz~880kHz 6 37mA 2.5V~5.5V TQFN-20L-EP(3x3) LED Drivers ICs RoHS

TQFN-20L-EP(3x3)ROHS CompliantActive

6 Multi-Function LED Driver and GPIO Controller with I2C Interface

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW9106CQNR
Store part #: C5162560
Package / case: TQFN-20L-EP(3x3)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,040 in stock

#C5162560

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹50.29	₹251.45
50+	₹39.56	₹1,978.00
150+	₹34.95	₹5,242.50
500+	₹27.94	₹13,970.00
2,500+	₹25.39	₹63,475.00
6,000+	₹23.85	₹1,43,100.00

Quantity (min 5, multiples of 5)

5 × ₹50.29

₹251.45

excl. GST

₹296.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 6,000 per reel

AW9106CQNR

₹251.45 for 5 + GST

Specifications

Features: Keyboard scanning;Cable compensation
Frequency - Switching: 720kHz~880kHz
Operating temperature: -40℃~+85℃
Number of Channels: 6
Output Current: 37mA
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

6 multi-function I/O, each for LED drive (current source dimming) or GPIO mode OUT0~5 support 2 intelligent breathing mode: BLINK and SMART-FADE, breathing time is adjustable Support 256 steps linearity dimming SDA, SCL, SHDN and all GPIO can accept in 1.8V logic input Any GPIO can be configured as an input or an output independently Support interrupt, 8μs deglitch, low-level active Standard I2C interface, AD1/AD0 select I2C device address Support shutdown function, low level effective 2.5V~5.5V power supply TQFN 3mmX3mmX0.75mm-20L Package AW9106C is a 6-channel LED controller with I2C interface. Each channel can be used for GPIO. LED dimming combined with extended GPIO function, which can give full play to the application value of single chip. AW9106C configures the current level to realize 256 steps linear dimming with I2C interface. The default IMAX current is 37mA. When OUTx works in a GPIO input mode, AW9106C detected input state to occur interrupt with internal 8μs debounce. AW9106C supports two intelligent breathing modes: BLINK mode and SMART-FADE mode. BLINK mode allows LED automatic to flash periodically according the setting time parameter. AW9106C is available in TQFN 3mmX3mmX 0.75mm-20L package. The operating voltage range is 2.5V~5.5V.

Applications

Mobile Phones/ Portable Media Player
Home Appliances

Key features

6 multi-function I/O, each for LED drive (current source dimming) or GPIO mode
OUT0~5 support 2 intelligent breathing mode: BLINK and SMART-FADE, breathing time is adjustable
Support 256 steps linearity dimming
SDA, SCL, SHDN and all GPIO can accept in 1.8V logic input
Any GPIO can be configured as an input or an output independently
Support interrupt, 8μs deglitch, low-level active
Standard I2C interface, AD1/AD0 select I2C device address
Support shutdown function, low level effective
2.5V~5.5V power supply
TQFN 3mmX3mmX0.75mm-20L Package
