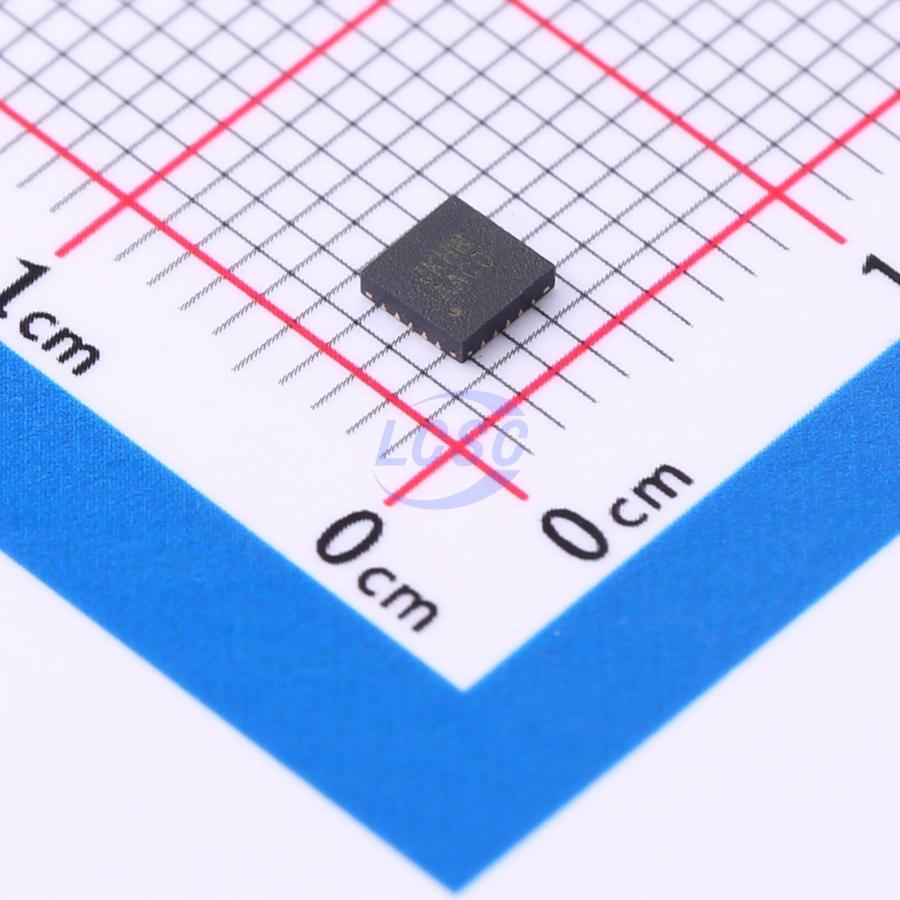

AWINIC(Shanghai Awinic Tech)

AW9110CQNR

800kHz 10 37mA 2.5V~5.5V WBQFN-20-EP(3x3) LED Drivers ICs RoHS

WBQFN-20-EP(3x3)ROHS CompliantActive

10-Channel LED Driver and GPIO Controller

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW9110CQNR
Store part #: C2943134
Package / case: WBQFN-20-EP(3x3)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,395 in stock

#C2943134

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹51.93	₹51.93
10+	₹42.15	₹421.50
30+	₹37.81	₹1,134.30
100+	₹32.60	₹3,260.00
500+	₹29.77	₹14,885.00
1,000+	₹28.47	₹28,470.00

Quantity (min 1)

1 × ₹51.93

₹51.93

excl. GST

₹61.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 6,000 per reel

AW9110CQNR

₹51.93 for 1 + GST

Specifications

Features: Keyboard scanning
Frequency - Switching: 800kHz
Operating temperature: -40℃~+85℃
Number of Channels: 10
Output Current: 37mA
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

AW9110CQNR is a 10-channel LED controller with I2C interface. Each channel can be used for GPIO. LED dimming combined with extended GPIO function, which can give full play to the application value of single chip. AW9110CQNR configures the current level to realize 256 steps linear dimming with |2 complement interface. The default IMAX current is 37 mA. When OUTx (x = 0~9) works in a GPIO input mode, AW9110C detected input state to occur interrupt with internal 8 μs debounce. AW9110CQNR supports two intelligent breathing modes: BLINK mode and SMART-FADE mode. BLINK mode allows LED automatic to flash periodically according the setting time parameter. OUT0~OUT5 support intelligent breathing mode. AW9110CQNR is available in WBQFN 3X3-20L0.75 package. The operating voltage range is 2.5 V~5.5 V. AW9110C is a 10 channel co-anode current breathing led driver. There is 256 current levels configurable via register DIM0~DIM9. The maximum driver current IMAX is 37 mA. The LED drivers and GPIO functions can be switch with configuring register P0WKMD/P1WKMD. The default status of OUT0~OUT9 are used for GPIO function. AW9110C supports two types of intelligent breathing modes: BLINK and SMART-FADE. In BLINK mode, AW9110C completes "fade-on" and "fade-off" breathing periodically. In SMART-FADE mode, AW9110C runs "fade-on" and "fade-off" independently with register P0DO/ P1DO configuration.

Applications

Mobile Phones/ Portable Media Player
Home Appliances

Key features

10-channel LED constant-current driver, each channel can be used for GPIO
OUT0~OUT5 support 2 intelligent breathing mode: BLINK and SMART-FADE, breathing time is adjustable
Support 256 steps linearity dimming, IMAX is 37mA
Support GPIO input/output mode
GPIO input mode, internal 8 μs debounce
Compatible |2 complement Interface, VIO: 1.8V~3.3V
I2C address: 0x58/0x59/0x5A/0x5B
Support shutdown function, low level effective
Simple Voltage Range VCC: 2.5V~5.5V
WBQFN 3X3-20L-0.75 Package
