AWINIC(Shanghai Awinic Tech)

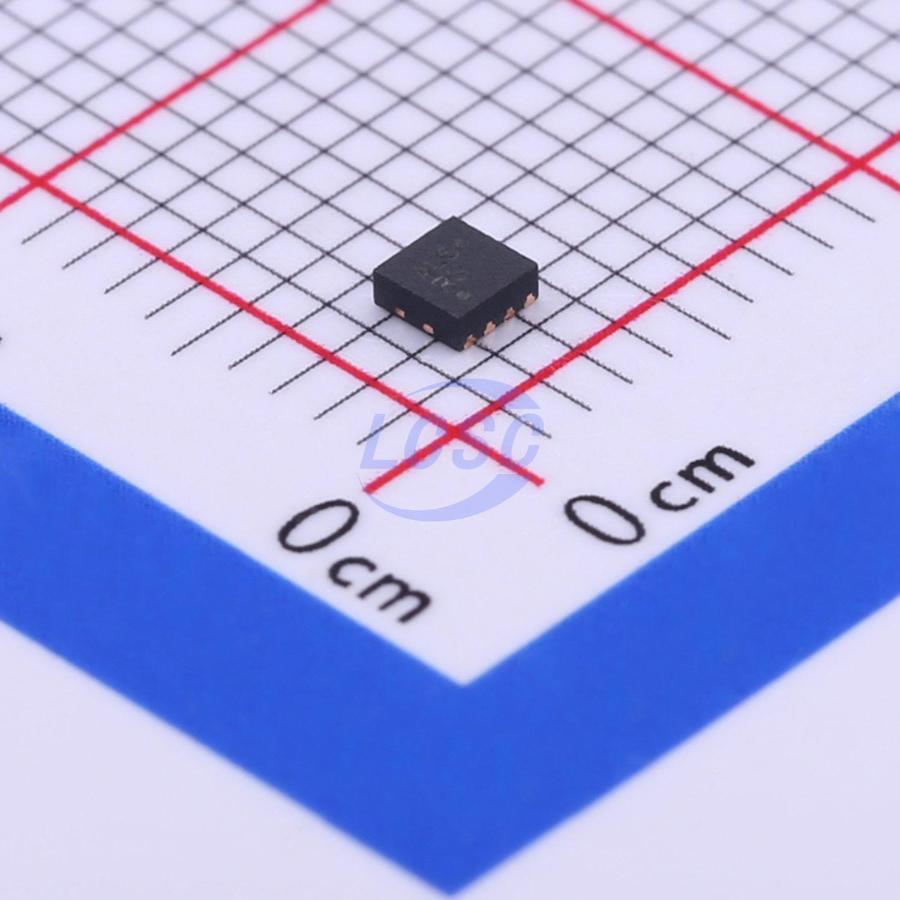

AW9364DNR

4 20mA 2.8V~5.5V DFN-8-EP(2x2) LED Drivers ICs RoHS

DFN-8-EP(2x2)ROHS CompliantActive

4-Channel 1-wire Dimming LED Driver with Ultra Low Dropout Current Source

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW9364DNR
Store part #: C401007
Package / case: DFN-8-EP(2x2)
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19,500 in stock

#C401007

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹27.73	₹138.65
50+	₹21.64	₹1,082.00
150+	₹19.02	₹2,853.00
500+	₹15.77	₹7,885.00
3,000+	₹14.18	₹42,540.00
6,000+	₹13.31	₹79,860.00

Quantity (min 5, multiples of 5)

5 × ₹27.73

₹138.65

excl. GST

₹163.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW9364DNR

₹138.65 for 5 + GST

Specifications

Features: Over-Temperature Protection (OTP)
Operating temperature: -40℃~+85℃
Number of Channels: 4
Output Current: 20mA
Constant Current Accuracy: 1%
Voltage - Input(DC): 2.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.074 g

Overview

The AW9364 is a 4-channel ultra low dropout constant-source parallel LED driver. With the proprietary Q-Mirror™ technique, the AW9364 uses an internal resistor to set the bias current for four LEDs, which are matched to ±1%. The AW9364 incorporates a single wire interface to program the output current at 16 continuous steps. The AW9364 has an internal deglitch circuit for filtering the noise of the EN input. The AW9364 requires only a 40mV dropout voltage at a 20mA load. The feature makes AW9364 ideal for battery-operated systems, such as personal digital assistants. The AW9364 is available in DFN2x2-8L packages and is specified over the -40°C to +85°C temperature range.
