TECH PUBLICDatasheet (PDF)

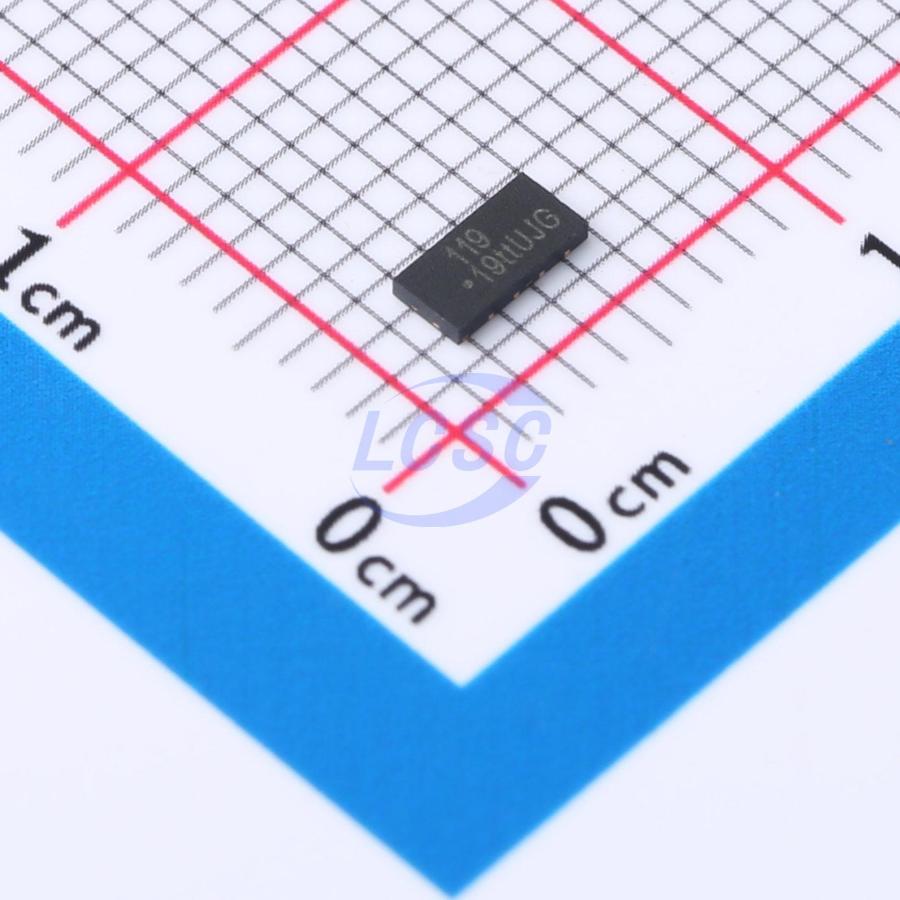

AZ1065-06F
10VC 16VC Clamp 4A@8/20us Ipp TVS DIODE DFN-10(2x4.1)
DFN-10(2x4.1)RoHSActive
TVS DIODE 5VWM 10VC 16VC DFN-10(2x4.1)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AZ1065-06F
- Store part #
- C18197831
- Package / case
- DFN-10(2x4.1)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,090 in stock
#C18197831
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.95 | ₹74.75 |
| 50+ | ₹11.81 | ₹590.50 |
| 150+ | ₹10.25 | ₹1,537.50 |
| 500+ | ₹9.08 | ₹4,540.00 |
| 3,000+ | ₹8.14 | ₹24,420.00 |
| 6,000+ | ₹7.66 | ₹45,960.00 |
5 × ₹14.95
₹74.75
excl. GST
₹88.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZ1065-06F
₹74.75 for 5 + GST
Specifications
- Clamping Voltage
- 10V;16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- 6
- Voltage - Breakdown
- 9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
Applications
- USB3.0
- HDMI 1.4 High - Speed Data Lines
Key features
- Ultralow capacitance: 0.3pF typical
- Ultralow leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test: Air discharge: ±20 kV, Contact discharge: ±20 kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant
