TECH PUBLICDatasheet (PDF)

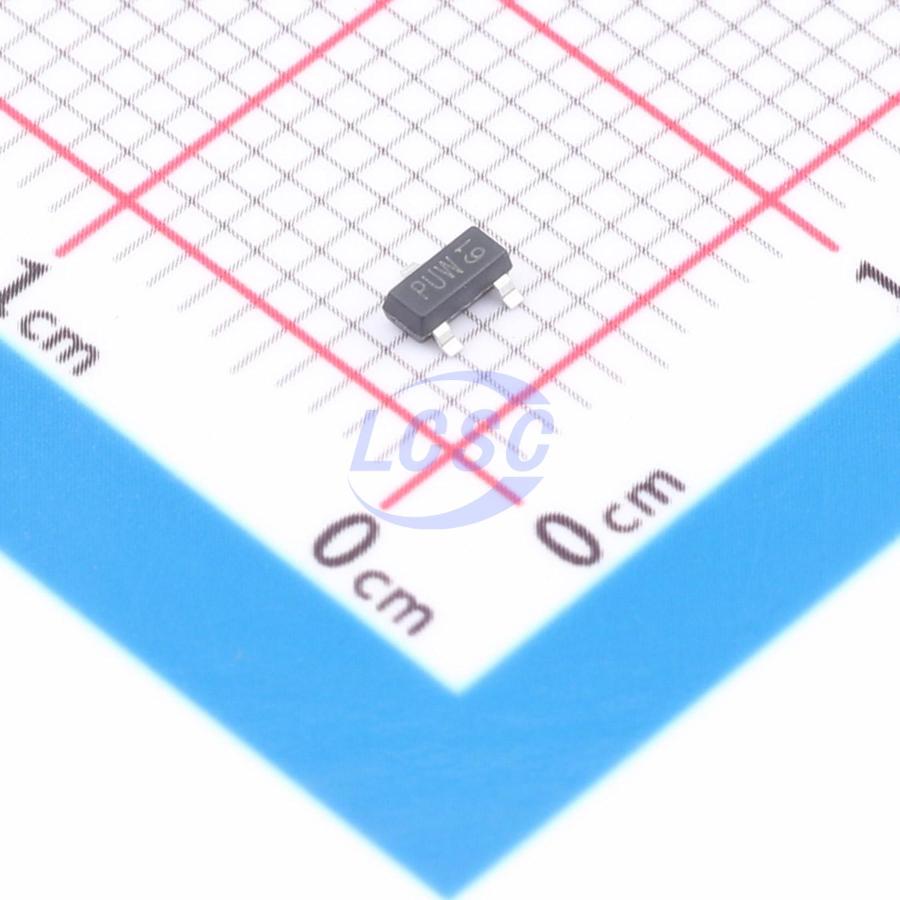

AZ23B18-TP
1 Pair Common Anode 17.6V~18.4V 18V SOT-23 Single Zener Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AZ23B18-TP
- Store part #
- C55191120
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C55191120
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.43 | ₹64.30 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.86 | ₹11,580.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.43
₹64.30
excl. GST
₹75.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZ23B18-TP
₹64.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Pair Common Anode
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@12.6V
- Impedance(Zzt)
- 45Ω
- Zener Voltage(Range)
- 17.6V~18.4V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 225Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
