JSCJDatasheet (PDF)

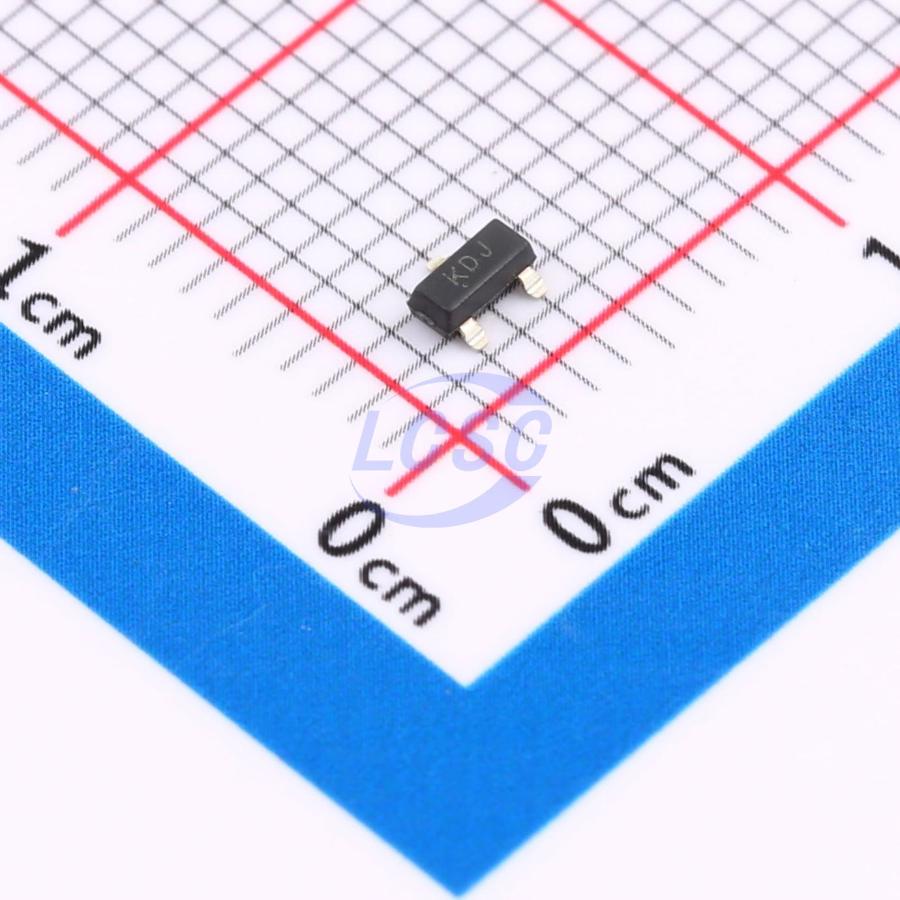

AZ23C15
Zener Diode Array 1 Pair Common Anode 13.8V~15.6V 300mW Surface Mount SOT-23
SOT-23ROHS CompliantActive
DIODE ARR ZENER 13.8V~15.6V 300mW SOT-23
- Manufacturer
- JSCJ
- Manufacturer part #
- AZ23C15
- Store part #
- C53366
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,220 in stock
#C53366
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.68 | ₹93.60 |
| 200+ | ₹3.64 | ₹728.00 |
| 600+ | ₹3.07 | ₹1,842.00 |
| 3,000+ | ₹2.73 | ₹8,190.00 |
| 9,000+ | ₹2.43 | ₹21,870.00 |
| 21,000+ | ₹2.28 | ₹47,880.00 |
20 × ₹4.68
₹93.60
excl. GST
₹110.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZ23C15
₹93.60 for 20 + GST
Specifications
- Diode Configuration
- 1 Pair Common Anode
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@11V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 13.8V~15.6V
- Impedance(Zzk)
- 110Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.036 g
