DIODESDatasheet (PDF)

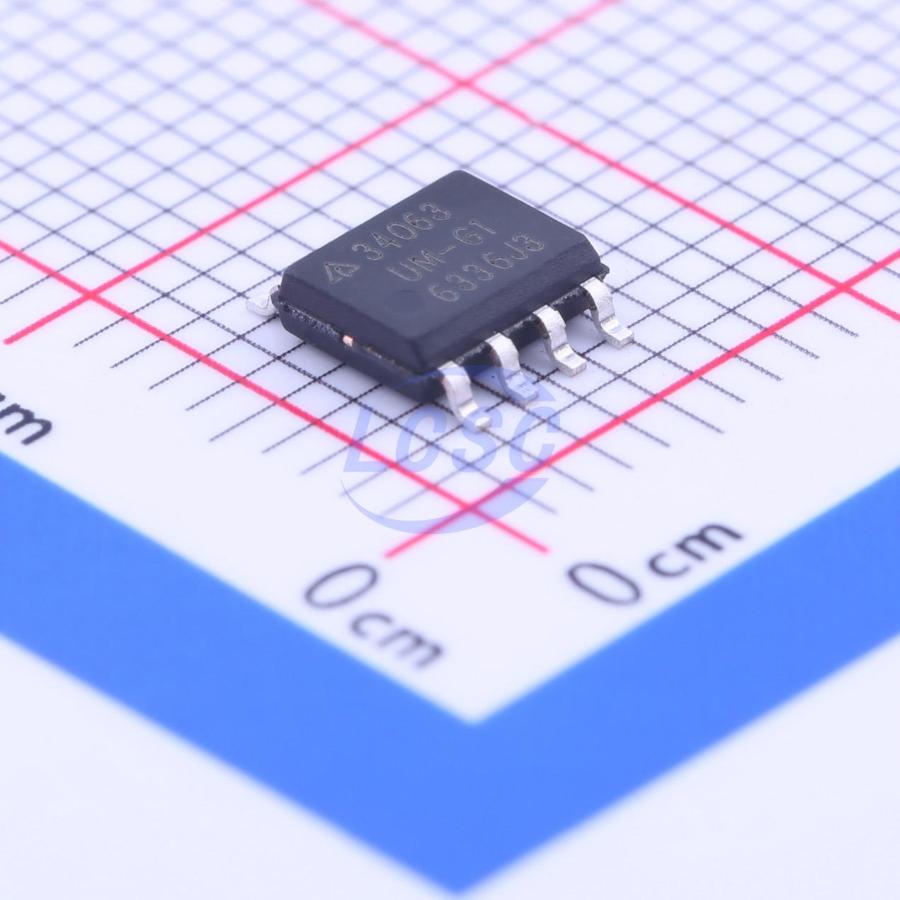

AZ34063UMTR-G1
30kHz~45kHz Buck-Boost Adjustable 1.5A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
1.5A STEP - DOWN/STEP - UP/INVERTING DC - DC CONVERTER
- Manufacturer
- DIODES
- Manufacturer part #
- AZ34063UMTR-G1
- Store part #
- C99659
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60,150 in stock
#C99659
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.37 | ₹106.85 |
| 50+ | ₹16.99 | ₹849.50 |
| 150+ | ₹15.11 | ₹2,266.50 |
| 500+ | ₹12.75 | ₹6,375.00 |
| 2,500+ | ₹10.90 | ₹27,250.00 |
| 4,000+ | ₹10.28 | ₹41,120.00 |
5 × ₹21.37
₹106.85
excl. GST
₹126.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AZ34063UMTR-G1
₹106.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 30kHz~45kHz
- Function
- Buck-Boost
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck-Boost;Inverting
- Operating Voltage
- 3V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
The AZ34063U is a monolithic, switching regulator, control circuit which contains the primary functions required for DC-DC converters. This device consists of an internal temperature compensated reference, voltage comparator, controlled duty-cycle oscillator with active current-limit circuit, driver, and high-current output switch. The AZ34063U is specifically designed as a general DC-DC converter to be used in Step-Down, Step-Up, and Voltage-Inverting applications with a minimum number of external components. The AZ34063U is available in two packages: SO-8 and PDIP-8.
Applications
- Battery Chargers
- ADSL Modems
- Hubs Negative Voltage Power Supplies
Key features
- Operation from 3.0V to 36V Input
- Low Standby Current
- Current Limiting
- Output Switch Current to 1.5A
- Output Voltage Adjustable
- Operation Frequency up to 180kHz
- Precision 2% Reference
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
