DIODESDatasheet (PDF)

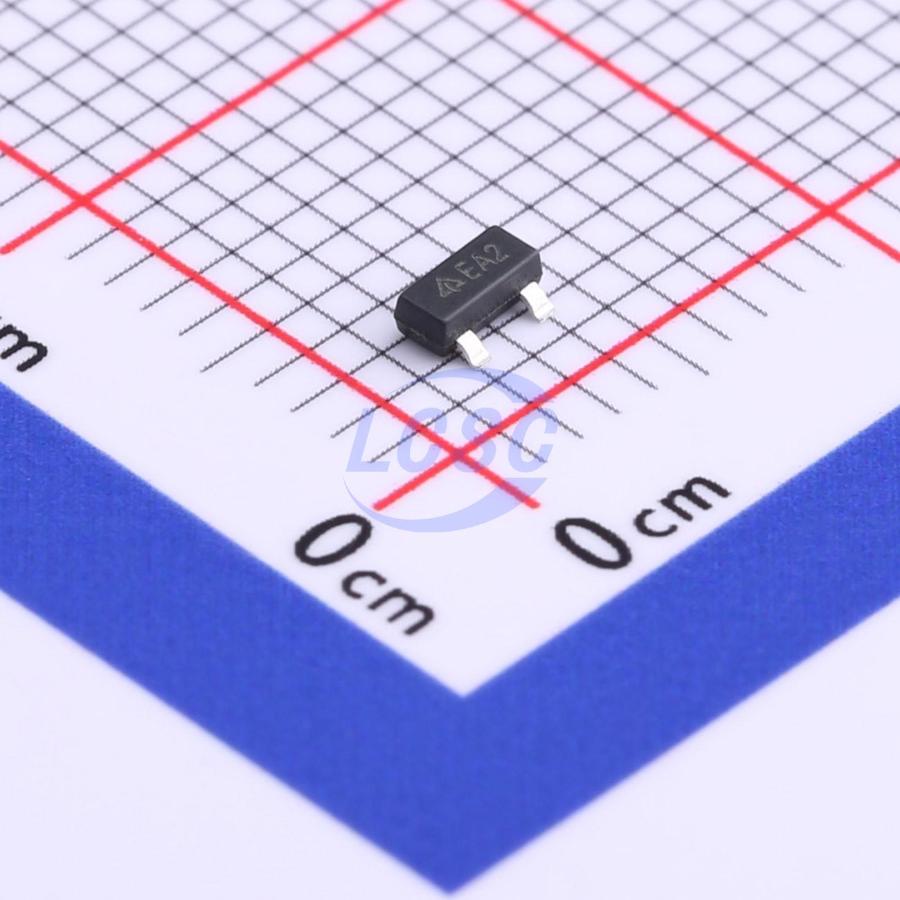

AZ431BN-ATRE1
2.5V~36V ±0.8% 2.5V~36V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Adjustable Precision Shunt Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AZ431BN-ATRE1
- Store part #
- C92572
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,230 in stock
#C92572
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.81 | ₹68.10 |
| 100+ | ₹5.44 | ₹544.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 3,000+ | ₹4.23 | ₹12,690.00 |
| 6,000+ | ₹3.82 | ₹22,920.00 |
| 9,000+ | ₹3.63 | ₹32,670.00 |
10 × ₹6.81
₹68.10
excl. GST
₹80.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AZ431BN-ATRE1
₹68.10 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±0.8%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.05 g
Overview
The AZ431-A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of AZ431-A can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The AZ431-A precision reference is offered in two voltage tolerance: 0.4% and 0.8%. This IC is available in 3 packages: TO92 (Bulk or Ammo Packing), SOT23 and SOT89.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Graphic Card
- Precision Voltage Reference
Key features
- Programmable Precise Output Voltage from 2.5V to 36V
- High Stability under Capacitive Load
- Low Temperature Deviation: 4.5mV Typical
- Low Equivalent Full-range Temperature Coefficient with 20PPM/°C Typical
- Sink Current Capacity from 1mA to 100mA
- Low Output Noise
- Wide Operating Range of -40 to +125°C
- Lead-Free Packages: TO92, SOT23, SOT89 Totally Lead-Free; RoHS Compliant
- Lead-Free Packages, Available in “Green” Molding Compound: TO92, SOT23
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AS431ANTR-G1#C138467DIODES · SOT-23 | DIODES | SOT-23 | 25,375 | ₹17.41 · 25,375 in stock | View |
 | TL431G-AE2-R#C71129UTC · SOT-23-3 | UTC | SOT-23-3 | 38,160 | ₹5.66 · 38,160 in stock | View |
 | HT431AN#C41374777UNI-SEMIC · SOT-23-3 | UNI-SEMIC | SOT-23-3 | 860 | ₹11.72 · 860 in stock | View |
 | TL431#C42432485PAKER · SOT-23 | PAKER | SOT-23 | 280 | ₹3.88 · 280 in stock | View |
 | AZ431AN-ATRG1#C92573DIODES · SOT-23 | DIODES | SOT-23 | 2,08,680 | ₹7.66 · 2,08,680 in stock | View |
