DIODES

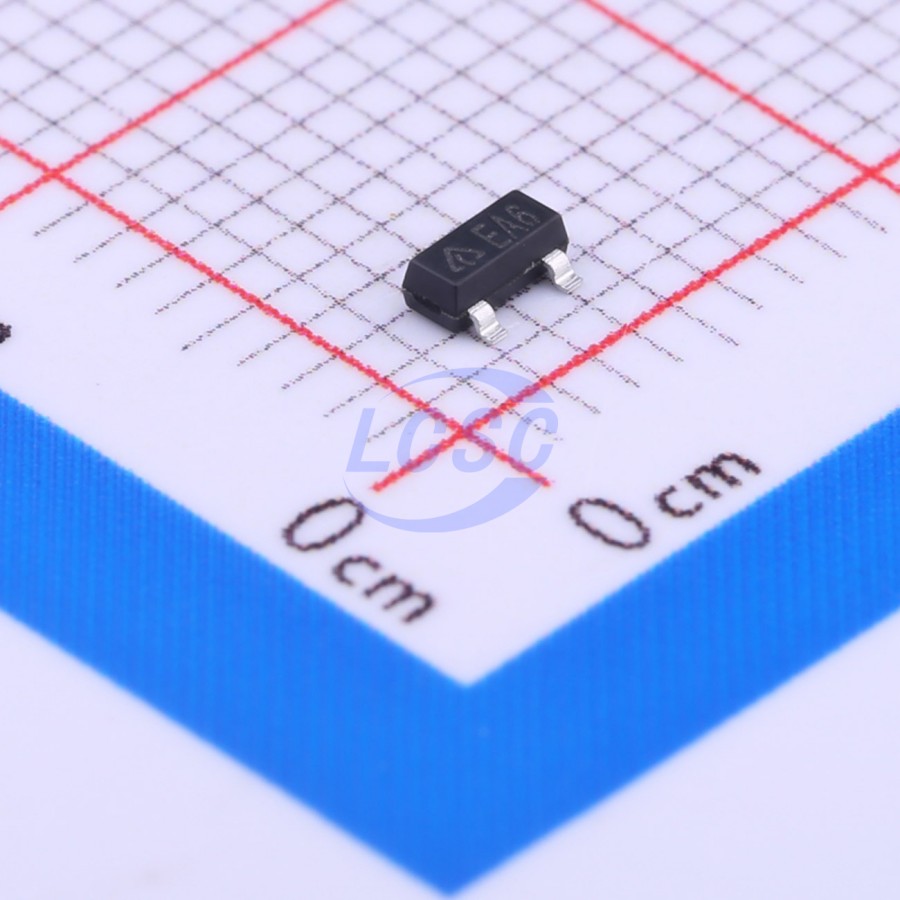

AZ431LANTR-E1

1.24V~18V ±0.5% 100mA Adjustable SOT-23 Voltage Reference RoHS

SOT-23ROHS3 CompliantActive

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATOR

Manufacturer: DIODES
Manufacturer part #: AZ431LANTR-E1
Store part #: C115253
Package / case: SOT-23
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

93,465 in stock

#C115253

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.49	₹67.45
50+	₹10.85	₹542.50
150+	₹9.53	₹1,429.50
500+	₹8.53	₹4,265.00
3,000+	₹6.82	₹20,460.00
6,000+	₹6.42	₹38,520.00

Quantity (min 5, multiples of 5)

5 × ₹13.49

₹67.45

excl. GST

₹79.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AZ431LANTR-E1

₹67.45 for 5 + GST

Specifications

Output Voltage: 1.24V~18V
Tolerance: ±0.5%
Minimum Cathode Current for Regulation: 80uA
Reference Type: Parallel
Output Current: 100mA
Operating Temperature: -40℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.166 g

Overview

The AZ431L series ICs are low- voltage three- terminal adjustable regulators with guaranteed thermal stability over a full operation range. These ICs feature sharp turn- on characteristics, low temperature coefficient and low output impedance, which make them ideal substitutes for zener diodes in applications such as switching power supply, charger, motherboard and other adjustable regulators. The output voltage can be set to any value between 1.24V and 18V with two external resistors. The AZ431L precision reference is offered in two voltage tolerance: 0.5% and 1.0% These ICs are available in 4 packages: TO92 (Ammo Packing), SOT23, SOT25 and SOT89.

Applications

Graphic cards
PC motherboards
Voltage adapters
Switching power supplies
Chargers

Key features

Wide Programmable Precise Output Voltage from 1.24V to 18V
High Stability under Capacitive Load
Low Temperature Deviation: 3mV Typical
Low Equivalent Full- Range Temperature Coefficient: 20PPM/°C Typical
Low Dynamic Output Resistance: 0.05Ω Typical
High Sink Current Capacity from 0.1mA to 100mA
Low Output Noise
Wide Operating Range of - 40 to +125°C
Lead- Free Package: SOT23 - Totally Lead- Free; RoHS Compliant
Lead- Free Packages, Available in "Green" Molding Compound: TO92 (Ammo Packing), SOT23, SOT25, SOT89 - Totally Lead- Free & Fully RoHS Compliant - Halogen and Antimony Free. "Green" Device
