TECH PUBLIC

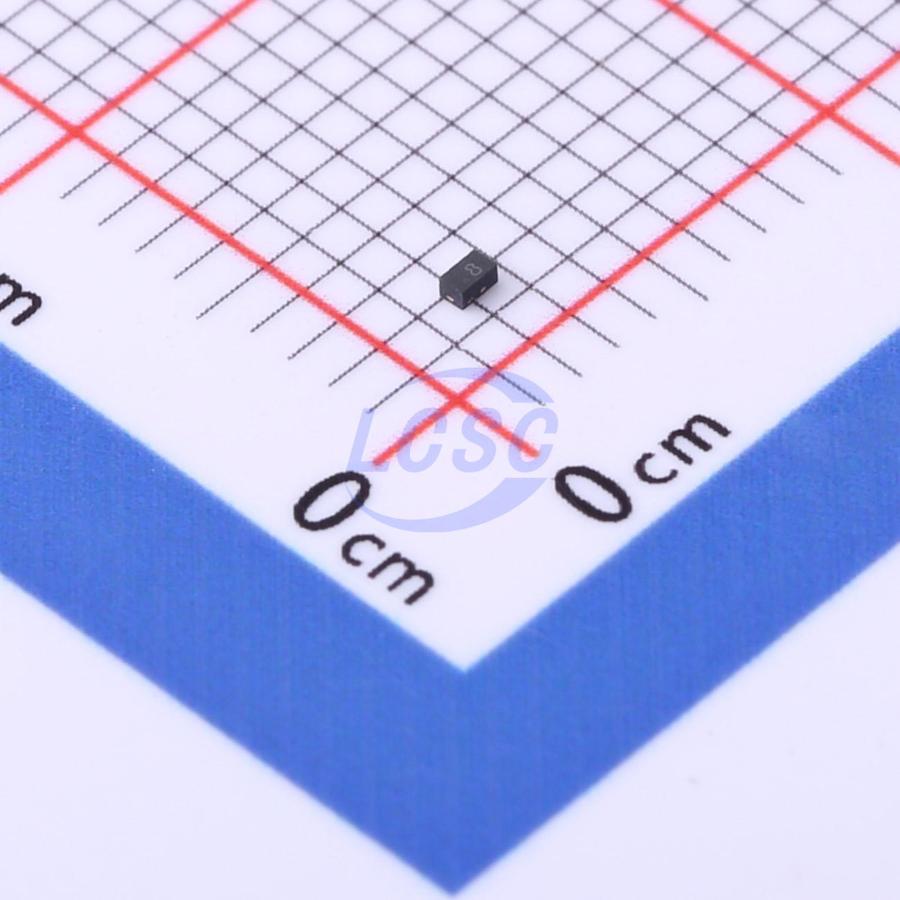

AZ5725-01F-P

15VC Clamp 7A@8/20us Ipp DFN1006-2

DFN1006-2RoHSActive

5VWM 15VC DFN1006-2

Manufacturer: TECH PUBLIC
Manufacturer part #: AZ5725-01F-P
Store part #: C2844714
Package / case: DFN1006-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,740 in stock

#C2844714

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
20+	₹1.65	₹33.00
200+	₹1.63	₹326.00
600+	₹1.60	₹960.00
2,000+	₹1.57	₹3,140.00

Quantity (min 20, multiples of 20)

20 × ₹1.65

₹33.00

excl. GST

₹38.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 12,000 per reel

AZ5725-01F-P

₹33.00 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Peak Pulse Current (Ipp): 7A@8/20us
Peak Pulse Power Dissipation (Ppp): 75W@8/20us
Voltage - Breakdown: 5.8V
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 12,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.008 g
